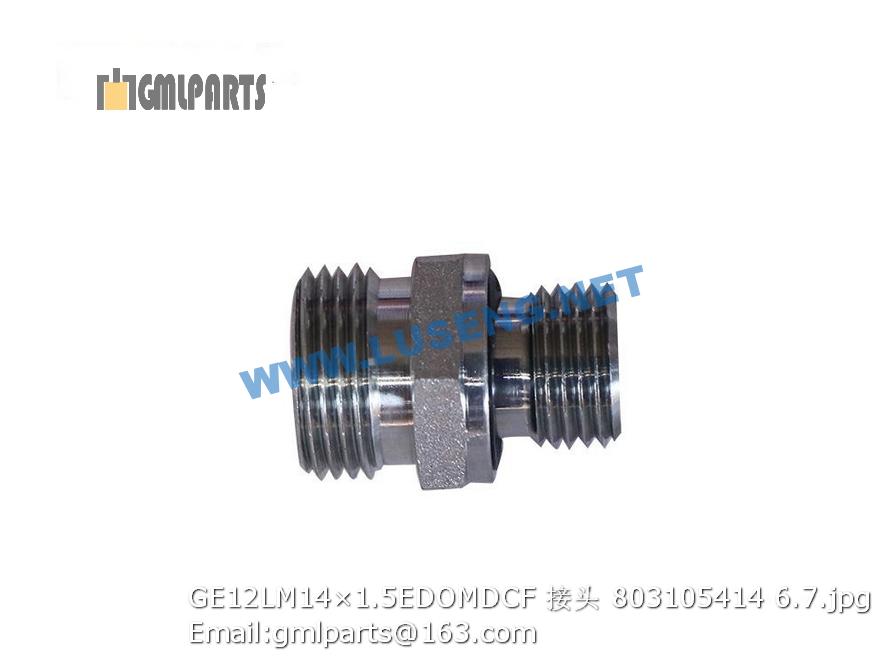

803105414 GE12LM14×1.5EDOMDCF JOINT
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲800302351-0001 防尘罩 Dustproof sheath 1
2 ▲800302351-0100 软轴和控制器 Soft Shaft 1
3 ▲800302351-0002 底板 Braket 1
4 ▲800302351-0003 垫圈 8 Washer 4
5 ▲800302351-0004 螺栓 M8X20 Bolt 4
1 ▲800302351-0101 控制器 Control handle 1
2 ▲800302351-0102 垫圈 10 Washer 1
3 ▲800302351-0103 双头螺栓 Bolt 1
4 ▲800302351-0104 垫圈 8 Washer 4
5 ▲800302351-0105 锁紧螺母 Nut 1
6 ▲800302351-0106 专用螺栓 Bolt 3
7 ▲800302351-0107 隔套 Sherth 3
8 ▲800302351-0108 锁紧螺母 Nut 3
9 ▲800302351-0109 选档软轴 Soft Shaft 1
10 ▲800302351-0110 换档软轴 Soft Shaft 1
1 ▲800302337-0100 控制器 Control handle 1
2 ▲800302337-0001 制动软轴 Soft Shaft 1
1 ▲800302337-0101 揿柄 Botton 1
2 ▲800302337-0102 螺母 Nut 1
3 ▲800302337-0103 手柄套 Rubber pedal 1
4 ▲800302337-0104 弹簧 Spring 1
5 ▲800302337-0105 推杆 Pole 1
6 ▲800302337-0106 挡圈 12 Snap ring 1
7 ▲800302337-0107 挡圈 10 Snap ring 2
8 ▲800302337-0108 垫圈 12 Washer 1
9 ▲800302337-0109 垫圈 10 Washer 2
10 ▲800302337-0110 棘轮支架 Braket 1
11 ▲800302337-0111 销轴 12X43 Pin 1
12 ▲800302337-0112 销轴 10X43 Pin 1
13 ▲800302337-0113 导轮 Guide wheel 1
14 ▲800302337-0114 垫圈 5 Washer 1
15 ▲800302337-0115 开口销 1.6X16 Pin 1
16 ▲800302337-0116 销轴 10X35 Pin 1
17 ▲800302337-0117 棘爪 Pallet 1
18 ▲800302337-0118 锁紧螺母 M10 Nut 2
19 ▲800302337-0119 导轮 Guide wheel 1
20 ▲800302337-0120 手柄压盖 Cap 1
21 ▲800302337-0121 螺栓 M10X35 Bolt 2
22 ▲800302337-0122 操纵手柄 Operating lever 1
