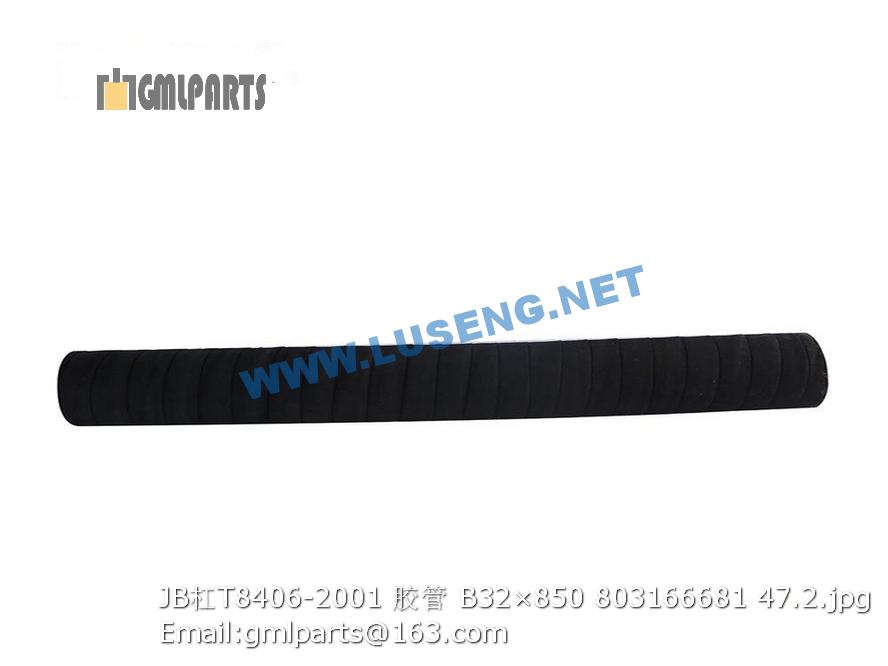

803166681 JB/T8406-2001 HOSE B32×850
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲225701587-041201 惰轮轴 idler shaft 1 1701481-1100B
2 ▲225701587-041202 垫圈-倒惰齿轮滚针轴承 Washer-reversing idler needle bearing 1 1701487-1100
3 ▲225701587-041203 隔套-倒惰齿轮滚针轴承 spacer tube-reversing idler needle bearing 1 1701486-1100
4 ▲225701587-041204 倒车惰轮 reversing idler 1 1701482-1100
5 ▲225701587-041205 滚针轴承-倒车惰轮 needle bearing- reversing idler 2 K42 54 42
6 ▲225701587-041206 O形圈 O-shaped packing 2 Q7343142B
7 ▲225701587-041207 锁片-倒档轴 retain lock-for reversing gear 1 1701489-950
8 ▲225701587-041208 螺栓-紧固锁片用 bolt-to fasten the retain lock 1 CQ1500816
9 ▲225701587-041209 弹簧垫圈 spring washer 1 Q40308
1 ▲225701587-040101 突缘叉 Edge fork 2 B-2003-01
2 ▲225701587-040102 卡簧 Spring 8 GB/T893.1-1986
3 ▲225701587-040103 万向节叉 Gimbal fork 1 500K.03.2-03
4 ▲225701587-040104 轴管 Shaft pipe 1 B-2003-02
5 ▲225701587-040105 油杯 Nipple 1 JB/T940.1-1995
6 ▲225701587-040106 花键套 Spline sleeve 1 Z50G.5C-05A
7 ▲225701587-040107 防尘罩 Cover 1 500K.03.3-02A
8 ▲225701587-040108 叉轴 Fork shaft 1 500K.03.3-04A
9 ▲225701587-040109 万向节总成 Gimbal assembly 2 EQ153
1 225701045 刹车支架 Brake bracket 1
2 805300014 垫圈 10 Washer 8 GB/T93-1987
3 805000278 螺栓 M10×55 Bolt 8 GB/T 5783-2000
4 225701046 刹车鼓 Brake drum 1
5 805002260 螺柱 M14X75 Double-screw bolt 8
6 805301376 垫圈14 Washer 14 8
7 805201504 螺母 M14 Nut 8 GB/T 889.1-2000
8 805100142 螺钉 M10×45 Bolt 2
9 805300062 垫圈10 Lock Washer 2 GB859-87
10 225701047 摇臂 Rocker 1
11 805600368 销 B10×35 Pin shaft 1 GB/T882-1986
12 225701048 叉接头总成 Fork connector 1
13 225701049 铜套 Copper sleeve 1
14 805600006 销4×30 Pin 2
15 801100340 油杯M6×1 grease cup 1
16 805300013 垫圈16 Washer 2 GB/T 97.1-2002
17 805600026 开口销3.2X25 Split pin 2
18 805300113 垫圈12 Washer 1 GB/T96.1-2002
19 805300018 垫圈12 washer 12 1 GB/T93-1987
20 805200049 螺母 M12 Nut 1 GB/T6170-2000
21 805600313 销轴 B10X45 Pin shaft 1
22 225701050 刹车压板 Brake plate 2
23 805601665 销轴 B12X15 Pin shaft 1
24 805300020 垫圈12 Washer 1 GB/T97.1-2002
25 225701051 弹簧 Spring 2
26 805200053 螺母 M6 Nut M6 2
27 225701052 螺栓 Bolt 1
28 225701053 刹车带 Brake cingulum 1
29 225701054 螺母 Nut 1
30 225701055 拉紧螺丝 Bolt 1
31 805601693 销轴 Pin shaft 2
32 225701056 弹簧 Spring 1
33 805000020 螺栓 M8×30 Bolt 1 GB/T5783-2000
34 805601605 销轴 A16X45 Pin shaft 1
35 800901307 膜片式弹簧制动器 Spring detent 1
