Description

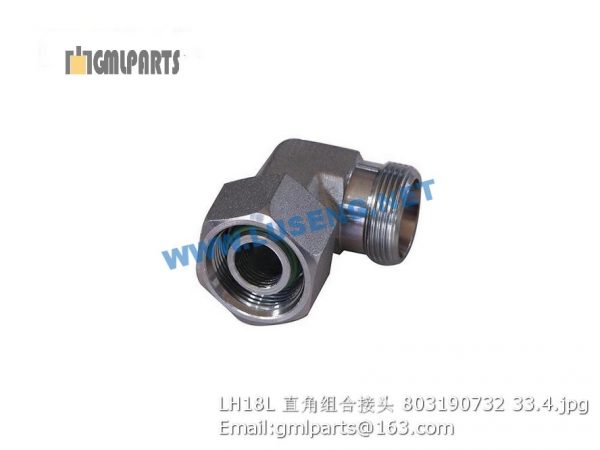

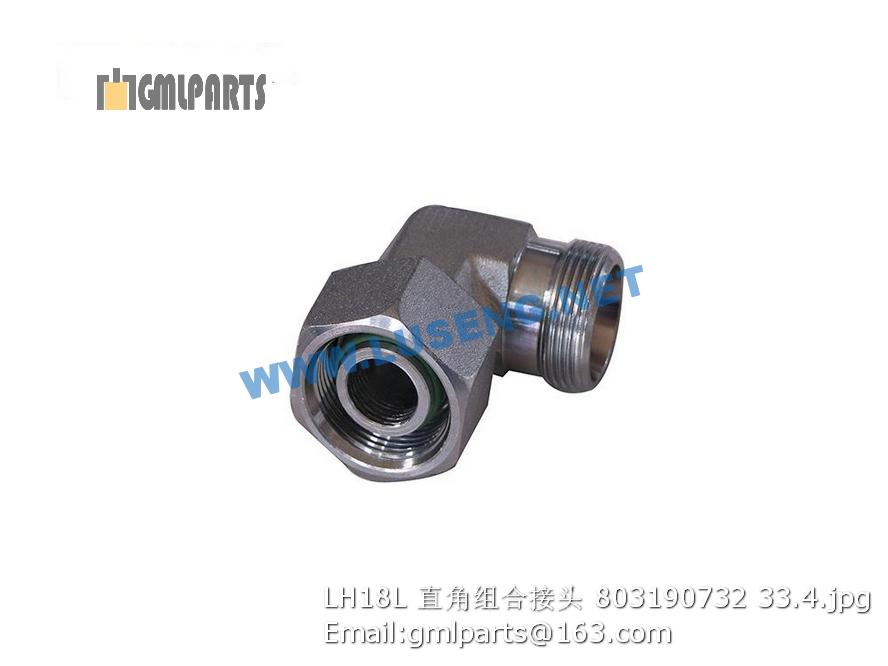

803190732 LH18L xcmg straight joint

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 800104180 机油滤清器 Oil filter element 1 1
2 803165598 滤油器 Hydraulic oil filter element 1
3 800104179 柴油滤清器 Fuel fiter element 1 1
4 800101510 空滤器 Air filter 1
1 226500609 后轮装配 Rear tyre assembly 1
2 226500910 前轮装配 Rront tyre assembly 1
3 226500908 气路控制 Pneumatic control 1
4 226500130 变速箱和驱动桥 Gearbox and drive axle 1
5 ▲226500375-0501 机身装配 Frame assembly 1
6 226500234 液压转向系统 Hy-steering system 1
7 ▲226500375-0701 操纵系统 Control system 1
8 ▲226500375-0801 柴油机装配 Diesel engine 1
9 226500332 洒水系统 Sprinkling system 1
10 ▲226500375-1101 驾驶室 Cab 1
11 226500250 仪表箱装配 Assemblage of cable instrument box 1
12 226500305 电气系统 Electrical system 1
13 226500329 刮泥板 Scrapper 1
14 ▲226500375-15 油漆与标记 Paints and decals 1
15 226500267 发动机罩 Engine hood 1
16 226500361 放油系统 Oil discharging system 1
17 226300668 空调系统 Air-conditioner system 1
21 226500870 仪表箱总成（集中充气选配） 1
22 226500930 前轮装配（集中充气选配） 1
23 226500687 后轮装配（集中充气选配） 1
24 226500721 气路系统（集中充气选配） 1
1 800302309 轮胎 Tyre 5
2 800302423 轮辋 Rim 5
3 227300151 轮辋螺栓 Bolt of rim 30
4 800302754 螺母 M20 Nut 30
5 226301856 后轮轮胎座 Rear tyre seat 3
6 805000068 螺栓 M10×16 Bolt 18 GB/T5783-2000
7 805300014 垫圈 10 Washer 18 GB/T93-1987
8 225700441 轴承盖 Bearing cover 3
9 226500614 压板 Clamp 3
10 805701094 键 28X165 key 3 GB/T 1096-1979
11 226500606 后轮轴 Rear tyre shaft 1
12 805000051 螺栓 M16×40 Bolt 36 GB/T5783-2000
13 805300011 垫圈 16 Washer 36 GB/T 93-1987
14 225800119 制动鼓 Braking drum 3
15 800302448 制动器总成 Braking system assembly 4
16 226500615 轴套 Shaft sleeve 3
17 805002152 螺栓 M12×1.25×35 Bolt 40 GB/T5786-2000
18 226300199 垫片 Pad 24
19 805600248 销 Pin 8
20 226500106 后轴轴套Ⅰ Rear shaft sleeve I 3
21 803164092 油封B130X160X12 Oil Seal 6 GB/T9877.1-1988
22 800500150 轴承 Bearing 3
23 226300201 轴套Ⅱ Shaft sleeve II 3
24 800511244 轴承 Bearing 3
25 226300203 轴承盖 Bearing cover 3
26 226300204 纸垫 Fibre pad 3
27 805002140 螺栓12×1.25×30 Bolt 24 GB/T5786-2000
28 805002160 螺栓M20X1.5X70 Bolt 10 GB/T 5786-2000
29 805300023 垫圈 20 Washer 20 20 GB/T93-1987
30 805300018 垫圈12 washer 12 28 GB/T93-1987
31 226500107 轴承座 Bearing seat 1
32 226500108 垫块 Shim 1
33 805301358 垫圈100 Washer 100 1 GB/T 858-1988
34 805201491 螺母M100X2 Nut 1 GB/T 812-1988
35 226500109 后轮联轴器 Rear wheel axle joint 1
36 805801009 油封B-90X120X12 Oil sealing 1 GB9877.1-1988
37 800500807 轴承 Bearing 1
38 226300196 压板 Clamp 4
39 225800114 后轮联轴器 Rear wheel axle joint 1
40 226500607 后轮轴(甲) Rear tyre shaft (A) 1
41 226500111 后轮联轴器 Rear wheel axle joint 1
42 226300202 链轮罩 Chain wheel housing 2
43 805000716 螺栓M12X30 Bolt 4 GB/T5783-2000
44 805300020 垫圈12 Washer 4 GB/T97.1-2002
45 805000384 螺栓M24×60 Bolt 8 GB/T5783-2000
46 805300034 垫圈24 Washer 8 GB/T93-1987
47 801100336 黄油嘴M10X1 Grease Nipple 8 JB/T7940.1-1995
48 226500608 后轮轴(乙) Rear tyre shaft (B) 1
49 805601587 销 A20×40 Pin 4 GB/T119.1-2000
50 805601586 销 A20×30 Pin 4 GB/T119.1-2000
51 805701097 键 32X130 Key 2 GB/T1096-2003
52 805701093 键 28X140 Key 1 GB/T1096-2003
53 225700148 轴承盖 Bearing cap 1
54 225700149 纸垫 Fibre pad 1
55 805200134 螺母M64X2 Nut 1
56 805301356 垫圈64 Washer 1
57 226500324 制动鼓 Braking drum 1
58 226300198 大链轮 Large chain wheel 2
59 805002144 螺栓 M20×1.5×55 Bolt 20 GB/T 5786-2000
60 226300205 垫片 Shim 10
61 226500105 轴承座 Bearing seat 3
62 226300197 垫圈 Washer 20
63 805002124 螺栓M20X1.5X100 Bolt 10 GB/T 5786-2000
