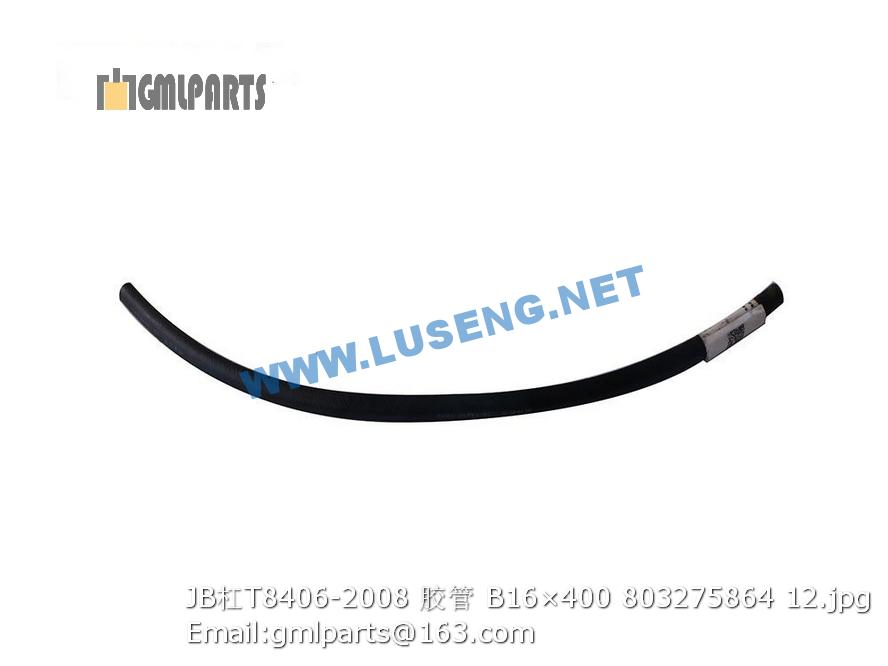

803275864 JB/T8406-2008 HOSE B16×400

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 800302429 轮胎 Tyre 2
2 800302420 轮辋 Rim 2
3 805200219 螺母 M20X1.5 Nut 8 GB/T6171-2000
4 800302754 螺母 M20 Nut 16
5 805300023 垫圈 20 Washer 20 8 GB/T93-1987
6 225701979 轮胎螺栓 Bolt of rim 8
7 805300010 垫圈 8 Washer 8
8 805000033 螺栓M8×16 Bolt 8 GB/T5783-2000
9 225702223 后轴头防护盖 Cover 1
10 225701930 后轮轴冕形螺母 Nut 1
11 805600024 销 8×100 Pin 1 GB/T91-2000
12 225701931 挡圈 Thrust ring 1
13 805701085 键 25X100 Key 1 GB/T1096-2003
14 225701980 后轮轴 Rear wheel shaft 1
15 225701981 后轮轮胎座 Rear tyre seat 1
16 805201494 螺母 M90X2 Nut 1 GB/T812-1988
17 805301361 垫圈 90 Washer 1 GB/T858-1988
18 805002140 螺栓12×1.25×30 Bolt 22 GB/T5786-2000
19 225701933 垫片 Shim 4
20 805600247 销 12X30 Pin 2 GB/T119.1-2000
21 225701982 制动鼓 Braking drum 1
22 225700139 制动器焊接(TD50泵) Braking jointing 1
23 225701983 后轴轴套 Shaft sleeve 1
24 803166351 油封 1
25 800511445 轴承 6218 Bearing 1 GB/T276-1994
26 801100336 黄油嘴M10X1 Grease Nipple 2 JB/T7940.1-1995
27 225701936 后轮轴套 Shaft sleeve 1
28 800511454 轴承 22220C/W33 Bearing 1 GB/T288-1994
29 805300018 垫圈12 washer 12 14 GB/T93-1987
30 805300020 垫圈12 Washer 2 GB/T97.1-2002
31 225701937 链轮罩 Chain wheel cover 1
32 225701938 轴承盖 Bearing cover 1
33 225701939 纸垫 Fibre pad 1
34 803166350 油封 110×140×14 Oil sealing 1 GB/T9877.1-1988
35 225701940 轮胎螺栓 Bolt 8
36 225701984 链轮底座 Chain wheel seat 1
37 805701093 键 28X140 Key 1 GB/T1096-2003
38 225701942 压板 Press plate 1
39 225701943 轴端盖 Bearing cover 1
40 225701944 纸垫 Fibre pad 1
41 805200134 螺母M64X2 Nut 1
42 805301356 垫圈64 Washer 1
43 800500807 轴承 Bearing 1
44 805801009 油封B-90X120X12 Oil sealing 1 GB9877.1-1988
45 225701945 轴承调整座 Bearing seat 1
46 805000384 螺栓M24×60 Bolt 4 GB/T5783-2000
47 805300034 垫圈24 Washer 4 GB/T93-1987
48 225701946 大链轮 Large chain wheel 1
49 805002144 螺栓 M20×1.5×55 Bolt 10 GB/T 5786-2000
50 225701947 垫片 Shim 5
51 225701948 压板 Press plate 1
52 225701985 后轮调整轴承座 Bearing seat 1
53 225702010 接头 Tie-in 2
54 805300037 垫圈10 Washer 2 JB/T982-1977
1 800302429 轮胎 Tyre 3
2 800302420 轮辋 Rim 3
3 805200219 螺母 M20X1.5 Nut 16 GB/T6171-2000
4 800302754 螺母 M20 Nut 16
5 805300023 垫圈 20 Washer 20 24 GB/T93-1987
6 225701979 轮胎螺栓 Bolt of rim 16
7 805300010 垫圈 8 Washer 16
8 805000033 螺栓M8×16 Bolt 16 GB/T5783-2000
9 225702223 后轴头防护盖 Cover 2
10 225701930 后轮轴冕形螺母 Nut 2
11 805600024 销 8×100 Pin 2 GB/T91-2000
12 225701931 挡圈 Thrust ring 2
13 805701085 键 25X100 Key 2 GB/T1096-2003
14 225701986 后轮轴（甲） Rear wheel shaft 1
15 225701981 后轮轮胎座 Rear tyre seat 2
16 805201494 螺母 M90X2 Nut 2 GB/T812-1988
17 805301361 垫圈 90 Washer 2 GB/T858-1988
18 805002140 螺栓12×1.25×30 Bolt 30 GB/T5786-2000
19 225701933 垫片 Shim 8
20 805600247 销 12X30 Pin 4 GB/T119.1-2000
21 225701982 制动鼓 Braking drum 2
22 225700140 制动器焊接(YL16.3.9泵) Braking jointing 2
23 225701983 后轴轴套 Shaft sleeve 2
24 803166351 油封 2
25 800511445 轴承 6218 Bearing 2 GB/T276-1994
26 801100336 黄油嘴M10X1 Grease Nipple 2 JB/T7940.1-1995
27 225701936 后轮轴套 Shaft sleeve 2
28 800511454 轴承 22220C/W33 Bearing 2 GB/T288-1994
29 225701985 后轮调整轴承座 Bearing seat 2
30 225701938 轴承盖 Bearing cover 2
31 225701939 纸垫 Fibre pad 2
32 803166350 油封 110×140×14 Oil sealing 2 GB/T9877.1-1988
33 805701093 键 28X140 Key 1 GB/T1096-2003
34 225701987 后轮联轴器 Rear wheel axle joint 1
35 805300018 垫圈12 washer 12 14 GB/T93-1987
36 805300020 垫圈12 Washer 2 GB/T97.1-2002
37 225701952 链轮罩 Chain wheel cover 1
38 805002161 螺栓 M20X1.5X70 Bolt 8 GB/T5786-2000
39 225701953 垫圈 Washer 8
40 225701946 大链轮 Large chain wheel 1
41 225701988 后轮联轴器 Rear wheel axle joint 1
42 225701989 后轮轴（乙） Rear wheel shaft 1
43 225701948 压板 Press plate 1
44 805002144 螺栓 M20×1.5×55 Bolt 10 GB/T 5786-2000
45 225701947 垫片 Shim 5
46 805701097 键 32X130 Key 1 GB/T1096-2003
47 225701942 压板 Press plate 1
48 805000384 螺栓M24×60 Bolt 4 GB/T5783-2000
49 805300034 垫圈24 Washer 4 GB/T93-1987
50 225702010 接头 Tie-in 2
