Description

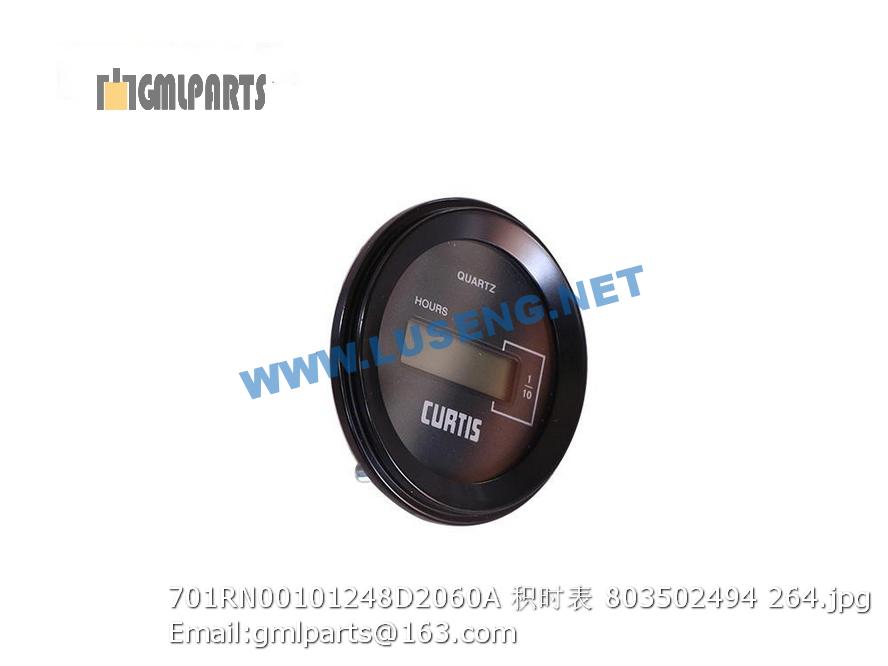

803502494 701RN00101248D2060A HOUR METER
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 805004564 螺栓M8X1X25 Screw 3 GB/T5786-2000
2 805301283 垫圈8 Lock washer 3 GB/T93-1987
3 272100525 锁紧盘 Lock Plate 1 MYF200.9-2
4 800513342 圆锥滚子轴承32011 Bearing 2 GB/T297-1994
5 272100609 轴承隔套 Spacer Bearing 1 MYF200.12-5
6 272100607 隔套 Spacer 1 MYF200.12-3
7 272100565 轴用挡圈φ90X4-DIN472 Snap Ring Internal 1 MYF200.12-6
8 272100608 惰轮轴齿轮 Gear 1 MYF200.12-4
9 272100606 O型圈φ74X2 O Ring 1 MYF200.12-2
10 272100605 惰轮轴 Shaft Idler 1 MYF200.12-1
11 803107816 螺塞 M10X1 Plug 1 JB/T1000-1977
12 805300037 垫圈10 Washer 1 JB/T982-1977
13 805301284 垫圈10 Lock washer 6 GB/T93-1987
14 805000679 螺栓M10X35-10.9-Zn.D Bolt 6
15 272100377 带孔螺塞M12X1.75 Plug 1 MYF220.2-1
1 272100307 飞轮连接盘 Adapter flexplate 1 MYF220.13-1
2 805004565 螺栓M12×18 Screw 4 GB/T5783-2000
3 272100537 弹性板垫片 Retainer flex-plate 4 MYF200.13-4
4 272100309 弹性板 Plate-flex 2 MYF200.13-3
5 272100308 弹性板圆固定板 Retainer flex-plate 1 MYF220.13-2
6 805000334 螺栓M12X40-10.9 Screw 12 GB/T5783-2000
1 272100319 2位4通电磁阀 Solenoid -4/2 ON/OFF 1 MYF220.14-5
2 272100318 2位3通电磁阀 Solenoid-3/2 ON/OFF 5 MYF220.14-4
3 805100241 螺钉M5X10 Screw 12 GB/T70.1-2008
4 272100317 螺塞M16×1.5 plug 11 MYF220.14-3
5 272100364 O形圈Φ13.3×2.2 O ring 11 MYF220.16-2
6 805000043 螺栓 M10×30 Bolt 7 GB/T 5783-2000
7 805300014 垫圈 10 Washer 7 GB/T93-1987
8 272100316 标准弹簧 Spring regulator valve 2 MYF220.14-2
9 272100315 调压阀阀芯 spool regulator valve 2 MYF220.14-1
10 272100363 O形圈Φ19.3×2.2 O ring 2 MYF220.16-1
11 272100401 螺塞M22×1.5 plug 2 MYF220.3-2
12 272100614 控制阀阀体和塞子总成 Body-control valve 1 MYF200.14.1
13 272100705 O形圈Φ22×2.5 O ring 6 MYF200.14-2
