Description

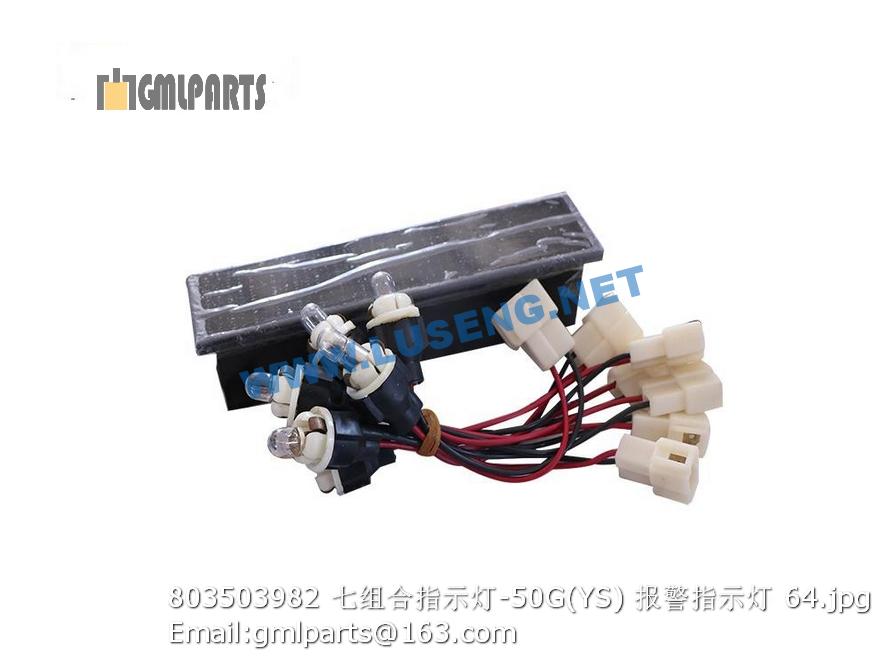

803503982 lamp XCMG
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲800355154-01 螺栓M12x1.25×60-10.9 Bolt 8 GB/T5785-2000
2 ▲800355154-02 弹簧垫圈12 Washer 8 GB/T93-87
3 ▲800355154-03 万向节总成 Uniwersal joint assembly 2 2V7153B
4 ▲800355154-04 联接叉 Clevis 1 800KII.3.2-01B
5 ▲800355154-05 轴管 Axle tube 1 600KNAII.3.1-01
6 ▲800355154-06 油杯M6x1 Lubricating nipple 1 JB/T940.1-95
7 ▲800355154-07 花键套 Splined sleeve 1 800KII.3.2-03B
8 ▲800355154-08 防尘套 Dirt-proof boot 1 800KII.3.2-04B
9 ▲800355154-09 花键轴叉 Slip joint 1 800KII.3.2-05B
1 ▲800355155-01 开口销 Split pin 1 GB/T91-2000
2 ▲800355155-02 六角法兰开槽螺母M33x1.5 Nut 2 Z5GN(T).3.2-05
3 ▲800355155-03 花键叉 Slip shaft yoke 2 600KNAII.3.2-01
4 ▲800355155-04 端盖 End cover 1 600KNAII.3.2-03
5 ▲800355155-05 圆柱头内六角螺栓M10x25 Bolt 12 GB/T70.1-2000
6 ▲800355155-06 弹簧垫圈10 Spring washer 12 GB/T93-87
7 ▲800355155-07 O型密封圈110×3.1 O-seal ring 2 GB/T3452.1-2005
8 ▲800355155-08 内骨架橡胶油封75x100x12 Rubber oil seal 2 GB13871-92
9 ▲800355155-09 支承轴 Supporting axle 1 600KNAII.3.2-02
10 ▲800355155-10 圆锥滚子轴承30212 Concial roller bearing 2 GB/T297-94
11 ▲800355155-11 支承座 Supporting seat 1 600KNAII.3.2-04
12 ▲800355155-12 油杯M10x1 Lubricating nipple 1 JB/T940.2-95
1 ▲800355154-01 螺栓M12x1.25×60-10.9 Bolt 12 GB/T5785-2000
2 ▲800355154-02 弹簧垫圈12 Washer 12 GB/T93-87
3 ▲800355154-03 万向节总成 Uniwersal joint assembly 2 2V7153B
4 ▲800355154-04 联接叉 Clevis 1 800KII.3.2-01B
5 ▲800353825-05 轴管 Axle tube 1 600KT25(CE).3.6-01
6 ▲800355154-06 油杯M6x1 Lubricating nipple 1 JB/T940.1-95
7 ▲800353825-07 花键套 Splined sleeve 1 600KW.3.3-03
8 ▲800353825-08 防尘套 Dirt-proof boot 1 600KW.3.3-04
9 ▲800353825-09 花键轴叉 Slip joint 1 600KW.3.3-02
10 ▲800353825-10 联接盘 Flange plate 1 ZL50A.4-1
1 ▲800355154-01 螺栓M12x1.25×60-10.9 Bolt 4 GB/T5785-2000
2 ▲800355154-02 弹簧垫圈12 Washer 8 GB/T93-87
3 ▲800355154-03 万向节总成 Uniwersal joint assembly 1 2V7153B
4 ▲800355154-04 联接叉 Clevis 1 800KII.3.2-01B
5 ▲800355156-05 轴管 Axle tube 1 600KNAII.3.3-01
6 ▲800355154-06 油杯M6x1 Lubricating nipple 1 JB/T940.1-95
7 ▲800355156-07 花键套 Splined sleeve 1 YL27.7-3A
8 ▲800355156-08 防尘套 Dirt-proof boot 1 Z50E.7C-2A
9 ▲800355156-09 花键轴叉 Slip joint 1 YL27.7C-2C
10 ▲800355156-10 万向节总成 Uniwersal joint assembly 1 T160B
11 ▲800355156-11 螺栓M12x1.25×55-10.9 Bolt 4 GB/T5785-2000
