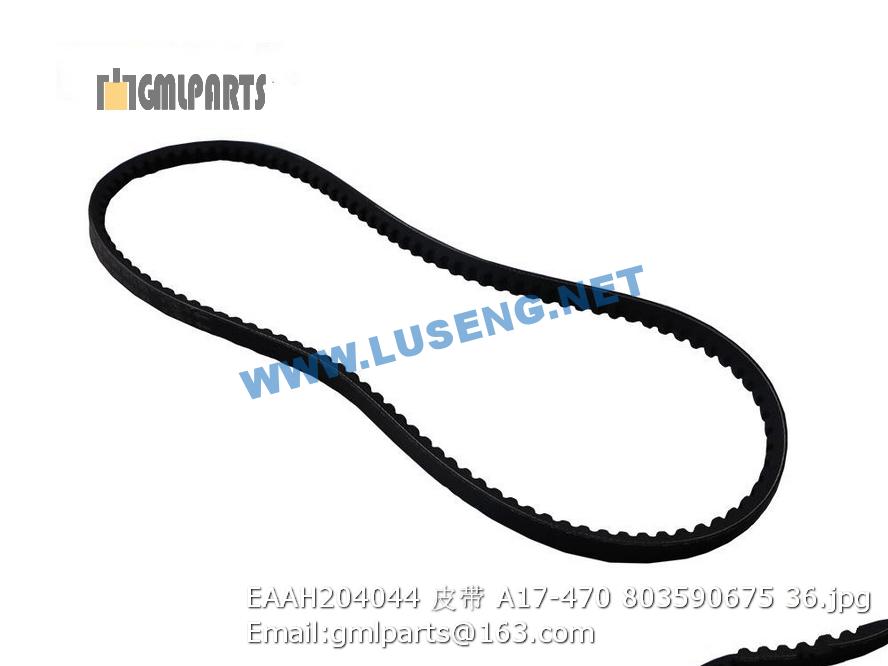

803590675 EAAH204044 BELT A17-470

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲226800286-101001 阀芯 Spool 1
2 ▲226800286-101002 弹簧片 Spring 6
3 ▲226800286-101003 阀套 Sleeve 1
4 ▲226800286-101004 大挡环 Big collar 1
5 ▲226800286-101005 滚针轴承 Bearing 1
6 ▲226800286-101006 小挡环 Small collar 1
7 ▲226800286-101007 O形密封圈77.5×2.65 O-ring 1
8 ▲226800286-101008 阀体 Valve 1
9 ▲226800286-101009 O形密封圈50×3.1 O-ring 1
10 ▲226800286-101010 X形密封圈 X-ring 1
11 ▲226800286-101011 O形密封圈25.8×2.65 O-ring 1
12 ▲226800286-101012 前盖 Front cover 1
13 ▲226800286-101013 弹垫8 Washer 4
14 ▲226800286-101014 螺钉 Screw 4
15 ▲226800286-101015 连接块 Block 1
16 ▲226800286-101016 螺栓 Bolt 7
17 ▲226800286-101017 密封垫 Washer 7
18 ▲226800286-101018 销4×32 Pin 1
19 ▲226800286-101019 后盖 End cover 1
20 ▲226800286-101020 限位块 Limit block 1
21 ▲226800286-101021 O形密封圈79×2 O-ring 2
22 ▲226800286-101022 定转子副 Gear wheel set 1
23 ▲226800286-101023 联动轴 Cardan shaft 1
24 ▲226800286-101024 隔板 Spacer 1
1 231501503 操纵箱壳体 Shell 1
2 231501518 操纵箱骨架焊接 Welding framework 1
3 ▲231500115-040303 选挡器 1 变速箱带 变速箱带
4 800302346 手脚联动油门 Soft Shaft 1
5 805000232 螺栓 M6×35 Bolt M6×35 2 GB/T5783-2000
6 805300030 垫圈 6 Washer 6 2 GB/T93-1987
7 805000018 螺栓 M8×20) Elbow 2
8 805300031 垫圈 24 Washer 5 GB/T1230-1991
9 805101831 螺钉M4×12 Screw 4
10 227000185 盖板 Cover 1
11 805200053 螺母 M6 Nut M6 2
12 805200045 螺母 8 Nut 5 GB/T 6170-2000
13 805000391 螺栓M8X16 Bolt 4
14 805300109 垫圈 5 Washer 4 GB/T93-1987
15 805300119 垫圈5 Washer 4 GB/T 97.1-2002
