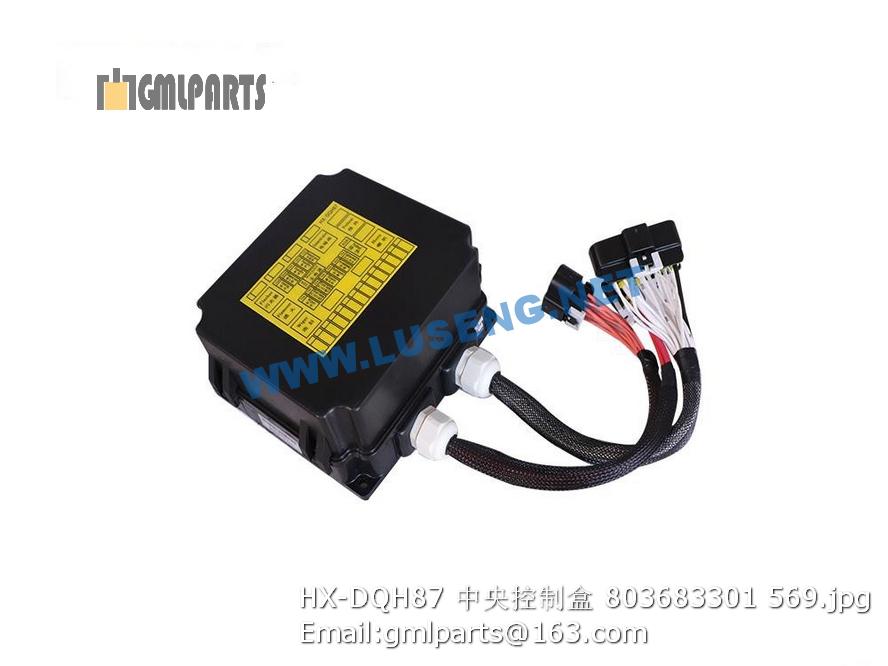

803683301 HX-DQH87 CONTROL BOX XCMG

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 225600347 调整垫 Adjusting shim 2
2 225600617 前梁 Front girder 1
3 225600615 前车架 Front frame 1
4 805000018 螺栓 M8×20) Elbow 6
5 805300010 垫圈 8 Washer 4
6 805300069 垫圈 8 Washer 8 6
7 225600345 水箱盖 Water tank cap 1
8 228700274 销 Pin 2
9 228700141 弹簧 Spring 2
10 800511428 钢球 φ10 Steel Ball φ10 2 GB/T308
11 803165304 安全锁紧 Lock plate 1
12 801100336 黄油嘴M10X1 Grease Nipple 4 JB/T7940.1-1995
13 228700266 磁性螺栓 MAGNETISM BOLT 1
14 800511347 轴承 GAC85S/K Bearing 4 GB/T304-2002
15 228700374 调整垫 Shim 2
17 228700391 转向铰接 Steering hitch 1
18 805002082 螺栓M20×20 Bolt 8
19 228700375 V型圈 V-ring 3
20 228700372 盖 Cover 1
21 805000560 螺栓M24×70 Bolt 12 GB/T5782-2000
22 805101805 螺钉M12×16 Bolt 3 GB/T77-2000
23 228700367 防尘盖 Prevent dust cover 1
24 805300018 垫圈12 washer 12 12 GB/T93-1987
25 805000048 螺栓M12X35 Bolt 12 GB/T5783-2000
26 228700370 盖 Cover 2
27 228700371 垫 Washer 6
28 805000415 螺栓 M20×80 Bolt M20×80 8 GB/T5782-2000
29 805300112 垫圈 20 Washer 20 8 GB/T97.1-2002
30 805000616 螺栓 M8×12 Bolt 2 GB/T5783-2000
1 801100336 黄油嘴M10X1 Grease Nipple 4 JB/T7940.1-1995
3 226801732 胶管总成5-A11-600 Pipe 2
4 225600894 接头 Joint 2
5 225600998 后车架 1
6 805300014 垫圈 10 Washer 6 GB/T93-1987
7 805000727 螺栓M10X25 Bolt 6 GB/T5783-2000
8 225600904 储气筒箱 Air tank 1
9 805300112 垫圈 20 Washer 20 20 GB/T97.1-2002
10 805000415 螺栓 M20×80 Bolt M20×80 6 GB/T5782-2000
11 226800433 磁芯 magnetic core 1
12 225600566 侧门焊接 Side-door jointing 1
13 225600520 电瓶箱焊接 Battery tank jointing 1
14 225600342 底板 Bottom plate 1
15 805000113 螺栓M20X80 Bolt 8 GB/T5783-2000
16 228700266 磁性螺栓 MAGNETISM BOLT 2
17 225600525 油箱焊接 Oil tank jointing 1
18 226800436 垫 Washer 1
19 225600674 油箱盖 Oil tank cover 1
20 805300010 垫圈 8 Washer 26
21 805000018 螺栓 M8×20) Elbow 20
22 803176572 燃油加油滤清器 Filter 1 每1000小时或半年更换，以先到为准change every 1000 hours or half a year(whichever comes first)
23 805000616 螺栓 M8×12 Bolt 6 GB/T5783-2000
24 225600320 密封垫 Pressurize 1
25 805000377 螺栓 M20X35 Bolt 6 GB/T5783-2000
26 225600318 油箱焊接 Oil tank jointing 1
27 225600319 盖板 Cover plate 1
28 800101519 空气滤清器 Air filter 1
29 803164536 液位计 OIL LEVEL AND TEMPERATURE METER 1
