Description

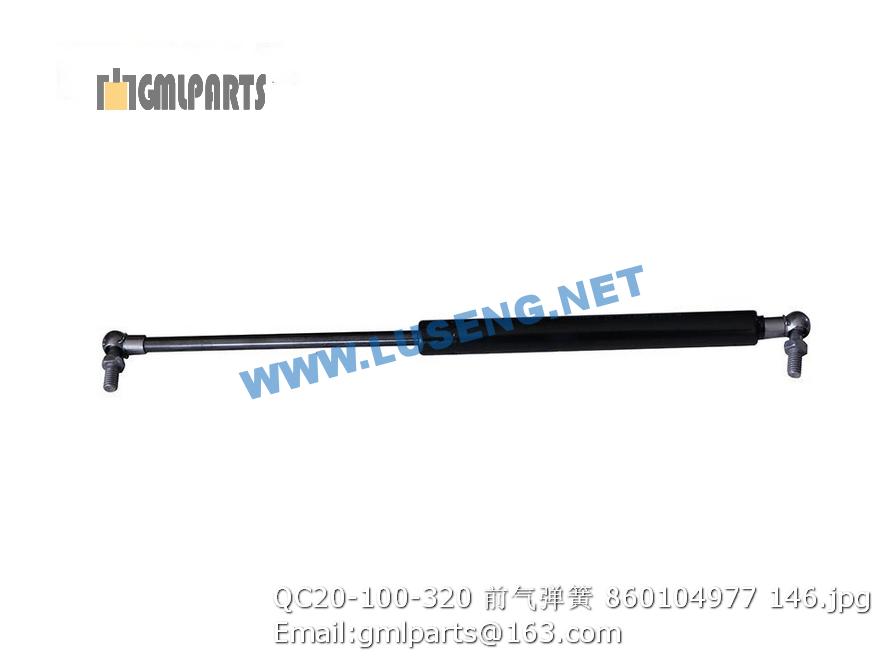

860104977 QC20-100-320 AIR SPRING

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 800302218 轮胎23.5-25 TYRE 2
2 860117298 内胎 Inner tyre 2
3 860110239 球面螺母及螺栓 Spherical Nut 24 驱动桥附件 驱动桥附件
4 800305224 轮辋 Rim 2
5 805001982 螺栓M20×280 Bolt M20×280 8 GB/T5783-2000
5 805001996 螺栓 M24×280 BOLT 8 GB/T5782-2000
6 800351105 驱动桥总成 Dry Driver Axle 1
7 805002021 螺栓 M20×140 Bolt 4 GB/T5783-2000
7 800345971 传动轴 Transmission Shaft Assembly 1 配动力箱
8 226800248 螺钉 Bolt 8
8 805200052 螺母M20 Nut 4 GB/T 6170-2000
9 805300023 垫圈 20 Washer 20 4 GB/T93-1987
9 805300144 垫圈14 WASHER 4
10 805201527 螺母M14X1.5 Nut 4 GB/T889.2-2000
10 800352644 传动轴 TRANSMISSION SHAFT 1 XGC-02G
11 805006324 螺栓 M12×1.25×65(10.9级) Bolt 8 GB/T 5785-2000
11 226800497 锁片 Lock plate 4
12 226800502 锁片 Lock plate 2
12 805338334 垫圈12 WASHER 8 NL12 Nord-Lock
13 805002117 螺栓M14X1.5X45 Bolt 4 GB5785-2000
13 805201509 螺母M24 Nut 8 GB/T6170-1987
14 805200160 螺母 M20 10级 Nut 8 GB/T889.1-2000
14 805338233 垫圈24 WASHER 8 NL24Nord-Lock
15 805300112 垫圈 20 Washer 20 8 GB/T97.1-2002
1 860118652 轮边总成 Planetary assembly 2
2 860118650 制动器总成 Brake Assembly 4
3 ▲227001388-040203 标牌 Mark card 1
4 ▲227001388-040204 铆钉Φ3*6 Rivet 4 GB/T827-86
5 860119020 通气塞 Plug 1
6 ▲227001388-040206 定位销 10*20 Pin 2 GB/T119.2-2000
7 ▲227001388-040207 组合密封垫24 Compound sesl washer 2 JB982-87
8 ▲227001388-040208 螺塞M24×1.5 Plug 2
9 ▲227001810-040201 主减总成 Carrier Assembly 1
10 ▲227001388-040210 螺栓M16*1.5*40 Bolt 14 GB/T5786-2000
11 ▲227001388-040211 弹垫16 Washer 14 GB/T93-87
12 860119021 半轴 Axle shaft 2
13 860119022 桥壳总成 Axle Housing Ass 1
14 ▲227001388-040214 螺栓M20*60 Bolt 24 GB/T5785-2000
15 ▲227001388-040215 弹垫20 Washer 24 GB/T93-87
1 ▲227001388-040501 定位销 14*40 Pin 8 GB/T119.2-2000
2 ▲227001388-040502 螺栓M16*1.5*60 Bolt 24 GB/T5785-2000
3 ▲227001388-040503 垫圈16 Washer 24 GB/T93-87
4 860118651 制动盘 Brake Disc 2
5 ▲227001388-040505 O型圈200*5.3G Combine washer 2 GB/T3452.1-92
6 ▲227001388-040506 油封FB160*190*15 oil seal 4 GB/T9877.1-88
7 ▲227001388-040507 轴承32026 Bearing 2 GB/T297-94
8 860118985 轮辋螺栓 Rim Bolt washer 24
9 860118986 轮毂 Hub 2
10 860118987 轮辋螺母M22*1.5 Rim Bolt 24
11 ▲227001388-040511 轴承32221 Bearing 2 GB/T297-94
12 860118988 内齿轮 Ring Gear 2
13 860118990 行星轮垫片 Washer 16
14 ▲227001388-040514 滚针6×30 Roll 432
15 860118991 隔套 Sleeve 8
16 860118992 行星轮 Planet gear 8
17 ▲227001388-040517 挡圈（轴用）50 Circlip 2 GB/T894.1-86
18 860118993 限位块 Block 2
19 ▲227001388-040519 O型圈265*5.3G Combine washer 2 GB/T3452.1-92
20 ▲227001388-040520 垫圈12 Washer 8 GB/T93-87
21 ▲227001388-040521 螺栓M12*1.25*25 Bolt 8 GB/T5786-2000
22 ▲227001388-040522 组合密封垫12 Compound Seal washer 2 JB982-77
23 ▲227001388-040523 螺塞M12*1.25*9 Plug 2
24 ▲227001388-040524 螺母 Nut 4
25 ▲227001388-040525 垫圈85 Washer 2 GB/T858-88
26 ▲227001388-040526 O型圈375*3.55G Combine washer 2 GB/T3452.1-92
27 860118994 行星轮架 Spider 2
28 860118995 太阳轮 Sun Gear 2
29 ▲227001388-040529 螺栓M14*1.5*40 Bolt 32 GB/T5786-2000
30 ▲227001388-040530 垫圈14 Washer 32 GB/T93-87
31 ▲227001388-040531 钢球φ3/8″ Steel Ball 4 GB/T308-89
32 860118996 调整支柱 Adjusting Pin 2
33 860118997 行星轮轴 Planet pin 8
34 860118998 端盖 Cover 2
35 ▲227001388-040535 组合密封垫24 Compound Seal washer 2 JB982-77
36 ▲227001388-040536 螺塞M12*1.25*9 Plug 2
