Description

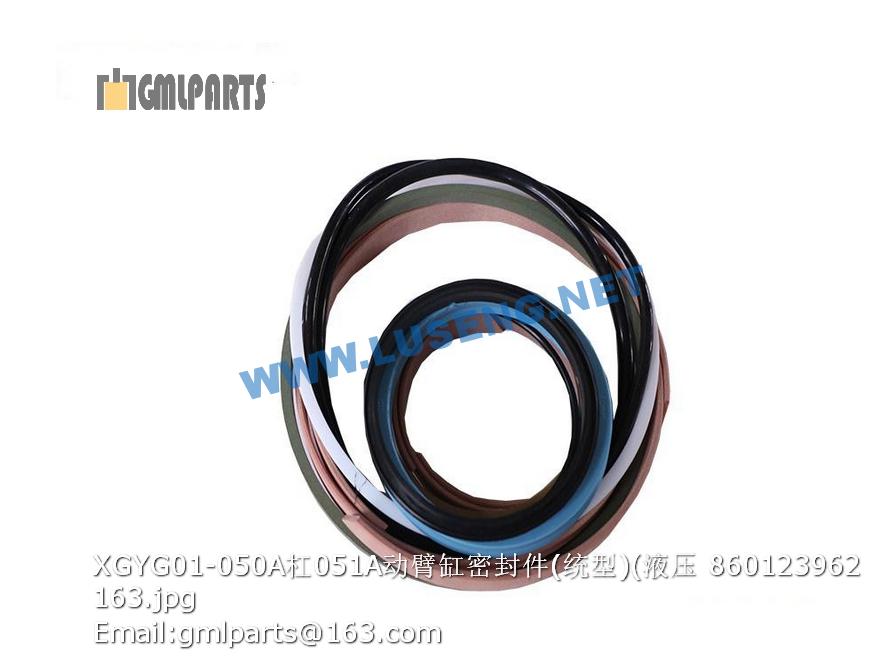

860123962 XGYG01-050A/051A LIFT CYLINDER REPAIR KITS XCMG

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲228703215-000101 机油滤芯 OIL FILTER CORE 1 1012 010-D142
2 ▲228703215-000102 燃油粗滤滤芯 FINE FUEL FILTER CORE 1 1117 045-D142
3 ▲228703215-000103 燃油精滤滤芯 FINE FUEL FILTER CORE 1 1117 050-D142
5 803164592 液压油滤清器 Hydraulic oil filter elememt 2
6 ▲228703215-000401 空滤器主滤芯 AIR CLEANER CORE, MAIN 1 AH24178
7 ▲228703215-000402 空滤器安全滤芯 AIR CLEANER CORE,SAFETY 1 AH24178
1 ▲228600669-02 车架装配 Frame Assembly 1
2 ▲228600669-03 振动轮 Drum 1
3 ▲228703215-04 传动系统 Transmission System 1
4 ▲228703215-05 动力系统 Engine System 1
5 ▲228703215-06 仪表箱及操纵系统 Instrument Panel And Control System 1
6 ▲228703215-07 驾驶室装配 Cab Assembly 1
7 ▲228703215-08 电气系统 Electrical System 1
8 ▲228703215-09 液压系统 Hydraulic System 1
9 ▲228703215-10 发动机罩装配 Engine Hood Assembly 1
10 ▲228600669-11 标记安装 Paints And Decals 1
11 ▲228703215-12 标记安装 Paints And Decals 1
12 ▲228703215-13 空调系统 Air-comditioner System 1
1 805047579 螺栓 M20×80 (10.9级)(达克罗) BOLT 3 GB/T5783-2000
2 805301379 垫圈 20(达克罗) WASHER 6 DIN6796
3 805047076 螺栓 M20×60（10.9级）(达克罗) bolt 3 GB/T5783-2000
4 228700266 磁性螺栓 MAGNETISM BOLT 1
5 803176572 燃油加油滤清器 Filter 1 每1000小时或半年更换，以先到为准change every 1000 hours or half a year(whichever comes first)
6 805048408 螺栓 M4×10（达克罗） Bolt 4
7 805338379 垫圈 4(达克罗) Washer 4
8 805046484 螺栓 M8×25(达克罗) Blot M8×25(Dacromet) 10 GB/T5783-2000
9 805338259 垫圈 8(达克罗) Washer 10
10 805338276 垫圈 8 Washer 10
11 226801778 油箱盖 Cap 1
12 226800436 垫 Washer 1
13 228702653 燃油箱焊接 Fuel tank 1
