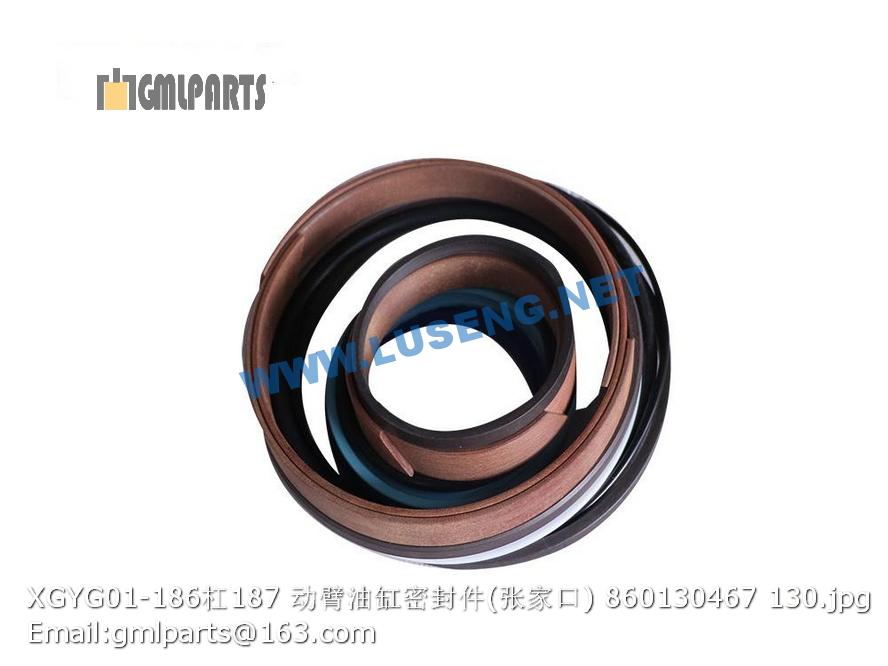

860130467 XGYG01-186/187 lift cylinder seals

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 800354544 驱动桥 Axle 1 DANA193/117
2 805001988 螺栓 M22×350 Bolt 8 GB/T5782-2000
3 805300084 螺栓M20×50 Bolt 16
4 805201508 螺母M22-10 Nut 8 GB/T889.1-2000
5 228700147 轮辋 Circular rim 2
6 800302284 轮胎 Tyre 2
7 ▲228700219-040001 螺栓 M22×80 Bolt 24 驱动桥自带
8 ▲228700219-040002 螺母 M22 Nut 24 驱动桥自带
9 228700364 安装板 Plate 2
1 800302284 轮胎 Tyre 2
2 228700152 轮辋 Circular rim 2
3 228700150 驱动桥 Wheel axle 1 18MRF-C216LTB
4 805001982 螺栓M20×280 Bolt M20×280 8 GB/T5783-2000
5 805200286 螺母 M20-10 Nut 8 GB/T6170-2000
6 805200160 螺母 M20 10级 Nut 8 GB/T889.1-2000
7 805300112 垫圈 20 Washer 20 16 GB/T97.1-2002
8 805000048 螺栓M12X35 Bolt 8 GB/T5783-2000
9 805300020 垫圈12 Washer 8 GB/T97.1-2002
10 805300018 垫圈12 washer 12 8 GB/T93-1987
11 228700541 安装板 Plate 1
1 860118570 轮边减速器总成 Planetary assembly 2
2 ▲228702323-040001 轮辋螺栓M22X1.5X92 Rim Bolt 24
3 ▲228702323-040002 轮辋螺母M22X1.5 Rim Nut 24
4 860108410 半轴 Axle shaft 2 79600126
5 ▲228702323-040003 通气塞 Air plug 1
6 ▲228702323-040004 销12m6X20 Pin 3
7 ▲228702323-040005 螺栓M14X1.5X35 Bolt 10
8 ▲228702323-040006 垫圈14 Washer 14
9 ▲228702323-040007 螺栓M14X1.5X45 Bolt 2
10 ▲228702323-040008 螺栓M14X1.5X60 Bolt 2
11 860118607 减速箱总成 Retarder assembly 1
12 860118608 主减速器总成 Carrier assembly 1
13 ▲228702323-040009 螺塞M24X1.5 Oil plug 2
14 ▲228702323-040010 组合密封垫24 Compound seal washer 2
15 860118609 桥壳总成 Housing assembly 1
1 860115227 端盖 Cover 1 83000808
2 ▲228702323-040101 螺钉M10x30 Screw 3
3 860118610 行星轮架 Spider 1 83775301
4 ▲228702323-040102 限位块 Hold-down Block 1
5 ▲228702323-040103 调整支柱 Adjusting pin 1
6 860115504 垫圈85 Washer 1 52060006
7 860115181 槽螺母 Lock nut 2 75501646
8 860115223 锥套 Cone-shaped sleeve 1 76101041
9 860115239 太阳轮 Sun gear 1 83000802
10 860115443 齿圈 Ring gear 1 83000804
11 860115443-1 齿圈支承 Ring hub 1 83000806
12 860115443-2 卡环 Lock ring 1 83000805
13 860115583 油封座 Oil seal cage 1 83649303
14 ▲228702323-040104 轮毂 Hub 1
15 ▲228702323-040105 油封FB150*180*15 Oil seal 1
16 ▲228702323-040106 油封BA150*180*15 Oil seal 1
17 ▲228702323-040107 挡油板 Guard plate 1
18 ▲228702323-040108 轴承32024 Bearing 1
19 ▲228702323-040109 轴承32026 Bearing 1
20 860115500 行星轮垫 Planet thrust washer 8 75600457
21 860115217 行星轮 Planet gear 4 83000801
22 ▲228702323-040110 滚针 Needle rollers 216
23 ▲228702323-040111 隔套 Spacer 4
24 ▲228702323-040112 行星轮轴 Planet shaft 4
25 ▲228702323-040113 挡圈50 Snap ring 1
26 ▲228702323-040114 隔套 Spacer 1
27 ▲228702323-040115 密封圈 Sealing ring 1
28 ▲228702323-040116 螺栓M12x1.25×25 Bolt 7
29 ▲228702323-040117 垫圈12 Washer 7
30 ▲228702323-040118 螺栓M10x1.25×25 Bolt 1
31 ▲228702323-040119 垫圈10 Washer 1
32 ▲228702323-040120 螺塞M24X1.5 Plug 1
33 ▲228702323-040121 组合密封垫24 Compound seal washer 1
34 ▲228702323-040122 螺塞M12x1.25×9 Plug 1
35 ▲228702323-040123 组合密封垫12 Compound seal washer 1
