Description

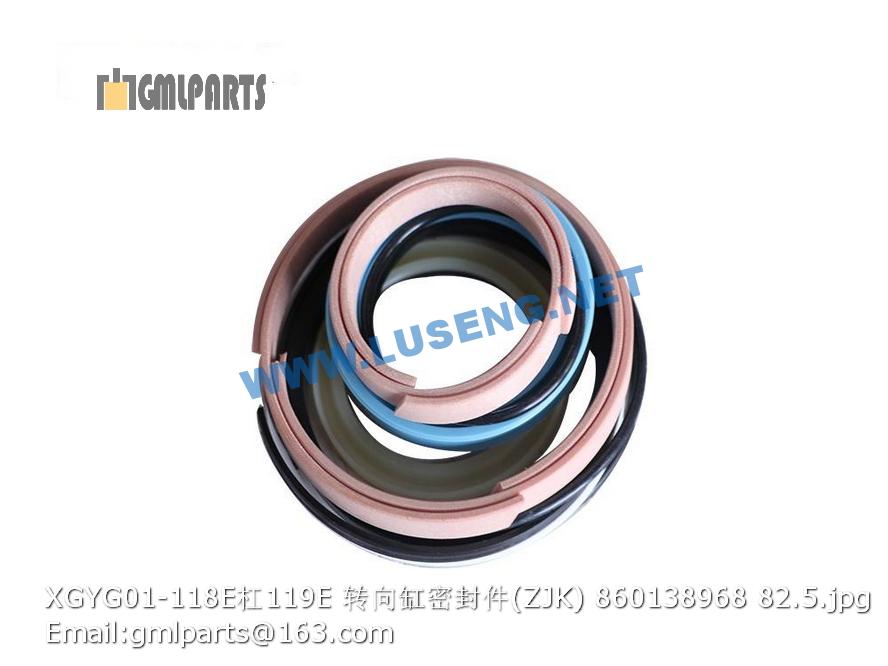

860138968 XGYG01-118E/119E steering cylinder repair kits xcmg
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 226803524 左门焊接总成 The left door total 1
2 805200080 螺母M10 Nut 4
3 860117959 套 Harness 8
4 227000174 垫 Plate 4
5 227000170 轴 Shaft 4
6 801103168 油杯 M6 Grease Nipple 4 JB/T7940.1-1995
7 802101281-2 锁 Latch 2 NBS526
8 805139911 螺钉 M6×25(达克罗) Screw 6 GB/T818-2000
9 801969833 7810铰链 hinge 4
10 805141147 螺钉 M8×20(达克罗) Screw 8
11 805141148 螺钉 M8×30(达克罗) Screw 4
12 227000354 M8螺帽 Screw cap 4
13 226802490 左门固定玻璃 Left fixde glass 1
14 226802499 左门下玻璃 Left under glass 1
15 226803402 左门活动玻璃 Moveable glass of the left door 1
16 802101281-1 锁 Latch 2 NBS526
17 802138972 左把手 left handle 1
18 801969002 密封条L=2700 Sealing strip 1
19 802139154 右把手 Right handle 1
20 226803518 右门焊接总成 The right door total 1
21 226803403 右门活动玻璃 Moveable glass of the right door 1
22 226802489 右门固定玻璃 Right fixde glass 1
23 226802498 右门下玻璃 Right under glass 1
24 801540993-1 拉杆门锁 Latch 1 XGMS502A
25 801540993-2 拉杆门锁 Latch 1 XGMS502A
26 802101286 锁止手把圆螺母套 Bushing 12
27 802101287 玻璃吊点固定垫（外） Washer 12
28 802101288 玻璃吊点固定垫（内） Washer 12
29 805338265 垫圈 8(达克罗) Washer 14 GB/T96.1-2002
30 805338259 垫圈 8(达克罗) Washer 12
31 805046507 螺栓 M8×20(达克罗) Bolt 12
32 801971894 JT-18A 密封条L=2700 Sealing strips 2 MFJT-GR180
33 226802494 左前玻璃 Left front glass 1
34 226802486 前玻璃 Front glass 1
35 226802493 右前玻璃 Right rear glass 1
36 226802487 右后玻璃 Right rear glass 1
37 226802495 后玻璃 Rear glass 1
38 226802488 左后玻璃 Left rear glass 1
1 228900732 消音绵 Silencer sponge 1
2 226803057 消音绵 Silencer sponge 1
3 228900733 消音绵 Silencer sponge 1
4 228900735 消音绵 Silencer sponge 1
5 226803060 消音绵 Silencer sponge 1
6 228900734 消音绵 Silencer sponge 1
7 226803064 顶侧消音绵 Top side silencer sponge 2
8 226803063 顶中消音绵 Top middle silencer sponge 2
9 226803424 消音棉 Silencer sponge 1
10 226801952 隔热棉 Bottom thermal insulation sponge 1
11 226801953 隔热棉 Bottom thermal insulation sponge 1
12 226801954 隔热棉 Bottom thermal insulation sponge 1
13 226801955 隔热棉 Bottom thermal insulation sponge 1
14 226801956 隔热棉 Bottom thermal insulation sponge 1
15 226801951 隔热棉 Bottom thermal insulation sponge 1
16 801902620 塑盖 Plastic cover 26 R820
