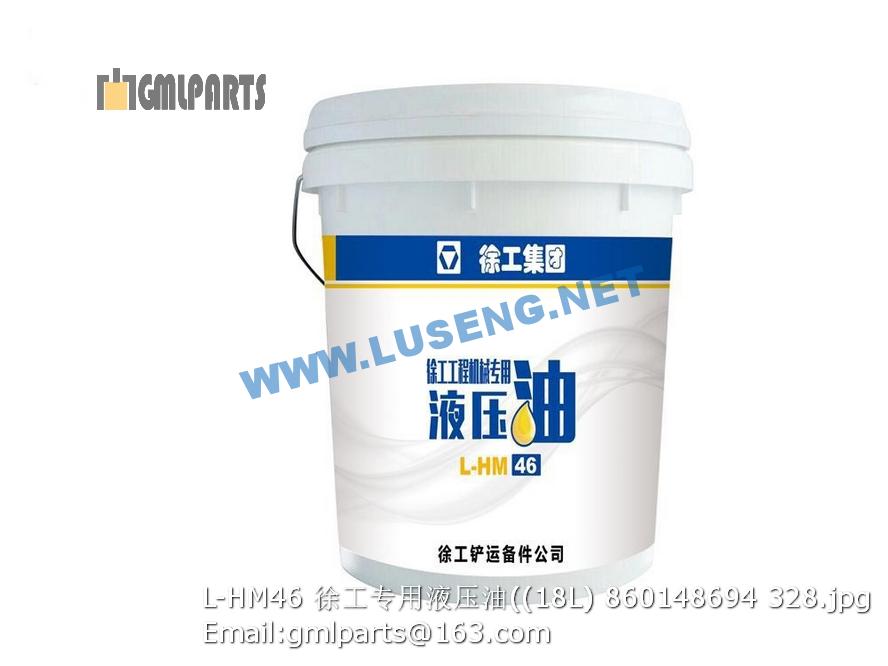

860148694 L-HM46 hydraulic oil 18L XCMG
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 860119036 底座总成 Pedestal assembly 1
2 860119037 制动蹄总成 Braking hoof assembly 2
3 860104974 制动轮缸 Braking pump 1
4 860119038 凸轮固定螺栓 Cam bolt 2
5 ▲226500375-010105 垫圈 Washer 2
6 860119039 弹簧 Spring 2
7 860119040 凸轮 Cam 2
8 860119041 制动蹄回位弹簧 Braking hoof spring 2
9 ▲226500375-010109 六角螺栓M12X30 Bolt 2 GB/T5783-2000
10 ▲226500375-010110 弹簧垫圈8 Washer 2 GB/T93-87
11 ▲226500375-010111 垫圈12 Washer 2 GB848-85
12 860119042 限位板 Limit plank 1
13 ▲226500375-010113 开口销5X40 Pin 2 GB/T91-2000
1 ▲226500375-010201 制动蹄筋板 Braking hoof plank 2
2 ▲226500375-010202 摩擦片 Grating piece 2
3 ▲226500375-010203 焊块 Weld piece 1
4 ▲226500375-010204 铆钉 Rivet 16
5 ▲226500375-010205 制动蹄幅板 Braking hoof breadth 1
6 ▲226500375-010206 衬套 Bush 1
1 ▲226500375-010301 泵体 Pump body 1
2 ▲226500375-010302 液压活塞 Hydraulic piston 2
3 ▲226500375-010303 液压皮圈 Hydraulic ring 2
4 ▲226500375-010304 弹簧 Spring 1
5 ▲226500375-010305 O型圈 O ring 2
6 ▲226500375-010306 防尘罩 Dustproof cover 2
7 ▲226500375-010307 推杆 Handspike 2
8 ▲226500375-010308 钢球Φ8 Iron ball 1 GB308-77
9 ▲226500375-010309 放气螺钉 Deflation bolt 1
10 ▲226500375-010310 垫片 Washer 1
11 ▲226500375-010311 进油接头 Tie-in 1
12 ▲226500375-010312 垫片 Washer 1
13 ▲226500375-010313 进油螺栓 Bolt 1
