Description

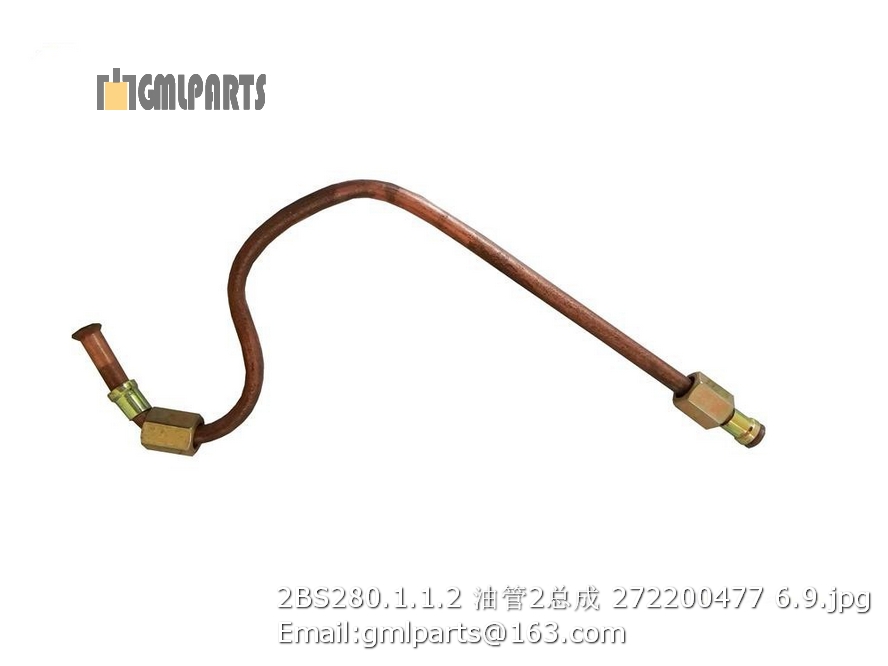

2BS280.1.1.2 tube 272200477 XCMG LW180K
| 1 | 400403076 | 下盖板 | Low Blind Flange | 1 | ||
| 2 | 800511367 | 关节轴承 GE50ES | Joint Bearing | 1 | GB/T9163-2001 | |
| 3 | 400403077 | 上盖板 | Up Blind Flange | 1 | ||
| 4 | 805000047 | 螺栓 M10×50 | Bolt | 6 | GB/T 5783-2000 | |
| 5 | 805300017 | 垫圈 10 | Washer | 14 | GB/T97.1-2002 | |
| 6 | 805300014 | 垫圈 10 | Washer | 14 | GB/T93-1987 | |
| 7 | 400403256 | 转向缸销 | Steering Pin | 2 | ||
| 8 | 805000033 | 螺栓M8×16 | Bolt | 4 | GB/T5783-2000 | |
| 9 | 805300010 | 垫圈 10 | Washer | 12 | ||
| 10 | 400403257 | 限位块 | Guide Vane End Stop | 2 | ||
| 11 | 400403078 | 后车架 | Rear Chassis | 1 | ||
| 12 | 801134086 | 油杯 M10×1（不锈钢） | Oil Cup | 9 | JB/T7940.1-1995 | |
| 13 | 803163960 | 接头体6 | Pipe Connection | 2 | GB/T5625.2-2008 | |
| 14 | 400403079 | 摆动架前注油管 | Tube | 1 | ||
| 15 | 400403080 | 摆动架后注油管 | Tube | 1 | ||
| 16 | 400403836 | 后配重 | Counter Weight | 1 | ||
| 17 | 805300021 | 垫圈24 | Washer | 4 | GB/T97.1-2002 | |
| 20 | 805041374 | 钢结构螺栓M24×230 | Bolt | 4 | GB/T1228-2006 | |
| 21 | 805000074 | 螺栓 M12×20 | Bolt | 4 | GB/T5783-2000 | |
| 22 | 400403082 | 摆动架 | Auxiliary chassis | 1 | ||
| 23 | 400403087 | 摆动架销轴 | Pin | 2 | ||
| 24 | 400403090 | 垫片 | Shim | 6 | ||
| 25 | 400403091 | 隔套 | Bushing | 2 | ||
| 26 | 803163961 | 接头体 A6F | CONNECTOR A6F | 2 | GB/T5631.2-1985 | |
| 27 | 805200165 | 螺母 M6 | NUT | 2 | GB/T5649-1985 | |
| 28 | 803199325 | 卡套 φ16 | Cutting Ferrule | 2 | TJBC | |
| 30 | 803164060 | O型密封圈65X5.7 | Seal Ring | 1 | GB1235-1976 | |
| 31 | 805300113 | 垫圈12 | WASHER | 4 | GB/T96.1-2002 |
