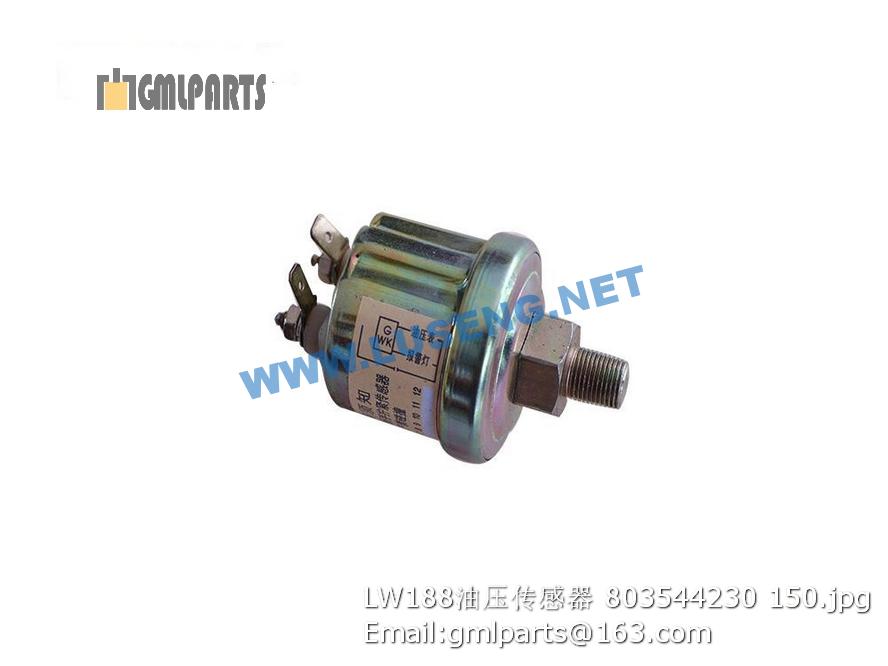

803544230 LW188 SENSOR

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲226800286-040301 主传动齿轮 Pinion 1
1 860118437 主传动齿轮 Pinion 1
2 860118438 被动齿轮 Gear 1
2 ▲226800286-040302 被动齿轮 Gear 1
3 ▲226800286-040303 螺母M14×1.5 Nut 12
4 ▲226800286-040304 螺栓M14×1.5×50 Bolt 12
5 ▲226800286-040305 小螺伞轴承142807K Bearing 1
6 ▲226800286-040306 半壳轴承47686 Bearing 2
7 ▲226800286-040307 铁丝￠1.8*600 Iron thread 2
8 ▲226800286-040308 调整螺母 Adjusting Nut 2
9 ▲226800286-040309 铜套 Copper Copy 1
10 ▲226800286-040310 止退螺栓M27×2×95 Bolt 1
11 ▲226800286-040311 花垫 Shim 1
12 ▲226800286-040312 螺母M27×2 Nut 1
13 ▲226800286-040313 油封FB80*100*10 Oil Seal 1
14 ▲226800286-040314 油封FB80*100*10 Oil Seal 1
15 ▲226800286-040315 垫圈12 Washer 1
16 ▲226800286-040316 密封盖螺栓M12×1.5×55 Bolt 1
17 ▲226800286-040317 密封盖螺栓M14×1.5×55 Bolt 7
18 ▲226800286-040318 垫圈14 Washer 7
19 ▲226800286-040319 角齿螺母M52*1.5 Lock Nut 1
20 ▲226800286-040320 角齿垫片 Washer 1
21 ▲226800286-040321 联接法兰 Flange 1
22 ▲226800286-040322 防尘罩 Anti-dust cover 1
23 ▲226800286-040323 密封盖 Cover 1
24 ▲226800286-040324 轴承座-S Bearing Cage 1
25 ▲226800286-040325 托架 Bracket 1
26 ▲226800286-040326 小螺伞轴承31313LB Bearing 1
27 ▲226800286-040327 调整垫片组 Washer group 1
28 ▲226800286-040328 锁紧片螺栓M10×1×20 Bolt 2
29 ▲226800286-040329 锁紧片 Lock plate 2
30 ▲226800286-040330 小螺伞轴承31314HI Bearing 1
31 ▲226800286-040331 轴承隔套 Adjusting sleeve 1
32 ▲226800286-040332 轴挡φ90 Circlip 1
33 ▲226800286-040333 轴承盖 Cover 2
34 ▲226800286-040334 轴承盖螺栓M22×2.5×99 Bolt 4
35 860115187 差速器总成 Differential Assembly 1
36 ▲226800286-040336 调整隔套垫片 Washer 1
37 ▲226800286-040337 垫片10 Washer 2
1 800302278 变速箱 Gearbox 1
2 805002045 螺栓 M22×55 Bolt 2 GB/T5783-2000
3 805300084 螺栓M20×50 Bolt 2
4 805300058 垫圈 22 Washer 22 2 GB/T93-1987
5 226800244 左支架 Bracket 1
6 805300023 垫圈 20 Washer 20 4 GB/T93-1987
7 805000144 螺栓M20×45 bolt 4 GB/T 5783-2000
8 226800247 右支架 Bracket 1
9 805000375 螺栓M14×55 Bolt 4 GB/T5783-2000
10 805300033 垫圈 14 WASHER 4 GB/T93-1987
11 801902782 减振器 Shock absorber 2
12 805300144 垫圈14 WASHER 4
13 805200067 螺母M14 Nut 4
