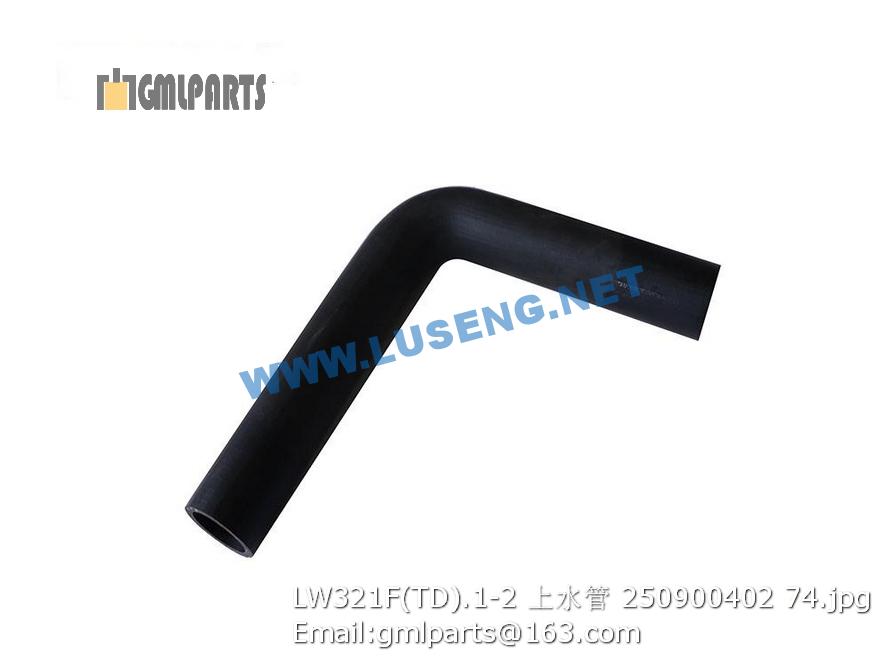

250900402 LW321F(TD).1-2 HOSE XCMG

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 226801773 前梁 Front girder 1
2 228700366 调整垫 Shim 2
3 228700368 调整垫 Shim 2
4 805002127 螺栓M24×2×120 Bolt 8 GB/T5785-2000
5 805300021 垫圈24 Washer 8 GB/T97.1-2002
6 227000270 压轮框架 Frame 1
7 805000008 螺栓 M6×12 Bolt 8 GB/T5783-2000
8 805300030 垫圈 6 Washer 6 8 GB/T93-1987
9 228700369 板 Board 2
10 228700370 盖 Cover 2
11 228700371 垫 Washer 6
12 805000616 螺栓 M8×12 Bolt 1 GB/T5783-2000
13 800511347 轴承 GAC85S/K Bearing 4 GB/T304-2002
14 228700391 转向铰接 Steering hitch 1
15 801100336 黄油嘴M10X1 Grease Nipple 3 JB/T7940.1-1995
16 228700372 盖 Cover 1
17 805101805 螺钉M12×16 Bolt 3 GB/T77-2000
18 228700373 V型圈 V-ring 2
19 805000560 螺栓M24×70 Bolt 12 GB/T5782-2000
20 228700374 调整垫 Shim 2
21 228700375 V型圈 V-ring 1
22 805000048 螺栓M12X35 Bolt 12 GB/T5783-2000
23 805300018 垫圈12 washer 12 12 GB/T93-1987
24 228700367 防尘盖 Prevent dust cover 1
25 228700703 刮泥板Ⅰ Scraper 2
26 228700704 刮泥板Ⅱ Scraper 2
27 805301377 垫圈 16(达克罗) Wahser 16
28 805000051 螺栓 M16×40 Bolt 16 GB/T5783-2000
1 226801793 轮子焊接 Drum 1
2 226801821 激振室壳体 Bearing housing inner 2
3 805000054 螺栓M16X60 Bolt 24 GB/T5782-2000
4 805301377 垫圈 16(达克罗) Wahser 24
5 226801654 外轴承座 Bearing housing right 2
6 800511290 振动轴承 NJ324（NSK） Bearing 4
7 805101805 螺钉M12×16 Bolt 12 GB/T77-2000
8 226801655 框架轴承座 Frame bearing set 2
9 803164194 油封 2
10 800511355 轴承 352124 Bear 2 GB/T299-1995
11 805000716 螺栓M12X30 Bolt 8 GB/T5783-2000
12 226800504 锁片 Lock 8
13 226801836 压板 Cover palte 1
14 228700189 左偏心轴 Eccentricity shaft 1
15 803100382 螺塞M22×1.5 Plug 2 JB1000-1977
16 805300032 垫圈 22 Washer 2 JB/T982-1977
17 803165633 螺塞 M42×2 Sealing Plug M42×2 2 JB/T1000-1977
18 805300019 组合垫圈42 Washer,sealing 2 JB/T982-1977
19 803164136 O型圈412×7 O-ring 2 GB/T3452.1-2005
22 803171172 油封FB110×140×12F V-ring 2 GB9877.1-88
23 226802286 油位螺栓 Oil Lever Bolt 2
24 805300026 垫圈16 Washer 2
25 805000167 螺栓M12×16 Bolt 6
26 805300025 垫圈 12 Washer 6
27 801100339 油杯 M10×1 801100339 2 JB/T7940.2-1995
28 226801813 磁性塞 Plug 2
29 805300055 垫圈 30 WASHER 2 JB982-77
30 228700161 传动轴 Transmission shaft 1
31 228700157 橡胶套 Rubber sleeve 2
32 805000404 螺栓M12X45 Bolt 8 GB/T5782-2000
33 226801658 压板 Cover 1
34 228700192 右偏心轴 Right eccentricity shaft 1
35 805002038 螺栓 M16×65 Bolt 24 GB/T5783-2000
37 226801656 安装板 Mounting Plate 2
38 801902779 减振块 Shock absorber 12
39 239900236 透气螺栓 Breath cap 2
40 226801657 马达连接盘 Motor bracket 1
41 859915662 油封 1
42 226801647 花键套 Spline sleeve 1
43 805000264 螺栓 M12×90 Bolt 7 GB/T5782-2000
45 805000573 螺栓M12×100 BOLT 7 GB/T5782-2000
46 805300018 垫圈12 washer 12 24 GB/T93-1987
47 805000032 螺栓M12X60 Bolt 48 GB/T5782-2000
48 805301374 垫圈 12(达克罗) Bolt 48
49 805200098 螺母 M12 Nut 48 GB/T889.1-2000
50 805000637 螺栓M16X85 Bolt 16 GB/T5782-2000
51 805200200 螺母 M16 Nut 16 GB/T889.1-2000
52 803164181 O型圈200×7 O-ring 2 GB/T3452.1-2005
53 226801837 轴承盖 Bearing plate 1
54 226801802 封板 Cover palte 2
56 805000023 垫圈20 Washer 805000023 48
59 228700155 调整垫 Shim 4
60 805000060 螺栓M24×130 Bolt 24
61 805300021 垫圈24 Washer 28 GB/T97.1-2002
62 805200235 螺母 M24 Nut 24 GB/T6184-2000
63 805000282 螺栓M24×55 Bolt 4 GB/T5783-2000
64 226801798 减振器支座 Shock absorber supporter 4
65 226802266 刮油板 plate 24
66 805000033 螺栓M8×16 Bolt 48 GB/T5783-2000
67 805300010 垫圈 8 Washer 48
68 226801835 弹簧 Spring 1 SAUER马达
