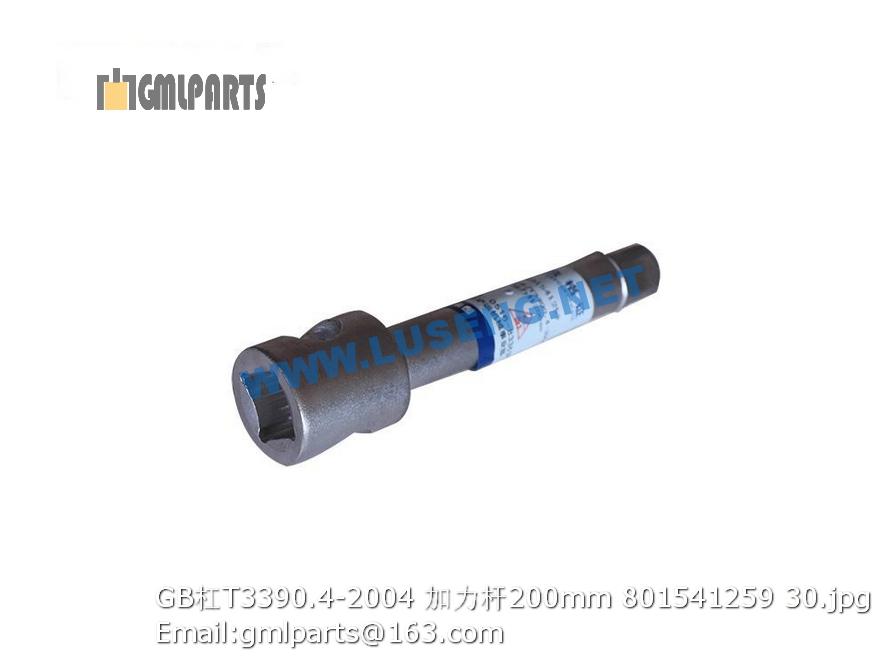

801541259 GB/T3390.4-2004 ATTACHMENT FOR HAND OPERATED SOCKET WRENCH 200mm
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 800511320 轴承6307 Bearing 2 GB/T276-1994
2 231400160 II轴肩环 Ring 1
3 231400592 II轴齿轮 Gear 1
4 805400050 挡圈75 Washer 1 GB/T893.1-1986
5 800511270 轴承6009 Bearing 4 GB/T276-1994
6 231400568 II轴换向齿轮 Gear 2
7 231400569 换向齿轮 Gear 1
8 231400596 II轴 Shaft 1
9 805701145 键B16×10×80 Key 1 GB/T1096-2003
10 231400162 拉轴 Shaft 1
11 231400161 方销 Pin 1
12 231400100 O型圈用挡圈 O-ring 2
13 803164193 O型圈 20X2.65 O Ring 1 GB/T3452.1-2000
14 231400167 滑套 Sleeve 1
15 231400168 键 Key 1
16 800500187 轴承6202 Bearing 2 GB/T276-1994
17 231400164 套 Sleeve 1
18 231400165 内套 Inner sleeve 1
19 805201527 螺母M14X1.5 Nut 1 GB/T889.2-2000
20 231400166 盖 Cover 1
21 805100066 螺钉M4×12 Bolt 4 GB/T67-2000
22 805300027 垫圈 4 Washer 4 GB/T 93-1987
23 231400163 轴肩套 Sleeve 1
24 231400232 垫 Cushion 1
25 803164094 油封35×55×8 Seal 1 GB/T9877.1-1986
26 231400597 支座 Bracket 1
27 805300030 垫圈 6 Washer 6 4 GB/T93-1987
28 805000525 螺栓M6×20 Bolt 4 GB/T5783-2000
29 800511424 钢球11.5 Ball 1 GB/T308-2002
30 225100336 弹簧 Spring 1
31 805200067 螺母M14 Nut 1
32 805000103 螺栓 M14×35 Bolt 1 GB/T5783-2000
1 231400509 支座 Bracket 1
2 805200117 螺母M24 Nut 1 GB/T6170-2000
3 805300034 垫圈24 Washer 1 GB/T93-1987
4 805300021 垫圈24 Washer 1 GB/T97.1-2002
5 805400044 挡圈62 Washer 2 GB/T893.1-1986
6 231400473 轴套 sleeve 1
7 231400474 油封盖 Cover 2
8 800511326 轴承6305 Bearing 2 GB/T276-1994
9 231400600 隔套 Sleeve 1
10 231400599 滚筒 Roller 1
11 231400508 轴 Shaft 1
12 801100339 油杯 M10×1 801100339 1 JB/T7940.2-1995
