Description

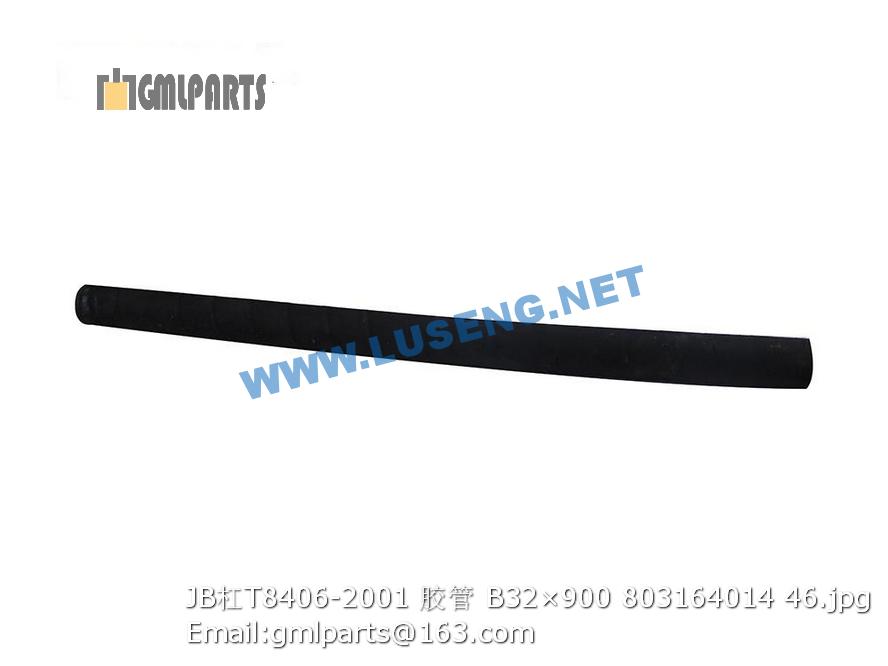

803164014 JB/T8406-2001 HOSE B32×900
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲225701587-040501 差速器壳 Diff. case 1 82030506
2 ▲225701587-040502 半轴齿轮垫 Thrust washer 2 82030504
3 ▲225701587-040503 半轴齿轮 Side gear 2 75201275
4 ▲225701587-040504 十字轴 Spider 1 82030505
5 ▲225701587-040505 差速器壳 Diff. case 1 82030503
6 ▲225701587-040506 螺母M16X1.5 Nut 8 75501991
7 ▲225701587-040507 行星轮垫 Thrust washer 4 82030507
8 ▲225701587-040508 行星齿轮 Side pinion 4 75201274
9 ▲225701587-040509 凸缘螺栓 Flange bolt 8 75501981
1 ▲225701587-040401 支承轴 Spindle 1 83566007
2 ▲225701587-040402 轴承30220 Bearing 1 54100023
3 ▲225701587-040403 轴承座 Bearing cage 1 83566006
4 ▲225701587-040404 调整垫片组 Adjustment washers 1 83566015
5 ▲225701587-040405 调整套 Adjustment sleeve 1 83566009
6 ▲225701587-040406 轴承32220 Bearing 1 54100051
7 ▲225701587-040407 隔套 Sleeve 1 83566004
8 ▲225701587-040408 O型密封圈 O-ring 1 53000057
9 ▲225701587-040409 油封B120X150X12O Oil seal 1 53100004
10 ▲225701587-040410 油封座 Oil seal cage 1 83566008
11 ▲225701587-040411 垫圈10 Washer 16 52020003
12 ▲225701587-040412 螺栓M10X45 Bolt 16 50008015
13 ▲225701587-040413 链轮 Chain wheel 1 83627002
14 ▲225701587-040414 套 Sleeves 1 83566002
15 ▲225701587-040415 螺钉M14X32 Screw 2 83319015
16 ▲225701587-040416 调整支柱组 Adjustment pin 1 79605020
17 ▲225701587-040417 挡圈50 Circlip 1 52100009
18 ▲225701587-040418 螺母 Nut 1 83566001
1 225701045 刹车支架 Brake bracket 1
2 805300014 垫圈 10 Washer 8 GB/T93-1987
3 805000278 螺栓 M10×55 Bolt 8 GB/T 5783-2000
4 225701046 刹车鼓 Brake drum 1
5 805002260 螺柱 M14X75 Double-screw bolt 8
6 805301376 垫圈14 Washer 14 8
7 805201504 螺母 M14 Nut 8 GB/T 889.1-2000
8 805100142 螺钉 M10×45 Bolt 2
9 805300062 垫圈10 Lock Washer 2 GB859-87
10 225701047 摇臂 Rocker 1
11 805600368 销 B10×35 Pin shaft 1 GB/T882-1986
12 225701048 叉接头总成 Fork connector 1
13 225701049 铜套 Copper sleeve 1
14 805600006 销4×30 Pin 2
15 801100340 油杯M6×1 grease cup 1
16 805300013 垫圈16 Washer 2 GB/T 97.1-2002
17 805600026 开口销3.2X25 Split pin 2
18 805300113 垫圈12 Washer 1 GB/T96.1-2002
19 805300018 垫圈12 washer 12 1 GB/T93-1987
20 805200049 螺母 M12 Nut 1 GB/T6170-2000
21 805600313 销轴 B10X45 Pin shaft 1
22 225701050 刹车压板 Brake plate 2
23 805601665 销轴 B12X15 Pin shaft 1
24 805300020 垫圈12 Washer 1 GB/T97.1-2002
25 225701051 弹簧 Spring 2
26 805200053 螺母 M6 Nut M6 2
27 225701052 螺栓 Bolt 1
28 225701053 刹车带 Brake cingulum 1
29 225701054 螺母 Nut 1
30 225701055 拉紧螺丝 Bolt 1
31 805601693 销轴 Pin shaft 2
32 225701056 弹簧 Spring 1
33 805000020 螺栓 M8×30 Bolt 1 GB/T5783-2000
34 805601605 销轴 A16X45 Pin shaft 1
35 800901307 膜片式弹簧制动器 Spring detent 1
