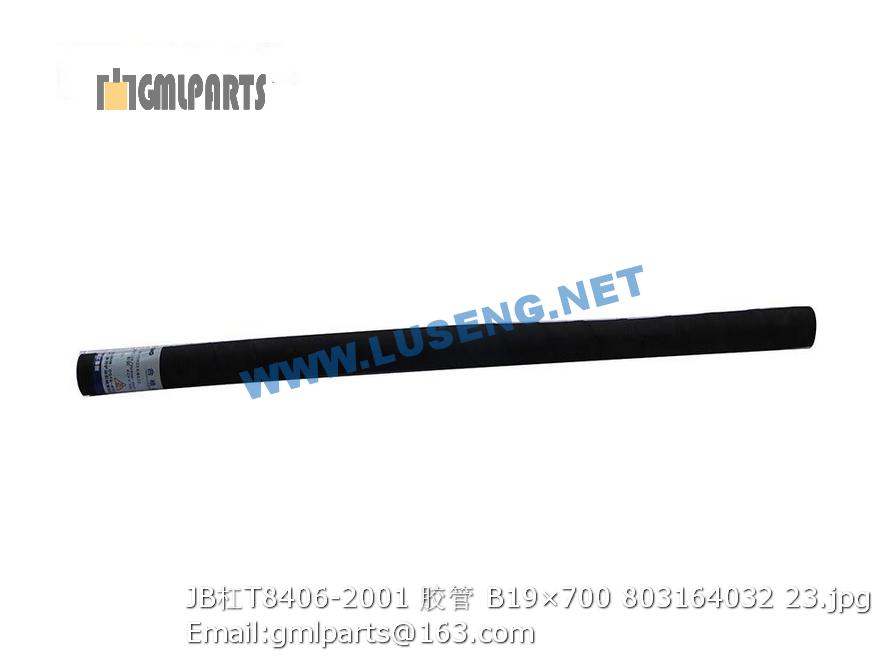

803164032 JB/T8406-2001 HOSE B19×700
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲225701587-041001 第二轴 main shaft 1 1701301-1100
2 ▲225701587-041002 卡环-三四速齿轮 check ring-third and fourth speed gear 1 1701342-950
3 ▲225701587-041003 弹簧 spring 9 1701308-950
4 ▲225701587-041004 支座-同步器 pedestal- synchroshifter 9 1701307-950
5 ▲225701587-041005 滚柱-同步器 roller- synchroshifter 9 1701306-950
6 ▲225701587-041006 第三四速同步器总成 Third-and-fourth synchroshifter assembly 1 1701335-1100
7 ▲225701587-041007 第三速齿轮 third speed gear 1 1701351-1100
8 ▲225701587-041008 半圆挡圈 semicircular shielding ring 1 1701327-1100
9 ▲225701587-041009 外环-半圆挡圈 outer ring- semicircular shielding ring 1 1701326-1100
10 ▲225701587-041010 止推垫-第二速齿轮 thrust plate-second speed gear 1 1701368-1100
11 ▲225701587-041011 衬套-第二速齿轮 bushing-second speed gear 1 1701367-1100
12 ▲225701587-041012 第二速齿轮 second speed gear 1 1701311-1100
13 ▲225701587-041013 防转销-第三速齿轮衬套 anti-rotating pin- third speed gear bushing 1 1701368-11
14 ▲225701587-041014 第一二速同步器总成 first-and-second speed synchroshifter assembly 1 1701355-950
15 ▲225701587-041015 锥体-第一二速同步器 cone-first and second speed synchroshifter 2 1701353-950
16 ▲225701587-041016 第一速齿轮 first speed gear 1 1701331-1100
17 ▲225701587-041017 倒一速齿轮 first speed reversing gear 1 1701339-1100
18 ▲225701587-041018 倒一二速同步器总成 first-and-second speed reversing synchroshifter assembly 1 1701325-950
19 ▲225701587-041019 锥体-倒一二速齿轮 Cone-first and second speed gear 2 1701312-950
20 ▲225701587-041020 倒二速齿轮 second speed reversing gear 1 1701371-1100
21 ▲225701587-041021 止推垫-倒二速齿轮 thrust plate-second speed reversing gear 1 1701391-1100
22 ▲225701587-041022 卡环-二轴后轴承 Snap-rear bearing gear of the main shaft 1 Q433160
23 ▲225701587-041023 滚动轴承 rolling bearing 1 NUP315ENR
24 ▲225701587-041024 衬套-倒二速齿轮 bushing-second speed reversing gear 1 1701341-1100
25 ▲225701587-041025 隔套-第二速齿轮滚针轴承 spacer tube-second speed gear needle bearings 1 1701344-1100
26 ▲225701587-041026 滚针轴承-倒二速齿轮 needle bearing- second speed reversing gear 2 K83 91 20
27 ▲225701587-041027 同步环 synchronizer ring 3 1701313-950
28 ▲225701587-041028 齿座-倒一二速同步器 tooth holder-first and second speed reversing synchroshifter 1 1701329-950
29 ▲225701587-041029 隔套-倒一速齿轮滚针轴承 spacer tube-first speed reversing gear needle bearings 1 1701332-1100
30 ▲225701587-041030 滚针轴承-倒一速齿轮 needle bearing-first speed reversing gear 2 K84 92 20
31 ▲225701587-041031 隔套-第一速齿轮滚针轴承 spacer tube-first speed gear needle bearings 1 1701343-1100
32 ▲225701587-041032 滚针轴承-第一速齿轮 needle bearing-first speed gear 2 K101 109 20
33 ▲225701587-041033 齿套-第一二速同步器 sliding coupling- first and second speed synchroshifter 1 1701358-950
34 ▲225701587-041034 齿座-第一二速同步器 tooth holder-first and second speed synchroshifter 1 1701357-950
35 ▲225701587-041035 同步环-第一二速同步器 synchronizer ring- first and second speed synchroshifter 2 1701354-950
36 ▲225701587-041036 滚针轴承-第二速齿轮 Needle bearing-second speed gear 2 K99 107 20
37 ▲225701587-041037 隔套-第二速齿轮滚针轴承 spacer tube-second speed gear needle bearing 1 1701309-1100
38 ▲225701587-041038 滚针轴承-第三速齿轮 needle bearing-third speed gear 2 K74 82 20
39 ▲225701587-041039 齿套-第三四速同步器 sliding coupling -third and fourth synchroshifter 2 1701328-950
40 ▲225701587-041040 锥体-第三速齿轮 Cone- third speed gear 1 1701312-950
41 ▲225701587-041041 齿座-第三四速同步器 tooth holder- third and fourth speed synchroshifter 1 1701333-1100
42 ▲225701587-041042 铆钉 rivet 3 Q4530510
43 ▲225701587-041043 挡环-第三四速齿套 stopper ring-third and fourth speedsliding coupling 1 1701393-1100
44 ▲225701587-041044 隔套-第三速齿轮滚针轴承 spacer tube- third speed gearneedle bearing 1 1701348-1100
1 ▲225701587-041101 圆柱滚子轴承 countershaft driving gear 1 NJ310E
2 ▲225701587-041102 中间轴传动齿轮 countershaft driving gear 1 1701224-1100
3 ▲225701587-041103 中间轴三档齿轮 countershaft three speed gear 1 1701214-1100
4 ▲225701587-041104 中间轴齿轮 countershaft gear 1 1701212-1100
5 ▲225701587-041105 圆柱滚子轴承 cylindrical roller bearing 1 NUP311ENR
6 ▲225701587-041106 轴用档圈 gear shielding ring 1 Q433120
7 ▲225701587-041107 锁片-中间轴组件总成 retain lock-countershaft components assembly 1 1701232-950
8 ▲225701587-041108 锁紧螺母-中间轴组件总成 locknut- countershaft components assembly 1 1701233-950
