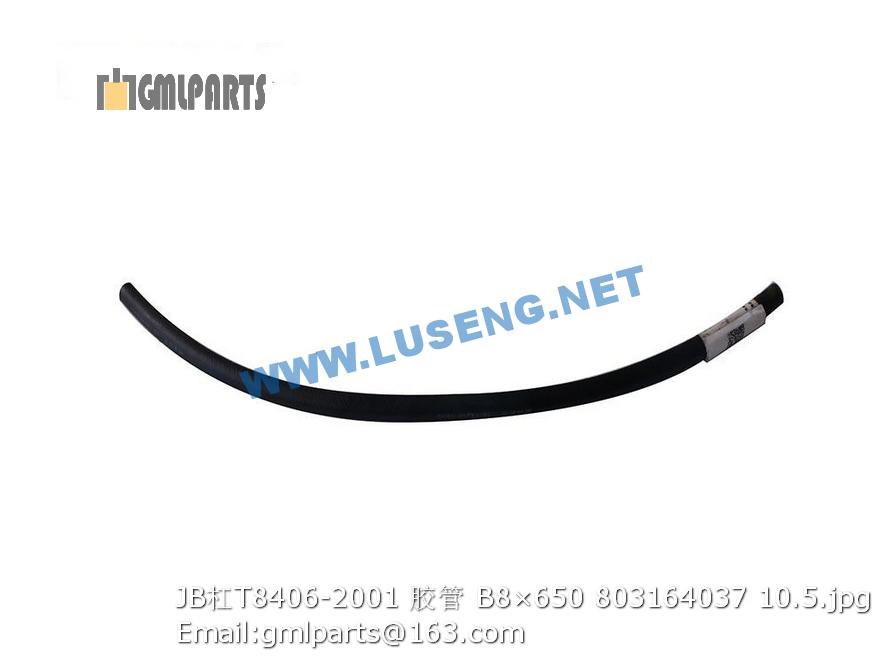

803164037 JB/T8406-2001 HOSE XCMG B8×650

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 800302425 轮胎 Tyre 4
2 800305204 轮辋 Rim Assembly 4
3 805000727 螺栓M10X25 Bolt 16 GB/T5783-2000 GB/T5783-2000
4 805300014 垫圈 10 Washer 16 GB/T93-1987 GB/T93-1987
5 225701929 后轴头防护盖 Cover 4
6 225701428 摇摆架 Swing frame 1
7 225701407 挡盖 End cover 4
8 227100160 O形圈118×7 O-sealing ring 4 GB/T3452.1-2005 GB/T3452.1-2005
9 225701406 轴承座 Bearing seat 4
10 800511345 轴承32216 Bearing 4 GB/T297-1994 GB/T297-1994
11 225701410 纸垫 Fibre pad 4
12 225701426 前轮轴 Steering axle 2
13 225701411 挡板 Retainer 2
14 225701409 端盖 End cover 4
15 225701408 密封圈 Sealing ring 4
16 227300151 轮辋螺栓 Bolt of rim 40
17 801100336 黄油嘴M10X1 Grease Nipple 7 JB/T7940.1-1995 JB/T7940.1-1995
18 226800186 轴承32215 Bearing 4 GB/T297-1994 GB/T297-1994
19 805301356 垫圈64 Washer 4 GB/T858-1988
20 805200134 螺母M64X2 Nut 4 GB/T812-1988
21 800302754 螺母 M20 Nut 40
22 225701424 套 Sleeve 2
23 225701425 销轴 Pin 2
24 225701422 套 Sleeve 1
25 805000018 螺栓 M8×20) Elbow 36 GB/T5783-2000
26 805300010 垫圈 8 Washer 36 GB/T93-1987
27 805300069 垫圈 8 Washer 8 4 GB/T97.1-2002
28 225701415 调整垫 Adjustment pad 2
29 225701414 调整垫 Adjustment pad 2
30 225701413 调整垫 Adjustment pad 2
31 225701421 下嵌板 Lower-located plate 1
32 225701420 封油毡圈 Felt oil sealing 1
33 800511451 轴承30222 Bearing 1 GB/T297-1994 GB/T297-1994
34 225701419 套 Sleeve 1
35 225701418 压板 Clamping plate 1
36 805300023 垫圈 20 Washer 20 2 GB/T93-1987 GB/T93-1987
37 805000145 螺栓 M20×60 Bolt 2 GB/T5783-2000 GB/T5783-2000
38 225701417 封油毡圈 Felt oil sealing 1
39 225701416 上嵌板 Upper-located plate 1
40 800511450 轴承30217 Bearing 1 GB/T297-1994 GB/T297-1994
41 225701427 叉子总成 Fork assembly 1
42 225701412 挡板 Retainer 1
43 805000716 螺栓M12X30 Bolt 6 GB/T5783-2000 GB/T5783-2000
44 805300018 垫圈12 washer 12 6 GB/T93-1987 GB/T93-1987
45 225701423 销轴 Pin 1
