Description

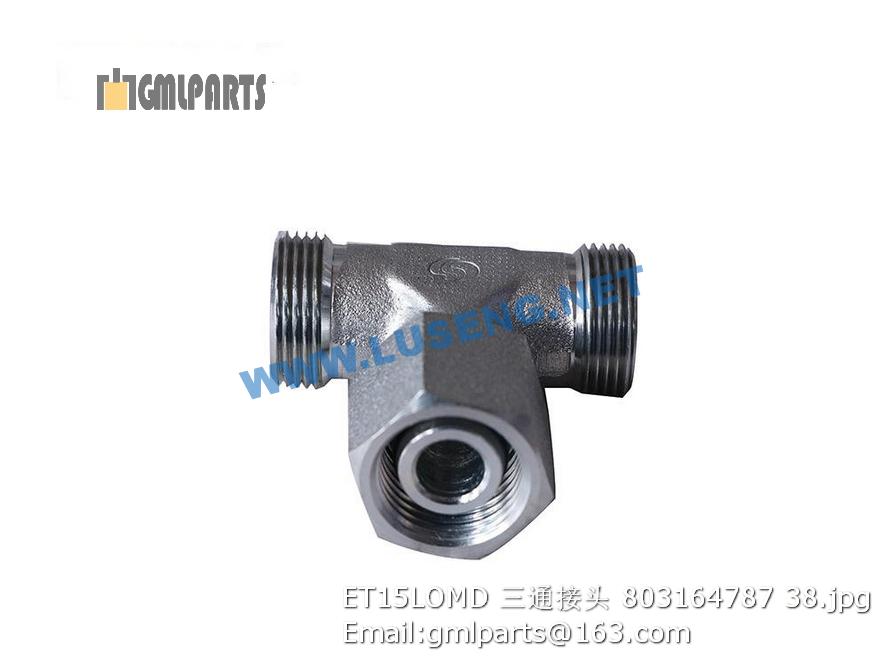

803164787 ET15LOMD JOINT

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
2 805300029 垫圈 6 Washer 6 12 GB/T97.1-2002
3 229602092 封盖 Cover 2
4 801103306 O型密封圈62X1.8 O-ring 2
5 805000694 螺栓 M14×60 10.9级 Bolt 10
6 229602093 压板 Board 2
7 800514859 关节轴承 Bearing 2
8 229602094 铰接套 Sleeve 1
9 800514860 轴套 Sleeve 2
10 803188800 防尘环 V-ring 2
11 803188801 V型旋转封 V-ring 1
12 805301376 垫圈14 Washer 14 8
13 229602091 T型销 T-pin 1
14 801100269 O形密封圈 75X3.55 O- Ring 1 GB/T3452.1-1992
15 229602087 铰接座 Articulation 1
1 229602172 轮子焊接 Drum 1
2 229602175 联接圈 Joining ring 1
3 803009975 驱动马达 Motor bracket 1 MK04-2-114-K04-3340-300
4 805048148 螺栓M16×35 Bolt 5
5 805301377 垫圈 16(达克罗) Wahser 5
6 805002029 螺栓M12×50 10.9级 Bolt 7 GB/T5783-2000
7 805301374 垫圈 12(达克罗) Bolt 22
8 229602176 驱动侧支撑 Driving plate 1
9 229602179 垫块 Pad 2
10 229602180 调整垫 Shim 4
11 805000721 螺栓M12x30-10.9 Bolt 4
12 805000080 螺栓M12×95 Bolt 8 GB/T5782-2000
13 229602182 驱动板 drive plate 1
14 801906698 减振器 Shock absorber 7
15 805000680 螺栓 M10×25-10.9 Bolt 14 GB/T5783-2000
16 805301373 垫圈10(达克罗) Washer 20
17 805000020 螺栓 M8×30 Bolt 6 GB/T5783-2000
18 805301384 垫圈 8(达克罗) Washer 6
19 229602183 驱动侧轴承座 driving bearing housing 1
20 229602184 激振器 Exciter 1
21 229602187 振动侧轴承座 Vibration bearing housing 1
22 229602188 框架轴承座 Frame bearing set 1
23 803164175 O型密封圈 125×2.65 O-rings seal 125×2.65 1 GB/T3452.1-2005
24 229602189 振动侧支撑 Vibration piate 1
25 805000337 螺栓M12×3510.9 Bolt 3 GB/T5783-2000
26 803166359 油封 FB100×125×12 Oil seal 1
27 229602193 马达联接盘 Motor bracket 1
28 800511307 球轴承6016(80X125X22) Ball Bearing 1 GB／T276-94
29 229602194 调整环 Rectifying ring 1
30 805400006 挡圈 80 Washer 1 GB/T894.1-1986
31 800307056 联轴器 connect 1 ROTEX24-5248781
32 805701143 键C8X25 Key 1 GB/T1096-1979
33 805000043 螺栓 M10×30 Bolt 6 GB/T 5783-2000
34 800514866 调心滚子轴承 Sphevial bearing 2 22208E/C4
35 801100231 O形圈175×5.3 O-ring 2 GB/T3452.1-2005
36 805000008 螺栓 M6×12 Bolt 3 GB/T5783-2000
37 228700169 油塞 Oil Plug 1
38 805300055 垫圈 30 WASHER 1 JB982-77
39 239900217 透气塞M12 Breathe plug 1
