Description

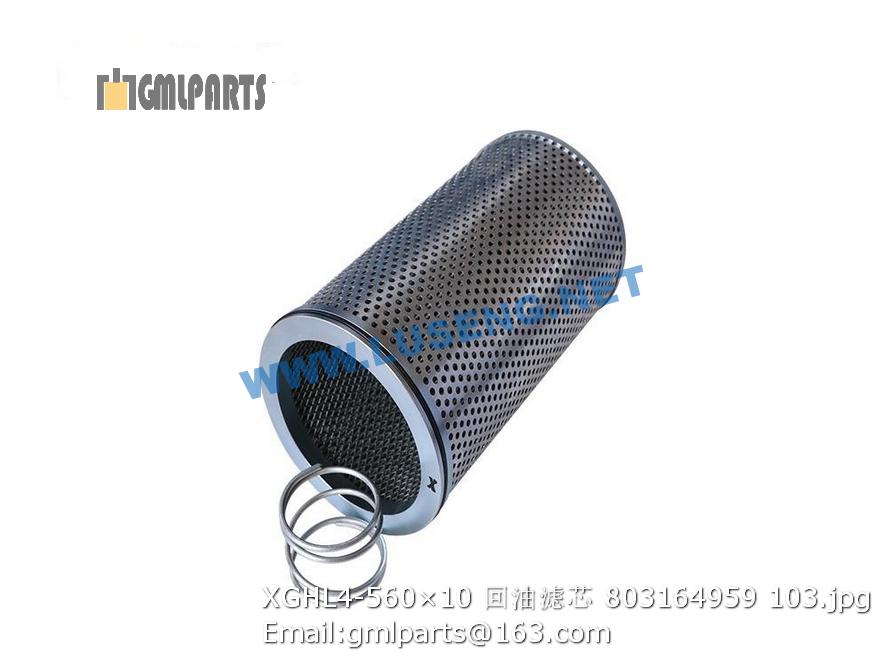

803164959 XGHL4-560×10 FILTER
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲228500184-040201 堵头 Plug 4 808.01.017.01
2 ▲228500184-040202 垫圈 Washer 2 011.07.2763
3 ▲228500184-040203 中盖 Intermediate cover 2 176.01.033.02
4 ▲228500184-040204 O形圈 O-ring 6 176.02.029.01
5 ▲228500184-040205 堵头 Plug 1 016.14.1138
6 ▲228500184-040206 盖 Cover 2 176.01.032.04
7 ▲228500184-040207 磁性螺塞 Magnet plug 5 819.01.610.01
8 ▲228500184-040208 止动环 Snap ring 1 002.02.1429
9 ▲228500184-040209 堵头 Plug 1 176.01.035.04
10 ▲228500184-040210 壳体 Housing 1 176.01.016.02
11 ▲228500184-040211 螺栓 Bolt 2 016.10.2629
12 ▲228500184-040212 透气塞 Vent 1 702.01.003.01
1 ▲228500184-040301 圆螺母 Ring nut 1 193.04.003.01
2 ▲228500184-040302 圆锥滚子轴承 Taper roller bearing 2 005.10.1457
3 ▲228500184-040303 垫片 Shim 1 013.01.0322
4 ▲228500184-040304 圆螺母 Ring nut 2 176.04.009.02
5 ▲228500184-040305 止动片 Locking plate 2 176.04.049.01
6 ▲228500184-040306 六角螺栓 Hexagon bolt 2 016.01.1180
7 ▲228500184-040307 六角螺栓 Hexagon bolt 8 016.03.0689
8 ▲228500184-040308 差速器座 Differential carrier 1 176.04.701.01
9 ▲228500184-040309 防打滑差速器 No-span differential 1 176.04.610.01
10 ▲228500184-040310 弹性垫圈 Spring washer 16 011.04.0758
11 ▲228500184-040311 六角螺栓 Hexagon bolt 16 016.02.1374
12 ▲228500184-040312 圆锥滚子轴承 Taper roller bearing 1 005.09.0762
13 ▲228500184-040313 限位器 Spacer 1 176.04.008.01
14 ▲228500184-040314 垫片 Shim 1 013.01.3283
15 ▲228500184-040315 套 Spacer 1 927.05.003.02
16 ▲228500184-040316 密封圈 Seal 1 001.03.0621
17 ▲228500184-040317 斜齿轮系 Bevel gear set 1 193.04.500.01
1 ▲228500184-040401 螺柱 Wheel stud 24 196.06.006.03
2 ▲228500184-040402 O形圈 O-ring 2 001.05.2944
3 ▲228500184-040403 螺栓 Bolt 20 277.06.013.01
4 ▲228500184-040404 制动盘 Locking plate 2 176.06.074.01
5 ▲228500184-040405 弹性挡圈 Circlip 6 002.01.0636
6 ▲228500184-040406 行星齿轮 Planet gear 6 183.06.006.03
7 ▲228500184-040407 轴承 Bearing 6 183.06.030.04
8 ▲228500184-040408 行星齿轮座 Planet gear carrier 2 176.06.067.02
9 ▲228500184-040409 螺母 Wheel nut 24 006.08.2833
10 ▲228500184-040410 堵头 Plug 2 354.14.631.01
11 ▲228500184-040411 螺钉 Cylinder bolt 4 016.05.0437
12 ▲228500184-040412 齿圈 Ring gear 2 176.06.069.04
13 ▲228500184-040413 圆锥滚子轴承 Taper roller bearing 4 005.10.1427
14 ▲228500184-040414 轮毂 Wheel hub 2 176.06.068.01
15 ▲228500184-040415 密封圈 Seal 2 001.25.1544
16 ▲228500184-040416 定心环 Centering ring 2 176.06.013.01
17 ▲228500184-040417 密封圈 Seal 2 001.01.0668
18 ▲228500184-040418 桥壳 Axle case 2 176.06.071.03
19 ▲228500184-040419 半轴 Half shaft 2 176.06.070.01
20 ▲228500184-040420 减速套 Reduction bushing 20 112.06.022.01
21 ▲228500184-040421 摩擦垫 Friction washer 2 183.06.009.01
