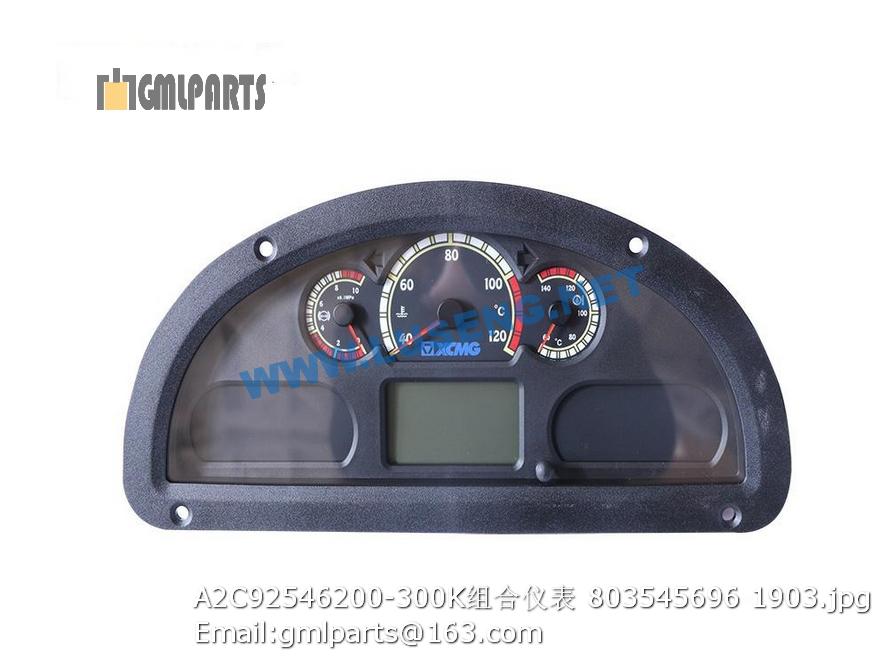

803545696 A2C92546200-300K Alarm Cluster xcmg lw300kn
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲LW1100K-1301001 PV6型皮带 PV6-strap 1
2 ▲LW1100K-1301002 压缩机 Compressor 1
3 ▲LW1100K-1301003 胶管 Hose 1
4 ▲LW1100K-1301004 胶管 Hose 1
5 ▲LW1100K-1301005 胶管 Hose 1
6 ▲LW1100K-1301006 胶管 Hose 1
7 ▲LW1100K-1301007 冷凝器 Condenser 1
8 805000043 螺栓 M10×30 Bolt 4 GB/T 5783-2000
9 805300014 垫圈 10 Washer 4 GB/T93-1987
10 805300017 垫圈10 Washer 4 GB/T97.1-2002
11 805000322 螺栓 M6×16 Bolt 2 GB/T5783-2000
12 805300030 垫圈 6 Washer 6 2 GB/T93-1987
13 805300029 垫圈 6 Washer 6 2 GB/T97.1-2002
14 ▲LW1100K-1301008 贮液器 Liquid-Tank 1 TYJ2-400
15 ▲LW1100K-1301009 贮液器支架 Bracket 1 CD30L14-018
16 ▲LW1100K-1301010 蒸发器 Evaporate 1
17 ▲LW1100K-1301011 新风管 Pipe 1 φ50×160
18 801902713 喉箍B45-70 Clamp 2 QC/T619-1999
19 ▲LW1100K-1301012 新风盒 Air Cleaner 1 CDKT87-040
20 805000033 螺栓M8×16 Bolt 5 GB/T5783-2000
21 805300010 垫圈 8 Washer 5
22 805300069 垫圈 8 Washer 8 5
23 253000546 胶垫 cushion 1 空调带
24 ▲LW1100K-1301013 吸水球 Hydra Sponge 1 CDKT-XSQ-01
25 800511391 保温胶管=1600 Pipe 2 空调带
26 801902714 不锈钢吼箍 51-70 Clump 8 QC/T619-1999
27 805000048 螺栓M12X35 Bolt 4 GB/T5783-2000
28 805300018 垫圈12 washer 12 4 GB/T93-1987
29 805300020 垫圈12 Washer 4 GB/T97.1-2002
30 801902709 喉箍 B25-38 CLAMP 4 QC/T619-1999
31 253500154 冷水管 Pipe 1
32 253400153 热水管 Pipe 1
1 253500125 压缩机安装架 Bracket 1
2 805000713 螺栓 M10×45 Bolt 1 GB/T5783-2000
3 805300014 垫圈 10 Washer 3 GB/T93-1987
4 805300017 垫圈10 Washer 5 GB/T97.1-2002
5 805200048 螺母 M10 Nut 2 GB/T6170-2000
6 805000073 螺栓M10×115 Bolt 1 GB/T5782-2000
7 805000036 螺栓 M10×90 805000036 1 GB/T5782-2000
1 ▲LW1100K-1303001 蒸发器上盖 Top Cover 1
2 ▲LW1100K-1303002 蒸发加热芯体 Evaporator Core 1
3 ▲LW1100K-1303003 回气管组件 Return Pipe 1
4 ▲LW1100K-1303004 进液管组件 Inlet Pipe 1
5 ▲LW1100K-1303005 风机底板 Bottom-Board 1
6 ▲LW1100K-1303006 蒸发风机 Evaporator Blower 1
7 ▲LW1100K-1303007 蒸发器隔板 Evaporator Board 1
8 ▲LW1100K-1303008 膨胀阀 Expansion Valve 1
9 ▲LW1100K-1303009 温度探头 Temperature Spy 1
10 ▲LW1100K-1303010 蒸发器下壳体组件 Cabinet Components 1
11 ▲LW1100K-1303011 芯体固定板 Fixing Board 1
12 ▲LW1100K-1303012 过管圈 Protective Ring 3
13 ▲LW1100K-1303013 芯体固定板1 Fixing Board 1
14 ▲LW1100K-1303014 组合六角螺栓 Bolt 1
