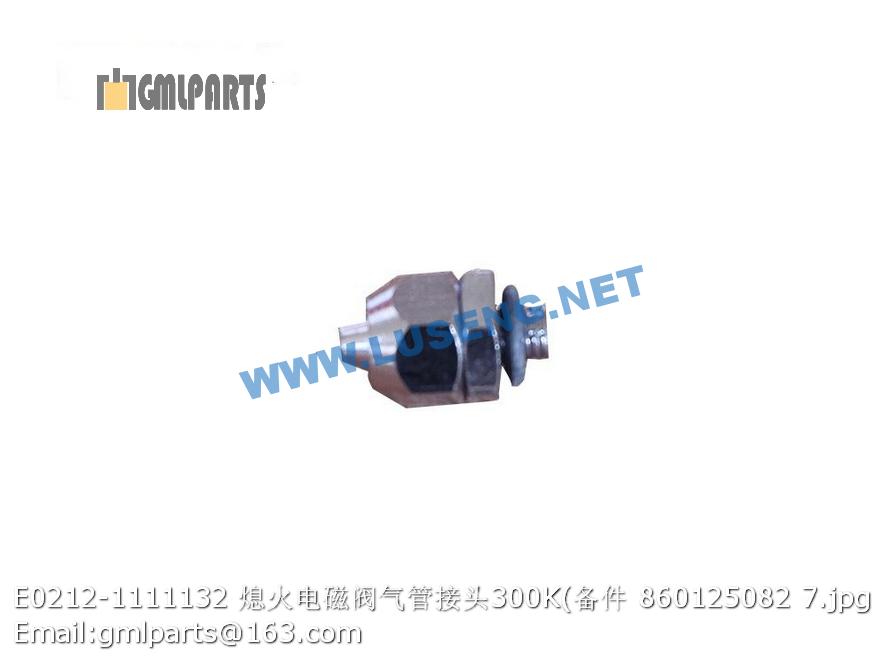

860125082 E0212-1111132 Pipe joint 300K

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲800302339-4001 主减速器 Carrier 1
2 ▲800302339-4002 六角螺栓M12×38 bolt 14
3 ▲800302339-4003 弹垫12 Washer 14
4 ▲800302339-4004 油封SG160×190×16 Oil Seal 2
5 ▲800302339-4005 销(圆柱)φ14×40 Circlip 4
6 ▲800302339-4006 轴承(锥滚)30226 Bearing 2
7 ▲800302339-4007 轮毂 Hub 2
8 ▲800302339-4008 轴承(锥滚)32228 Bearing 2
9 ▲800302339-4009 轮辋螺栓 bolt 32
10 ▲800302339-4010 轮辋螺母M22×1.5右旋 nut 32
11 ▲800302339-4011 支撑盘 suppurt Disc 2
12 ▲800302339-4012 挡环 Washer 2
13 ▲800302339-4013 行星架 Spider 2
14 ▲800302339-4014 内齿圈 Ring Gear 2
15 ▲800302339-4015 行星架支承 Gear support 2
16 ▲800302339-4016 销(圆柱)φ16×40 Circlip 4
17 ▲800302339-4017 组合垫圈18 Washer 4
18 ▲800302339-4018 螺塞M18×1.5 Plug 4
19 ▲800302339-4019 圆螺母 nut 2
20 ▲800302339-4020 弹垫10 Washer 22
21 ▲800302339-4021 螺栓M10×25 bolt 18
22 ▲800302339-4022 端盖 plate 2
23 ▲800302339-4023 组合垫圈14 Washer 2
24 ▲800302339-4024 螺塞M14×1.5 Plug 2
25 ▲800302339-4025 齿轮半轴 gear axis 2
26 ▲800302339-4026 钢球φ11/16″ steel ball 2
27 ▲800302339-4027 挡销 Circlip 2
28 ▲800302339-4028 行星轮 Side pinion 6
29 ▲800302339-4029 内六角螺钉M10×18 bolt 4
30 ▲800302339-4030 钢球φ3/8″ steel ball 6
31 ▲800302339-4031 O型密封圈φ265×5.3 O-ring 2
32 ▲800302339-4032 行星轴 gear axis 6
33 ▲800302339-4033 螺栓M16×1.5×50 bolt 32
34 ▲800302339-4034 弹垫16 Washer 36
35 ▲800302339-4035 行星轮挡圈 Washer 12
36 ▲800302339-4036 滚针Φ5×50 roller 186
37 ▲800302339-4037 隔套 sheath 12
38 ▲800302339-4038 O型密封圈φ440×3.5 O-ring 2
39 ▲800302339-4039 内六角螺钉M12×30 bolt 8
40 ▲800302339-4040 制动盘 Braker 2
41 ▲800302339-4041 螺栓M16×1.5×55 bolt 24
42 ▲800302339-4042 制动器防护罩 Braker protector 2
43 ▲800302339-4043 盘式制动器 Braker 1
44 ▲800302339-4044 桥壳总成 Drive axle 1
45 ▲800302339-4045 通气塞总成 Plug 1
46 ▲800302339-4046 螺塞M24×1.5 Plug 2
47 ▲800302339-4047 组合垫圈24 Washer 2
1 ▲800302339-400101 输入法兰 Input flange 1
2 ▲800302339-400102 螺母M33×1.5 Nut M33 × 1.5 1
3 ▲800302339-400103 垫片 Gasket 1
4 ▲800302339-400104 油封SG65X85X12 Seal SG65X85X12 1
5 ▲800302339-400105 密封盖 Closures 1
6 ▲800302339-400106 螺栓M14X55 Bolt M14X55 8
7 ▲800302339-400107 弹垫14 Spring washer 14 8
8 ▲800302339-400108 轴承(锥滚)31310(27310E) Bearing (tapered roller) 31310 (27310E) 1
9 ▲800302339-400109 (主动螺旋伞齿轮)角齿 (Spiral bevel gear) angle gear 1 前桥左旋
9 ▲800302339-400110 (主动螺旋伞齿轮)角齿 (Spiral bevel gear) angle gear 1 后桥右旋
10 ▲800302339-400111 调整垫片 Adjusting washer 1
11 ▲800302339-400112 轴承套 Bearing sleeve 1
12 ▲800302339-400113 垫片 Gasket 1
13 ▲800302339-400114 隔套 Spacer 1
14 ▲800302339-400115 轴承(锥滚)31311(27311E) Bearing (tapered roller) 31311 (27311E) 1
15 ▲800302339-400116 堵头 Plug 1
16 ▲800302339-400117 组合垫圈27 Combination washer 27 1
17 ▲800302339-400118 轴承(柱滚)NUP2306(92606) Bearing (cylindrical roller) NUP2306 (92606) 1
18 ▲800302339-400119 轴用挡圈30 Shaft Collar 30 1
19 ▲800302339-400120 托架 Bracket 1
20 ▲800302339-400121 轴承(锥滚)32215(7515E) Bearings (tapered roller) 32215 (7515E) 2
21 ▲800302339-400122 调整螺母 Adjusting nut 2
22 ▲800302339-400123 差速器左壳 Differential left shell 1
23 ▲800302339-400124 防滑差速锁 Non-slip differential lock 1
24 ▲800302339-400125 平垫22 Flat pad 22 4
25 ▲800302339-400126 托架螺栓M22×2×100 Carriage bolt M22 ​​× 2 × 100 4
26 ▲800302339-400127 轴承盖 Bearing cap 2
27 ▲800302339-400128 锁片 Locking plate 2
28 ▲800302339-400129 锁片 Locking plate 2
29 ▲800302339-400130 螺栓M8X20 Bolt M8X20 4
30 ▲800302339-400131 差速器壳螺栓M14×1.5×100 Differential case bolt M14 × 1.5 × 100 8
31 ▲800302339-400132 平垫 14 Flat pad 14 8
32 ▲800302339-400133 差速器右壳 Right differential shell 1
33 ▲800302339-400134 螺栓M16×1.5×50 Bolt M16 × 1.5 × 50 12
34 ▲800302339-400135 (大螺旋伞齿轮)盆齿 (Large spiral bevel gear) teeth basin 1 前桥左旋
34 ▲800302339-400136 (大螺旋伞齿轮)盆齿 (Large spiral bevel gear) teeth basin 1 前桥左旋
35 ▲800302339-400137 螺母10级M16 Nut M16 10 12
36 ▲800302339-400138 平垫16 Flat pad 16 12
