Description

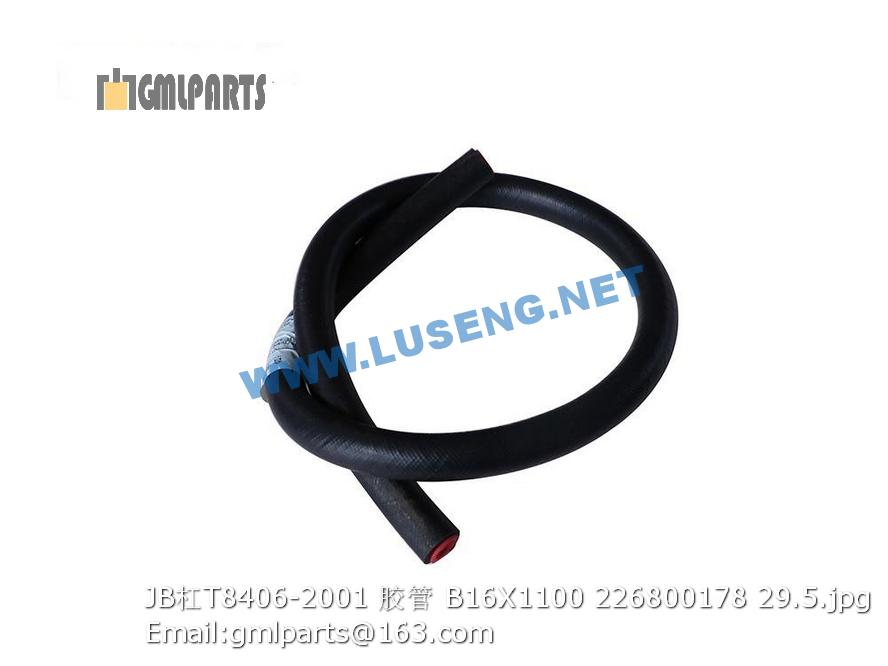

226800178 JB/T8406-2001 HOSE B16X1100
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲225701587-040801 顶盖-变速器 roof panel-gearbox 1 1702116-996
2 ▲225701587-040802 止动螺钉 retaining bolt 1 1702124-SG
3 ▲225701587-040803 堵盖总成 blanking cover assembly 1 1702015-950
4 ▲225701587-040804 换档拨头-顶盖 shifting block-roof panel 1 1702126-SG
5 ▲225701587-040805 止柱 locking column 1 1702146-1H
6 ▲225701587-040806 大螺塞 big plug screw 2 1702148-1H
7 ▲225701587-040807 大弹簧 big spring 1 1702147-1H
8 ▲225701587-040808 钢球-止柱自锁用 locking ball-locking column self-latch 2 Q967105
9 ▲225701587-040809 小弹簧-三档 small spring-five and six gear band 1 1702154-1H
10 ▲225701587-040810 小螺塞 small plug screw 2 1702156-1H
11 ▲225701587-040811 选档臂 selector lever 1 1703012-1131A
12 ▲225701587-040812 小弹簧-倒一二档 small spring-booster and reverse 2 1702153-1H
13 ▲225701587-040813 止柱 locking column 1 1702146-1100
14 ▲225701587-040814 通气塞 air plug 1 1702091-11
15 ▲225701587-040815 十字头螺钉-紧固挡片用 crosshead bolt-fasten the splash block 1 Q2160406
16 ▲225701587-040816 挡片-通气孔 splash block-venthole 1 1702158-950
17 ▲225701587-040817 轴用弹性挡圈 gear elastic shielding ring 1 Q43116
18 ▲225701587-040818 垫圈 washer 2 Q40116
19 ▲225701587-040819 O形圈 O-shaped packing 1 Q7342416B
20 ▲225701587-040820 选档轴及拨杆总成 selector lever and control lever assembly 1 1702130-1103
21 ▲225701587-040821 换档轴及换档臂总成 shifting gear and shifting arm assembly 1 1702120-1105A
22 ▲225701587-040822 O形圈 O-shaped packing 2 Q7342424B
23 ▲225701587-040823 空档信号开关 Neutral Signal Switch 1 3774010-1301
24 ▲225701587-040824 弹簧 spring 1 1702163-SG
25 ▲225701587-040825 钢球 locking ball 1 Q9669505
1 ▲225701587-040901 上盖 upper cover 1 1702021-1126
2 ▲225701587-040902 圆柱销 cylindrical pin 2 Q5220618
3 ▲225701587-040903 堵盖总成 blanking cover assembly 5 1702015-950
4 ▲225701587-040904 变速叉-第三、四速 transmission fork-third and fourth speed 1 1702062-1100
5 ▲225701587-040905 变速叉轴-第一二速 change shaft-first and second speed 1 1702057-1100
6 ▲225701587-040906 变速叉轴-第三速 Change shaft-third speed 1 1702061-1100A
7 ▲225701587-040907 变速叉-第一二速 transmission fork-first and second speed 1 1702058-1100
8 ▲225701587-040908 变速叉-倒一二速 transmission fork-first and second reversing speed 1 1702054-1100
9 ▲225701587-040909 变速叉轴-倒一二速 change shaft-reversing first-and-second speed 1 1702053-1126
10 ▲225701587-040910 弹簧-变速叉轴自锁用 Spring-for Change shaft self-latch 3 1702026-11
11 ▲225701587-040911 钢球-变速叉轴自锁用 locking ball-change shaft self-latch 3 Q966955
12 ▲225701587-040912 六角头螺塞 hexagonal nut 1 Q61714
13 ▲225701587-040913 互锁块-变速叉轴自锁用 self-latch block- change shaft self-latch 2 1702028-950
14 ▲225701587-040914 互锁锁-变速叉轴自锁用 Self-latch- change shaft self-latch 1 1702029-950
15 ▲225701587-040915 变速导块-倒一二速 shifting slider-first and second speed reversing 1 1702056-1100
16 ▲225701587-040916 变速导块-第三速 shifting slider-third speed 1 1702066-1100
17 ▲225701587-040917 弹簧销-锁变速叉及导块用 spring pin-lock the transmission fork and the shifting slider 3 Q5280535
