Description

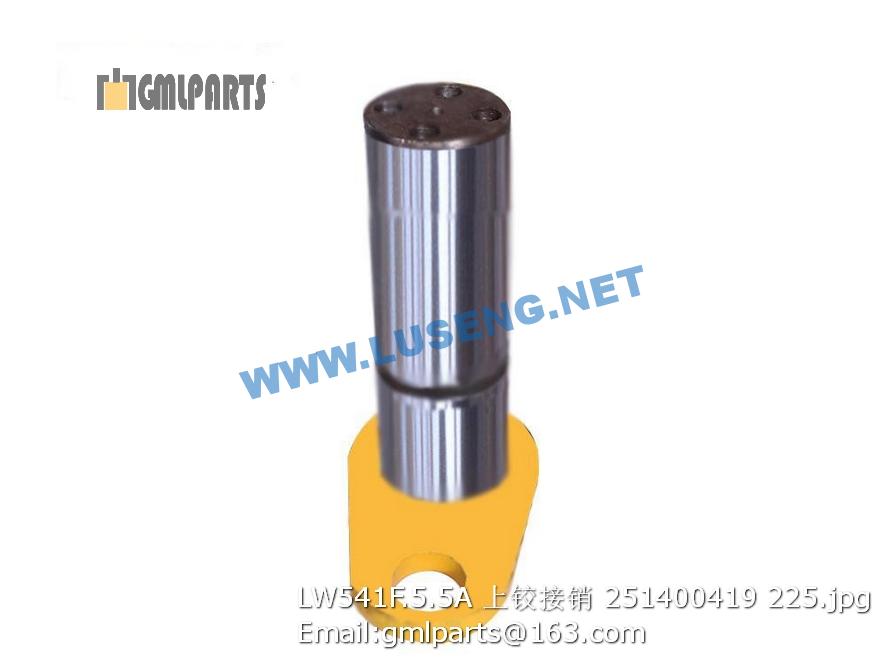

251400419 LW541F.5.5A Upper Articulation Pin
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 860118429 行程开关 Limitative switch 2
2 ▲226800286-090202 开关线束 Switch wire 1
3 ▲226800286-090203 主体框架 Main frame 1
4 ▲226800286-090204 电机 Motor 1
1 819906087 油门控制 ACCELEROGRAPH CONTROL 1
2 226802147 铭牌 Name plate 1 XS202H
2 226802152 铭牌 Name plate 1 XS222H
3 805500034 铆钉 3×10 Rivet 12
4 228700142 液压油位标示 The hydraulic oil level 1 XS202.17-2
5 228700143 电源总开关标示 INDICATION OF SWITCH 1 XS202J.17-3
6 269901777 投诉电话标志 DECAL OF COMPLAINT HOTLINE 2
7 239900218 起吊处标记 HOOK decal 4 F1012
8 226802153 XS222H右标记 Right decal “XS222H” 1 XS222H
8 226802148 XS202H右标记 Right decal “XS202H” 1 XS202H
9 239900221 碰撞区危险标记 WARNING SIGN 2 A1002
10 819906091 刹车油量示警 Alarm for brake oil level 1 A6293
11 228600226 XCMG右标记 XCMG RIGHT LOGO 1
12 239900224 燃油加油标记 DECAL OF FUEL REFILLING 1 F1005
13 228600227 徐工集团大标记 XCMG MAIN LOGO 1
14 226800336 轮胎气压标记 Indication of tyre pressure 2 XS202J.17-3
15 228600228 XCMG左标记 XCMG LEFT LOGO 1
16 226802149 XS202H左标记 Left decal “XS202H” 1 XS202H
16 226802154 XS222H左标记 Left decal “XS222H” 1 XS222H
17 228600230 徐工集团小标记 XCMG SMALL LOGO 1
18 226802155 XS222H小标记 decal “XS222H” 1 XS222H
18 226802150 XS202H小标记 decal “XS202H” 1 XS202H
