Description

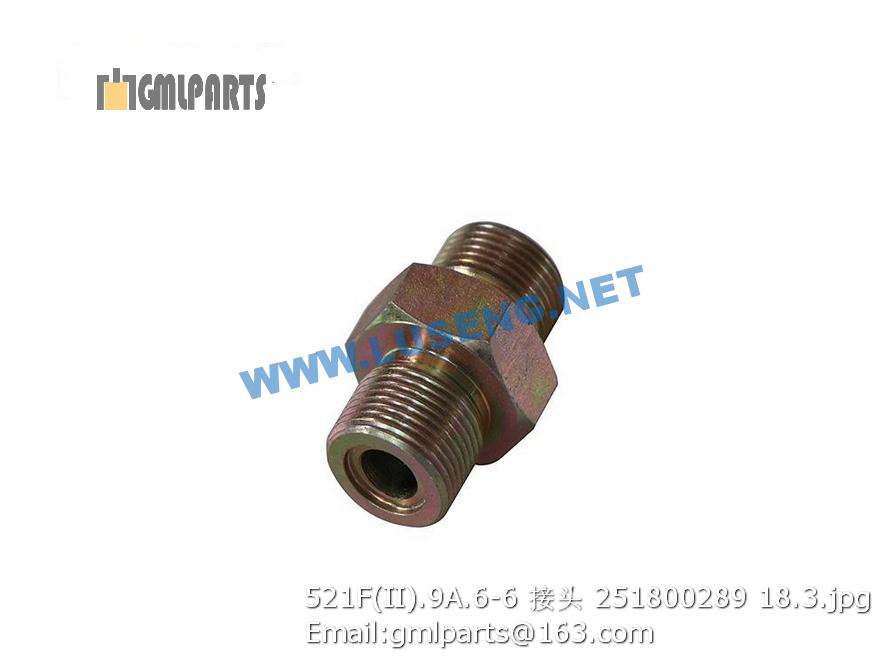

251800289 521F(II).9A.6-6 Joint
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 860118415 突缘叉 Joint 2 500K.03.3-01
2 ▲WL50G-011401 孔用弹簧垫圈 47 Circlip 8 GB/T893.1-1986
3 860117405 万向节总成 Gimbal 2 EQ153
4 ▲WL50G-011402 万向节叉 Joint 1 500K.03.2-03
5 ▲WL50G-011403 轴管 89×4 Pipe 1 500KⅡ.03.2-01
6 ▲WL50G-011404 油杯 M6x1 nipple 1 JB/T940.1-1995
7 ▲WL50G-011405 花键套 Pipe 1 Z50G.5C-05A
8 ▲WL50G-011406 防尘套 Pipe 1 500k.03.3-02A
9 ▲WL50G-011407 轴叉 Joint 1 500K.03.3-04A
1 ▲WL50G-011501 螺栓M12X1.25X55 10.9s Bolt 8 GB/T5785-2000
2 ▲WL50G-011502 弹簧垫圈12 Circlip 8 GB/T93-87
3 860118416 万向节总成 Gimbal 2 T160A
4 ▲WL50G-011503 联接叉 Joint 1 Z50B.5B-4-1
5 ▲WL50G-011504 轴管 φ89×4 Pipe 1 500KⅡ.03.3-01
6 ▲WL50G-011505 油杯 M6X1 nipple 1 JB/T7940.1-1995
7 ▲WL50G-011506 防尘套 Pipe 1 Z50E.7C-2A
8 ▲WL50G-011507 花键轴 Spline shaft 1 YL27.7-2A
9 ▲WL50G-011508 联接叉 Joint 1 Z50B.5B-4-2
10 ▲WL50G-011509 花键套 Pipe 1 YL27.7-3A
1 ▲WL50G-011601 轮辋体 Rim Base 1 Z5G(VII).1.4.1
2 ▲WL50G-011602 锁圈 Lock Ring 1 19.5/2.5-25A-1
3 ▲WL50G-011603 挡圈 Side Ring 1 19.5/2.5-25A-3
4 ▲WL50G-011604 座圈 Bead Seat Band 1 19.5/2.5-25A-4
5 ▲WL50G-011605 止动块 Drive 1 19.5/2.5-25A-5
1 252101552 支架 Bracket 1
2 805000727 螺栓M10X25 Bolt 4 GB/T5783-2000
3 805300014 垫圈 10 Washer 12 GB/T93-1987
4 805300017 垫圈10 Washer 12 GB/T97.1-2002
5 252109153 支架 Bracket 1
6 805000043 螺栓 M10×30 Bolt 4 GB/T 5783-2000
7 252109151 支架 Bracket 1
8 805000715 螺栓 M12×25 Bolt 1 GB/T 5783-2000
9 805300018 垫圈12 washer 12 5 GB/T93-1987
10 805000713 螺栓 M10×45 Bolt 2 GB/T5783-2000
11 252101836 消声器总成 Muffler 1
12 252109150 进气管 Pipe 1
13 801900251 T型抱箍φ112 Clamp 1 11ZH4-9921
14 801900210 T型抱箍 φ146 clamp 1
15 805000278 螺栓 M10×55 Bolt 1 GB/T 5783-2000
16 252109152 支架 Bracket 1
17 805000518 螺栓M10X60 Bolt 1
18 800105240 柴油机空气滤清器 AIR FILTER 1 AH24182-1RMA
19 803610215 阻力传感器 sensor 1
20 252109160 支架 Bracket 2
21 805000045 螺栓M12X40 Bolt 4 GB/T 5783-2000
22 805200049 螺母 M12 Nut 4 GB/T6170-2000
23 805300020 垫圈12 Washer 4 GB/T97.1-2002
24 252109156 接管 Pipe 1
25 252109163 胶管 Hose 1
26 801902726 T型抱箍165 Clamp 2
27 800101467 预滤器总成 Prefilter 1 KA50-5
