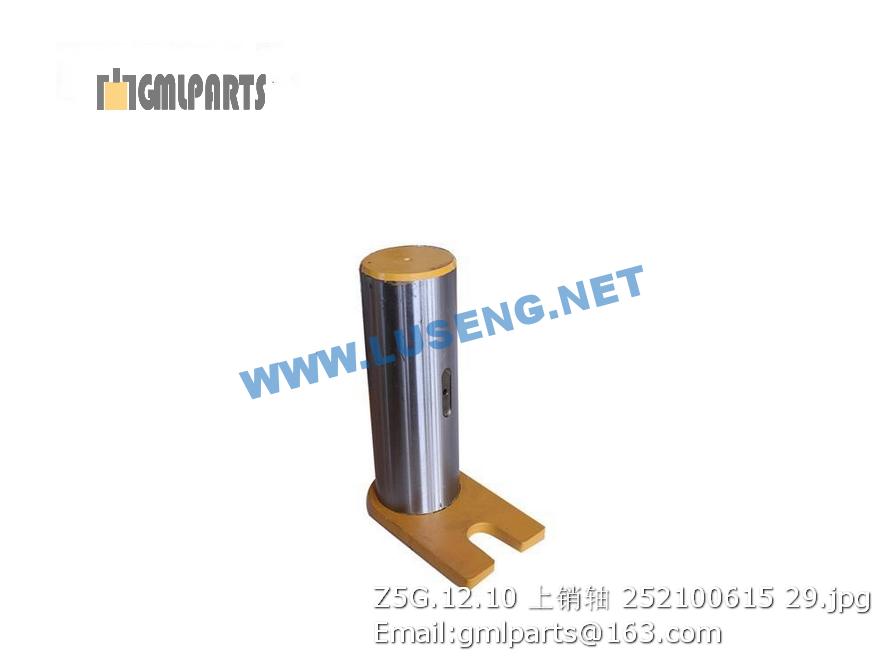

252100615 Z5G.12.10 PIN XCMG
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 800511490 关节轴承GAC57S/K Bearings 4
2 229600491 V型圈 Rubber 4
3 229600499 十字轴 Steering link 1
4 229600496 调整垫 Plate 2
5 229600497 盖 Cover 1
6 805300010 垫圈 8 Washer 12
7 805000089 螺栓 M8X35 Bolt 12 GB/T 5783-2000
8 229600500 垫 Plate 6
9 229600501 端盖 Port 1
10 805300011 垫圈 16 Washer 10 GB/T 93-1987
11 805000040 螺栓M16×60 Bolt 8 GB/T5783-2000
12 229600493 L型圈 Rubber 1
13 229600498 盖 Cover 1
14 805301346 垫圈 8 Washer 1 GB/T848-1985
15 805000070 螺栓M8X10 Bolt 1
1 223100206 油位螺栓 Oil level 1
2 805300025 垫圈 12 Washer 1
3 805000048 螺栓M12X35 Bolt 40 GB/T5783-2000
4 805200098 螺母 M12 Nut 48 GB/T889.1-2000
5 805301374 垫圈 12(达克罗) Bolt 64
6 229701120 减振块 Shock absorber 7 B
6 229701121 减振器 Shock absorber 7 A
7 229600530 板 Plate 1
8 805000032 螺栓M12X60 Bolt 4 GB/T5782-2000
9 229600531 连接圈 Motor bracket 1
10 229600532 花键套 Splinded sleeve 1
11 230100203 轴承压板 Bearing plate 1
12 805100064 螺钉 M8×20 Bolt 8 GB/T70.1-2008
13 805300010 垫圈 8 Washer 8
14 239900236 透气螺栓 Breath cap 1
15 801100314 O形密封圈Φ165×3.55 O-ring 1
16 805000023 垫圈20 Washer 805000023 8
17 229600533 驱动轴外轴承座 Bearing-housing outer 1
18 800511397 框架轴承 bearing 1 JM822049-90N01
19 229600511 轮子焊接 Drum 1
19 229600753 轮子焊接 Drum 1
20 227300178 螺塞M30X1.5 Plug 1
21 805300055 垫圈 30 WASHER 1 JB982-77
22 803164087 密封圈B160X190X15 sealing 1 GB9877.1-88
23 801100250 O形密封圈Φ218×5.30 O-ring 1
24 229600535 轴承座 Bearing housing 1
25 229600759 振动轴 Euenfric shaft 1 B
25 229600523 振动轴 Euenfric shaft 1 A
26 229600534 轴承座 Bearing housing 1
27 800511394 振动轴承22312 Bearing 2
28 801100251 O形密封圈Φ236×5.30 O-ring 1
29 805000727 螺栓M10X25 Bolt 6 GB/T5783-2000
30 805301373 垫圈10(达克罗) Washer 6
31 230100207 轴承盖 Bearing cover 1
32 803166321 O形密封圈Φ132X3.55 O-ring 1
33 229600764 驱动板 Drive plate 1 B
33 229600537 驱动板 Drive plate 1 A
34 805000715 螺栓 M12×25 Bolt 16 GB/T 5783-2000
35 805000079 螺栓M14×45 Bolt 12 GB/T5783-2000 A
35 805000092 螺栓M16×80 Bolt 9 GB/T5783-2000 B
36 805301376 垫圈14 Washer 14 12 A
36 805301378 碟垫18 Washer 9 B
37 805301377 垫圈 16(达克罗) Wahser 16
38 805000026 螺栓 M16×45 Bolt 16 GB/T 5783-2000
39 801101755 加油管 GREASE CUP 1
40 805000017 螺栓 M8×25 bolt 1 GB/T5783-2000
