Description

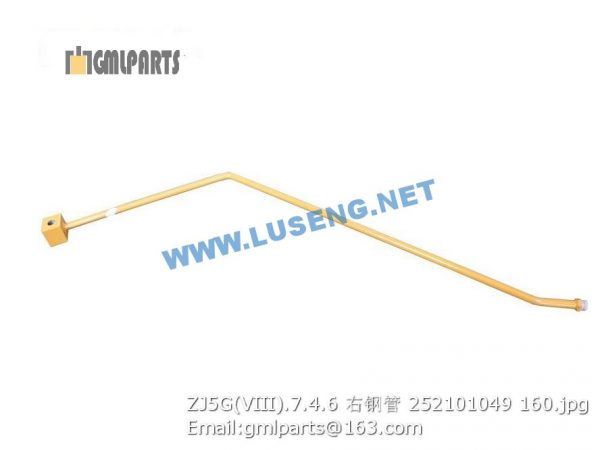

252101049 ZJ5G(VIII).7.4.6 TUBE XCMG

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 803075354 销轴 Pin shaft 2
2 803075353 卡片 Pin 2
3 805600369 销轴 Pin shaft 1 GB/T91-2000
4 803044841 槽母M27×2厚30 nut 1 GB/T6178-1986 GB/T6178-1986
5 803044776 格莱圈90×74.5×6.3 Glyd Ring 1
6 803044775 孔用支承环 retaining Ring 1
7 803044837 活塞 piston 1
8 803164057 O型圈34×3.5 O-ring 1 GB1235-76 GB1235-76
9 803044863 缸体 Cylinder 1
10 803044865 活塞杆 piston shaft 1
11 803044777 轴用支承环 retaining Ring 2
12 803044652 斯特封40×55×6.3 seal 1
13 803166332 O型圈90×3.1 O-ring 1 GB1235-76 GB1235-76
14 803044840 导向套 Guide sleeve 1
15 803044769 孔用卡键 pin 1
16 803044770 挡环 Washer 1
17 805403119 轴用弹挡d80 Backup Ring 1 GB894.1-86 GB894.1-86
18 803044655 轴封40×50×10 Shaft seal 1
19 803044656 防尘圈d40×48×5 Dustproof ring 1
20 805100064 螺钉 M8×20 Bolt 4 GB/T70.1-2008 GB/T70.1-2000
21 805300010 垫圈 8 Washer 4 GB/T93-1987
1 ▲230500680-8-9-1 销 轴 Pin 2
2 ▲230500680-8-9-2 螺钉M8X20 Bolt 4 GB70-85 GB70-85
3 ▲230500680-8-9-3 挡板 Plate 2
4 ▲230500680-8-9-4 缸体 Cylinder 1
5 ▲230500680-8-9-5 螺母M20X1.5 Nut 1
6 ▲230500680-8-9-6 开口销5X45 Pin 1
7 ▲230500680-8-9-7 O型圈21.7X3.5 O-ring 1
8 ▲230500680-8-9-8 山型圈90X75X12 Seal 1
9 ▲230500680-8-9-9 挡圈90X80X2 Washer 2
10 ▲230500680-8-9-10 活塞 Piston 1
11 ▲230500680-8-9-11 斯特封35X4.2 Seal 1
12 ▲230500680-8-9-12 支撑环d35X9.5X2.5 Support ring 1
13 ▲230500680-8-9-13 轴用密封UN35X45X6 Seal 1
14 ▲230500680-8-9-14 O型圈34.4X3.1 O-ring 1
15 ▲230500680-8-9-15 防尘圈35X45.5X6 Dustproof ring 1
16 ▲230500680-8-9-16 导向套 Back-up ring 1 1 1
17 ▲230500680-8-9-17 O型圈84.4X3.1 O-ring 1
18 ▲230500680-8-9-18 挡圈90×8.5×1.5 Washer 1
19 ▲230500680-8-9-19 活塞杆 Piston rod 1
20 ▲230500680-8-9-20 堵Z1/2 Block 1
21 860118270 蟹行油缸修理包 Bag 1
1 803004268 齿轮马达 Motor 1
2 805002098 螺栓 M8×30 10.9 Bolt 4
3 805300010 垫圈 8 Washer 4
4 803168919 软管总成 Hose 1
5 239900409 软管总成 Hose 1
6 803164860 方形法兰接头 Adapter 1
7 803164635 三通接头 adapter 1
8 803164565 测压接头 adapter 1
9 803004022 齿轮泵 Pump 1
10 805100036 内六角螺钉 M10×25 Screw 2 GB/T70.1-2000
11 805300014 垫圈 10 Washer 2 GB/T93-1987
12 803164766 接头 JOINT 1
13 803164636 三通接头 Adapter 2
14 239901805 软管总成 Hose 1
15 803164621 接头 adapter 3
16 803163562 法兰弯接头 Flange Elbow 1
17 239900419 软管总成 Hose 1
18 803165281 软管总成 Hose 1
19 803164758 接头 Adapter 1
20 803164849 接头 Joint 1
21 803164630 弯头 Joint 1
22 803164691 变径接头 Joint 3
23 803164632 接头 Adapter 3
24 ▲230500680-8-12-1 键4X6.5 Key 1
25 ▲230500680-8-12-2 垫圈14 Washer 1
26 ▲230500680-8-12-3 螺母M14X1.5 Nut 2
