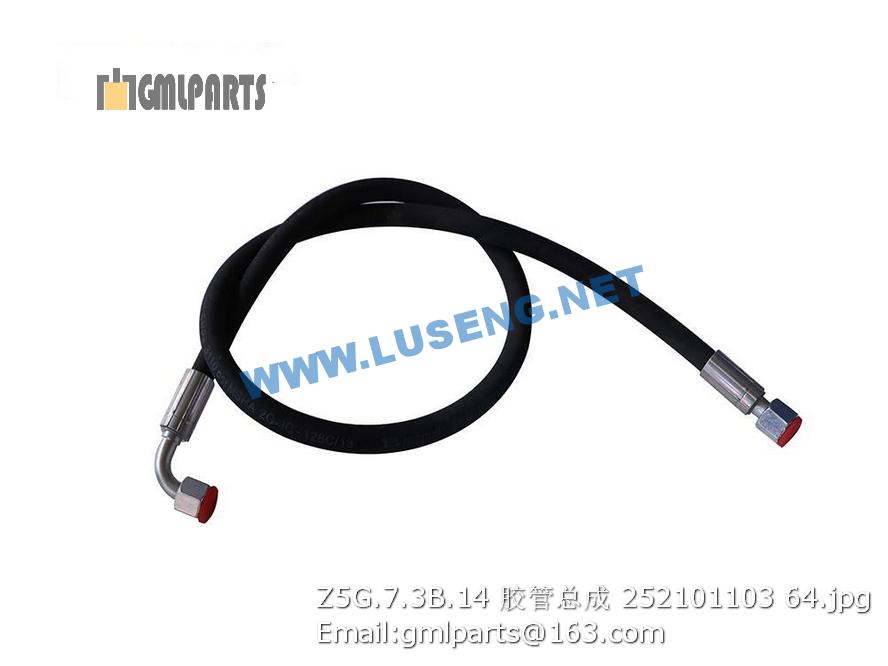

252101103 Z5G.7.3B.14 HOSE
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 805000435 螺栓M8x35 Bolt 2
2 805301384 垫圈 8(达克罗) Washer 4
3 228901634 压缩机支座 Pedestal 1
4 228901635 调整套 Sleeve 1
5 805000020 螺栓 M8×30 Bolt 1 GB/T5783-2000
6 228901636 压缩机调整支架 Bracket 1
7 805100130 螺钉M8×35 Bolt 1 GB/T70.1-2008
8 805200080 螺母M10 Nut 1
9 805301373 垫圈10(达克罗) Washer 3
10 ▲228901952-120301 压缩机 Compressor 1 T0500011
11 805000029 螺栓 M10×40 Bolt M10×40 1 GB/T5783-2000
12 805100147 螺钉 M10×40 Bolt 2 GB/T70.1-2002
1 ▲228901952-120401 冷凝风机 CONDENSER FAN 2 T0230001
2 ▲228901952-120402 冷凝器壳体 CONDENSER SHELL 1 1000752237
3 ▲228901952-120403 组合六角螺栓 BOLT 12 Z01054
4 ▲228901952-120404 冷凝芯体 CORE 1 T0210062
1 ▲228901952-120501 蒸发加热芯体 CORE 1 T0110108
2 ▲228901952-120502 蒸发器上盖 COVER 1 T0131301
3 ▲228901952-120503 蒸发器下壳体组件 DRAIN OF EVAPORATOR 1 T0131303
4 ▲228901952-120504 风机底板 FAN SOLEPLATE 1 T0131304
5 ▲228901952-120505 护罩 HOOD 1 T0131315
6 ▲228901952-120506 回气管组件 HOSE 1 T0180274
7 ▲228901952-120507 进液管组件 HOSE 1 T0180275
8 ▲228901952-120508 控制面板 CONTROL PANEL 1 T0400010
9 ▲228901952-120509 膨胀阀 EXPANDING VALVE 1 T0800009
10 ▲228901952-120510 蒸发风机 EVAPORATING MACHINE 1 T0820064
11 ▲228901952-120511 风口 PLACE WITH A DRAUGHT 6 T0900363
12 ▲228901952-120512 组合螺栓 BOLT 8 Z01053
13 ▲228901952-120513 组合六角螺栓 BOLT 20 Z01054
