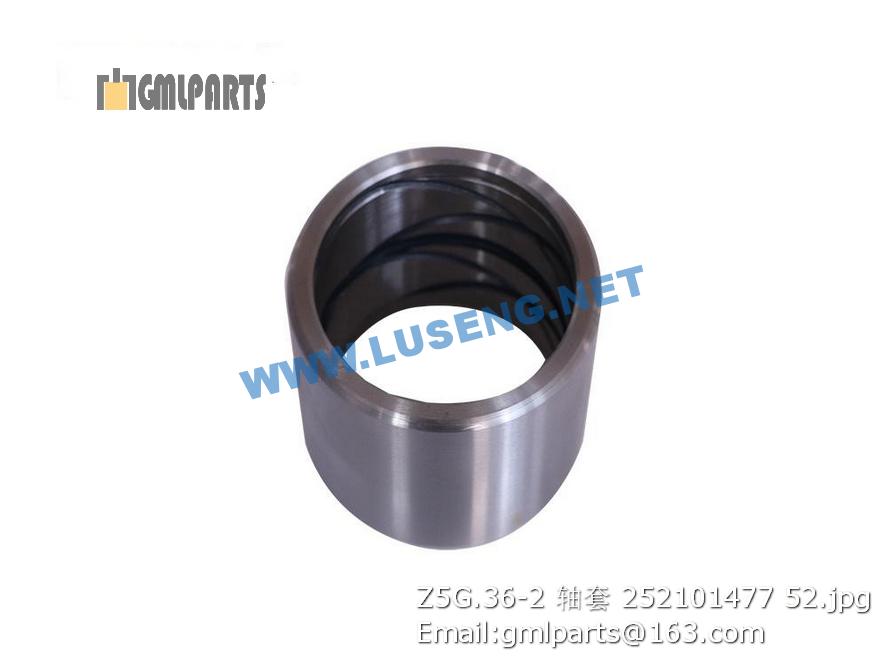

252101477 Z5G.36-2 BUSHING XCMG

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 229600557 驱动盘 Drive plate 1
2 229600563 花键轴 Splined shaft 1
3 800511441 轴承6209 Bearing 3 GB/T276-1994
4 805000048 螺栓M12X35 Bolt 6 GB/T5783-2000
5 805300018 垫圈12 washer 12 6 GB/T93-1987
6 229600871 联接盘 Flywheel cover 1
7 801100112 O形密封圈115×3.55 O-ring 1 GB/T3452.1-1992
8 803164088 骨架油封 Seal B50X70X8F 1 GB/T9877.1-1988
9 227300278 磁性螺塞M20×1.5 Plug 1
10 229602057 驱动齿轮 Drive Gear 1 A
10 230501115 驱动齿轮 Driver gear 1 B
11 800500185 球轴承6210(50X90X20) Ball Bearing 3 GB／T276-94
12 229600561 螺塞 Plug 1
13 805300070 组合垫圈 48 4
14 229600870 分动箱体 Gearing box 1
15 229600568 堵 Plug 1
16 229600565 闷盖 Cover 1
17 227000277 输出齿轮 Output bear 2
17 229602056 输出齿轮 Output Gear 2 A
18 229600570 调整垫 Adjusting washer 2 B
19 801100082 O型密封圈 O-ringφ106×3.55 2 GB/T3452.1-1992
20 800901303 透气塞M12 Filter plug 1
21 229600560 轴承座 Bearing housing 1
22 229600569 轴承座 Bearing housing 1
23 805300014 垫圈 10 Washer 16 GB/T93-1987
24 805100036 内六角螺钉 M10×25 Screw 8 GB/T70.1-2000
25 805000714 螺栓 M10×20 Blot 8 GB/T5783-2000
26 229600566 调整垫 Adjuster 1
1 229600619 防滑贴 Protective cover 1 A
1 229602019 防滑贴 Protective cover 1 B
2 229602387 平台框架 Platform 1 A
2 229602395 平台框架 Platform 1 B
3 805200098 螺母 M12 Nut 4 GB/T889.1-2000
4 229600614 止动垫 Pad 4
5 229600616 垫板 Board 4
6 229600912 减震器 Shock absorber 4
7 805300010 垫圈 8 Washer 24
8 805000018 螺栓 M8×20) Elbow 16
9 229600615 调整垫 Pad 4
10 805300020 垫圈12 Washer 4 GB/T97.1-2002
11 805000373 螺栓M12X80 Bolt 4
12 805200053 螺母 M6 Nut M6 4
13 805300029 垫圈 6 Washer 6 4 GB/T97.1-2002
15 229602388 箱门 Tank porta 2
16 229600609 左扶手 Left rail 1
17 805300030 垫圈 6 Washer 6 16 GB/T93-1987
18 229600613 座椅安装架 Bracket 1
19 229600612 后封板 Rear cover 1 A
19 229600777 后封板 Rear cover 1 B
20 801902770 压路机座椅 Seat assembly 1
21 805200045 螺母 8 Nut 4 GB/T 6170-2000
22 805000017 螺栓 M8×25 bolt 8 GB/T5783-2000
23 805300017 垫圈10 Washer 4 GB/T97.1-2002
24 805300014 垫圈 10 Washer 4 GB/T93-1987
25 805000727 螺栓M10X25 Bolt 4 GB/T5783-2000
26 229602013 盖板 Cover 1
27 229600599 右扶手 Right rail 1
28 229600610 倒顺操纵 Speed control 1
29 227100146 螺母M5 Nut 1 GB/T6170-2000
30 227300207 叉接头 Forked Joint 1 YZ10.5-5
31 230100394 油泵摇臂 Control cable 1
32 805601630 销轴B6X22 Pin 1
33 805600301 销 2X16 Pin 1 GB/T 91-2000
35 229600611 油门软轴 Cable throttle 1
36 229600618 连接板 Plate 1
37 227300211 球铰链 Globe-gemel 1
38 805300109 垫圈 5 Washer 3 GB/T93-1987
39 805200046 螺母 M5 Nut 3 GB/T6170-2000
40 229600617 安装板 Mounting panel 1
41 230100387 卡板 Strap clamp 1
42 230100388 垫板 Underboarding 1
43 805100337 螺钉M5×16 Bolt 2 GB/T65-2000
44 805000043 螺栓 M10×30 Bolt 4 GB/T 5783-2000
45 ▲2296XD31XD41-050101 仪表箱总成 Cable instrument box 1
46 801538592 加长铰链 Gemel 2
47 229602393 柜门 Tank porat 1
48 801536015 401机罩锁 Lock 1
49 801538593 铰链 Gemel 1
