Description

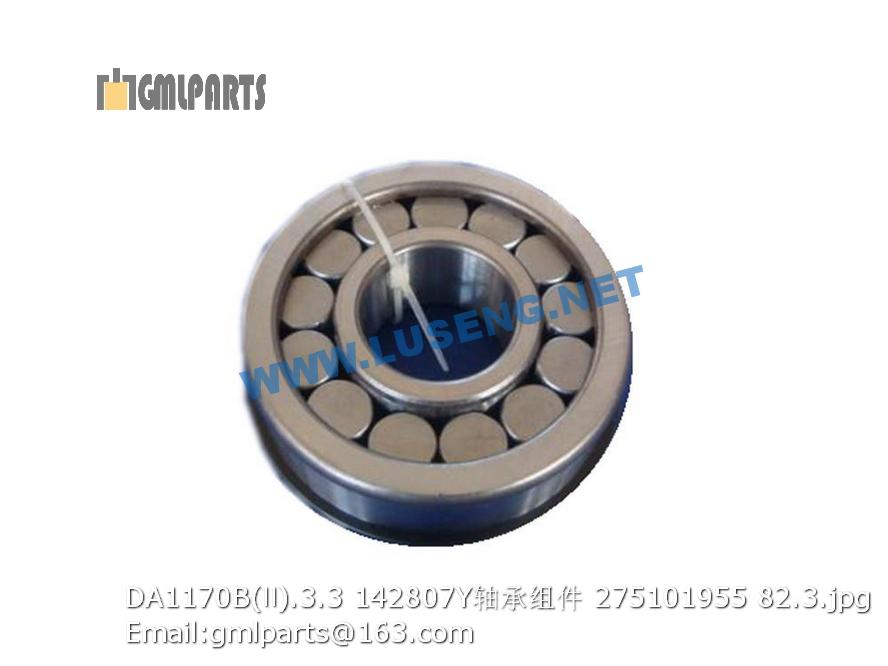

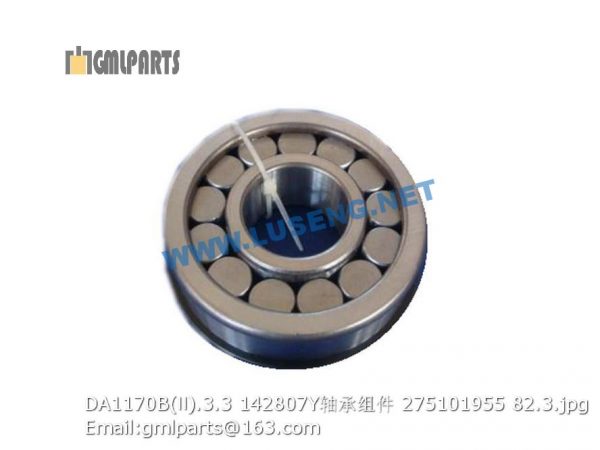

275101955 DA1170B(Ⅱ).3.3 142807Y BEARING

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 402100686 空心螺栓M22 X 1.5 Bolt 3 WZ30.9.3.2-4
2 803163944 组合垫圈22 Combination washer 12 JB/T982-1977
3 402200894 钢管 Steel tube 1
4 402100687 空心螺栓M22X1.5 Bolt 3 WZ30.09.03.02-06
5 402200893 钢管 Steel tube 1
7 803130771 胶管 Rubber hose 2
8 402200892 钢管 Steel tube 1
9 402202584 管夹 Pipe clip 3
10 402200890 钢管 Steel tube 1
12 803131113 胶管 Rubber hose 2
13 402600095 胶管 Rubber hose 1
14 803130807 胶管 Rubber hose 1
15 803176192 O型圈20 x 2.4 O-ring 1 GB/T1235-76
16 803043365 限速阀 Valve 1 XSF-F25L-70
17 803176899 组合垫圈27 Combination washer 1 JB/T982-1977
18 402200887 钢管 Steel tube 1
19 402200891 钢管 Steel tube 1
20 402200895 接头 Joint 6 XT870.3.1.2-2
21 803130017 O型圈OR23.47 x 2.95 O-ring 16 AS568
22 801903077 胶皮 Rubber 3 XG-YT-028
23 801535325 橡胶套 Rubber Sleeve 8 XG-YT-018
24 801937933 扎带 24 NZ-4 x 250-2
25 402600581-0201 护套 1 ZCSNAI-428
26 803198215 管夹 Pipe clip 2 ZCSNA1-428
1 402200895 接头 Joint 2 XT870.3.1.2-2
2 803198214 接头 4
3 803130784 胶管 Rubber hose 1 M381CACF181810-600
4 803130786 胶管 Rubber hose 1 M381CACF181810-920
6 803130743 弯头 Joint 4 LZ12L
7 402201309 左兰通接头 Tee joint (left) 1
8 402201310 右三通接头 Tee joint (right) 1
9 803130779 胶管 Rubber hose 4
10 402400089 回转油缸 Rotary cylinder 2
11 803130893 接头 Joint 4
12 402200904 接头 Joint 4 XT870.3.1.3一13
13 803130321 管夹 Pipe clip 4
14 803130775 胶管 Rubber hose 2 M381CACF121206-1350-PG
15 803130774 胶管 Rubber hose 2 M381CACF121206-1300-PG
16 401002032 接头 8 IE12LM18×1.5ED
17 803131115 胶管 Rubber hose 4 M381CACA121206-600-PG
18 803199941 接头 Joint 4 IE12LM16x1.5ED
19 803043473 液压锁 803043473 2 S0160-2
20 402400090 支腿油缸 fixed leg cylinder 2
21 805300069 垫圈 8 Washer 8 8
22 805300010 垫圈 8 Washer 8
23 805004692 螺栓 M8×60 Bolt 8
24 803130631 胶管 Rubber hose 2 M381CFCF121206-630-PG
25 803199940 接头 Joint 7 IE12LG1/4ED
26 402400091 夹紧油缸 Grip cylinder 4
27 803130720 堵头 1
28 803130750 接头 Joint 1
29 803131116 胶管 Rubber hose 1 M381CFCF121206-770-PG
30 803130778 胶管 Rubber hose 1
31 803130817 直通接头 Joint 1 IE12L9/16UNF
