Description

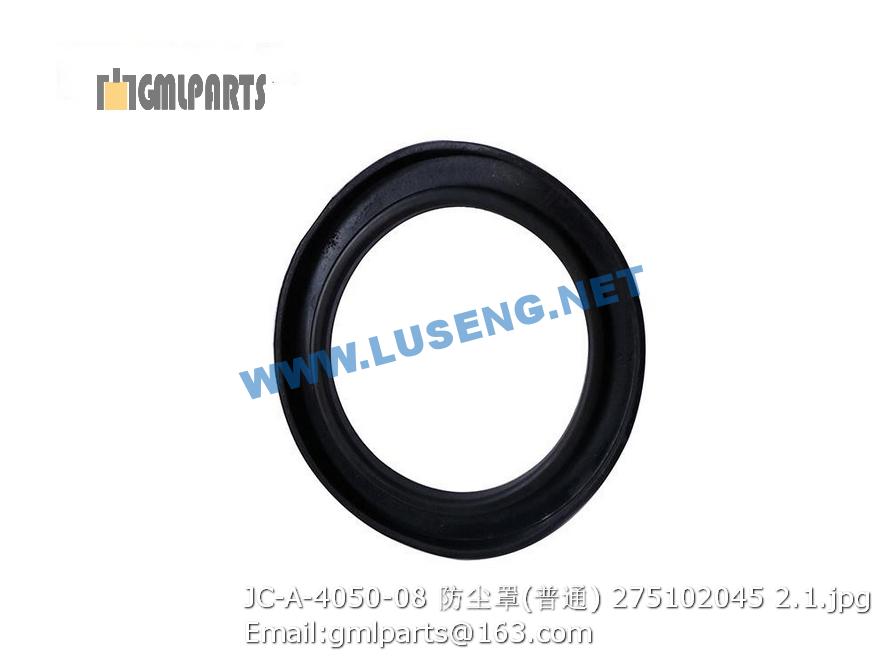

275102045 JC-A-4050-08 DUST RING
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲226500375-041101 轮边减速器总成 Planetary assembly 2
2 ▲226500375-041102 桥壳 Housing 1
3 ▲226500375-041103 通气塞Z1/8 PlugZ1/8 1
4 ▲226500375-041104 螺塞M24×1.5 Plug 1
5 ▲226500375-041105 组合密封垫24 Compound sesl washer 1
6 ▲226500375-041106 螺塞3/4″ Plug 1
7 ▲226500375-041107 标牌 Mark card 1
8 ▲226500375-041108 铆钉Φ3*6 Rivet 4
9 860118645 主减速器总成 Carrier Assembly 1 82459500
10 ▲226500375-041110 螺栓M14*1.5*40 Bolt 2
11 ▲226500375-041111 螺栓M14*1.5*35 Bolt 10
12 ▲226500375-041112 螺栓M14*1.5*60 Bolt 2
13 ▲226500375-041113 定位销 Pin 3
14 ▲226500375-041114 弹垫14 Washer 14
1 ▲226500375-04110101 盖板 Cover 1
2 ▲226500375-04110102 螺母体 Nut 1
3 ▲226500375-04110103 隔套 Sleeve 1
4 860131037 链轮 Chain wheel 1 桥附件
5 ▲226500375-04110105 油封座 Oil Seal Cage 1
6 ▲226500375-04110106 套 Sleeve 1
7 ▲226500375-04110107 油封 Oil Seal 2
8 ▲226500375-04110108 0型圈 Combine washer 1
9 ▲226500375-04110109 轴承 Bearing 1
10 ▲226500375-04110110 轴承座 Bearing Cage 1
11 ▲226500375-04110111 调整套 Adjust a set 1
12 ▲226500375-04110112 调整垫片 Washer 0
13 ▲226500375-04110113 轴承 Bearing 1
14 ▲226500375-04110114 支承轴 Spindle 1
15 ▲226500375-04110115 螺钉M14X32 Screw 2
16 ▲226500375-04110116 螺栓M10X45 Bolt 16
17 ▲226500375-04110117 垫圈10 Washer 16
18 ▲226500375-04110118 调整支柱 Adjusting Pin 1
19 ▲226500375-04110119 挡圈50 Circlip 1
20 ▲226500375-04110120 半轴 Axle shaft 1
