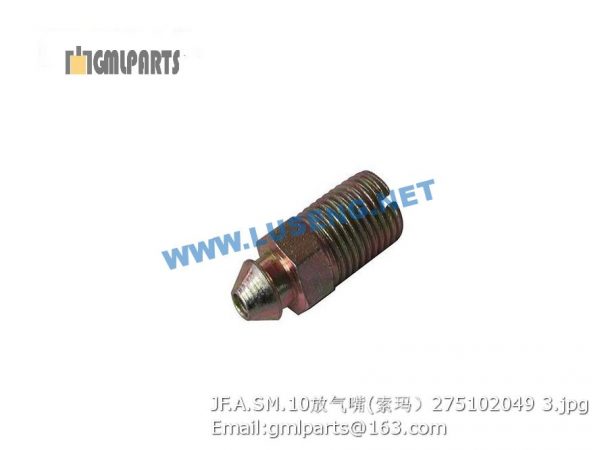

275102049 JF.A.SM.10 EXHAUST NIPPLE SOMA
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 803166376 旋装滤油器 Filter 1 0750 131 053H
2 ▲226500375-040202 箱体 Box 1
3 ▲226500375-040203 通气帽 Plug 1
4 ▲226500375-040204 紫铜垫圈 A30 Washer 3
5 ▲226500375-040205 螺塞 30×15 Plug 2
6 ▲226500375-040206 吊环 M20 DIN580 Flying rings 1
7 ▲226500375-040207 螺栓 M10×40 Bolt 1
8 ▲226500375-040208 弹簧垫圈 10 Washer 25
9 ▲226500375-040209 吊环 Flying rings 1
10 ▲226500375-040210 螺栓 M10×35 Bolt 22
11 ▲226500375-040211 空心螺栓 M10×1 Bolt 2
12 ▲226500375-040212 紫铜垫圈 A10 Washer 4
13 ▲226500375-040213 输出端盖 Cover 1
14 ▲226500375-040214 放油螺塞 22×1.5 Plug 1
15 ▲226500375-040215 紫铜垫圈 A22 Washer 1
16 ▲226500375-040216 螺栓 M6×15 Bolt 4
17 ▲226500375-040217 垫圈 6 Washer 4
18 ▲226500375-040218 螺栓 M10×45 Bolt 2
19 ▲226500375-040219 滤网组件 Netting 1
20 ▲226500375-040220 纸垫 Washer 1
21 ▲226500375-040221 油底壳 Cover 1
22 ▲226500375-040222 油标尺组件 Dipstick 1
23 ▲226500375-040223 加油管 Pipe 1
24 ▲226500375-040224 软管(长度690) Cannulation 1
1 ▲226500375-040301 涡轮轴 Shaft 1
2 ▲226500375-040302 弹性园柱销 2.5×5 DIN1481 Pin 1
3 ▲226500375-040303 弹性园柱销 1.5×5 DIN1481 Pin 1
4 ▲226500375-040304 球轴承 6308 C3 40×90×23 Bearing 1
5 ▲226500375-040305 调整垫片 Washer 1
6 ▲226500375-040306 弹性挡圈 40×1.75 Snap ring 1
7 ▲226500375-040307 输入齿轮 Gear 1
8 ▲226500375-040308 滚柱轴承 NJ209 E / C3 45×85×19 Bearing 1
9 ▲226500375-040309 搭扣密封环 Seal ring 1
10 ▲226500375-040310 配油法兰 Flange 1
11 ▲226500375-040311 纸垫 Washer 1
12 ▲226500375-040312 泵轮轴承座 Seat 1
13 ▲226500375-040313 纸垫 Washer 1
14 ▲226500375-040314 六角头螺栓 M8×28 DIN933 8.8 Bolt 8
15 ▲226500375-040315 搭扣密封环 Seal ring 1
16 ▲226500375-040316 滚针轴承 HK75×83×16 Bearing 1
17 ▲226500375-040317 轴用密封圈 Seal 1
18 ▲226500375-040318 辅助驱动轴 Shaft 1
19 ▲226500375-040319 搭扣密封环 Seal ring 1
20 ▲226500375-040320 纸垫 Washer 1
21 ▲226500375-040321 齿轮泵 Gear pump 1
22 ▲226500375-040322 球轴承 6206 RS / J 30×62×16 Bearing 1
23 ▲226500375-040323 键 A6×6×28 DIN6885 Key 1
24 ▲226500375-040324 球轴承 6206 RS / J 30×62×16 Bearing 1
25 ▲226500375-040325 六角头螺栓 M8×85 DIN931 8.8 Bolt 4
26 ▲226500375-040326 螺栓 M8×115 DIN931 8,8 Bolt 4
27 ▲226500375-040327 轴用挡圈 30×1.5 DIN471 Snap ring 2
