Description

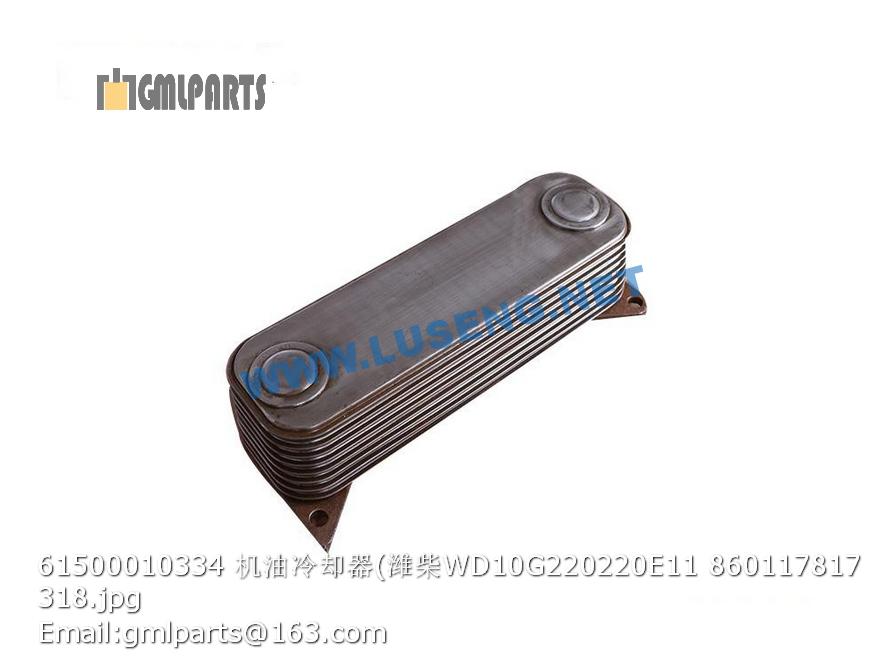

61500010334 OIL COOLER WD10G220220E11 860117817

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲800KV-030401 螺栓M12X1.25X60 Bolt 4 GB/T5785-2000
2 805300018 垫圈12 washer 12 4 GB/T93-1987
3 ▲800KV-030402 万向节总成 Gimbal 1 101269
4 ▲800KV-030403 联接叉 Fork 1 101269
5 ▲800KV-030404 轴管 Pipe 1 101269
6 ▲800KV-030405 花键轴 Shaft 1 101269
7 805200048 螺母 M10 Nut 4 GB/T6170-2000
8 805300014 垫圈 10 Washer 4 GB/T93-1987
9 805000036 螺栓 M10×90 805000036 4 GB/T5782-2000
10 ▲800KV-030406 前支撑端盖 Cover 1 101269
11 ▲800KV-030407 支撑座 Seat 1 101269
12 ▲800KV-030408 密封圈 Seal Ring 1 101269
13 800500302 轴承 Bearing 1 GB/T286-1964
14 ▲800KV-030409 后支撑端盖 Cover 1 101269
15 ▲800KV-030410 油封75X100X12 Seal Ring 2 101269
16 ▲800KV-030411 轴套 Sleeve 1 101269
17 ▲800KV-030412 花键叉 Fork 1 101269
18 ▲800KV-030413 垫板 Plate 1 101269
19 ▲800KV-030414 锁板 Plate 1 101269
20 805000062 螺栓 M10×35 Bolt 3 GB/T 5783-2000
21 801103169 油杯M10X1 Grease cup 1 JB/T7940.2-1995
22 ▲800KV-030415 定位销 Pin 1 101269
1 ▲800KV-030501 螺栓M12X1.25X60 Bolt 12 GB/T5785-2000
2 805300018 垫圈12 washer 12 12 GB/T93-1987
3 ▲800KV-030502 万向节总成 Gimbal 2 101269
4 ▲800KV-030503 联接叉 Fork 2 101269
5 ▲800KV-030504 轴管 Pipe 1 101269
6 ▲800KV-030505 花键套 Sleeve 1 101269
7 801101734 油杯M8X1 Grease Cup 1 JB/T7940.1-1995
8 ▲800KV-030506 密封圈80X92X14 Seal Ring 1 101269
9 ▲800KV-030507 防尘套 Sleeve 1 101269
10 ▲800KV-030508 花键轴 Shaft 1 101269
1 ▲800KV-030601 螺栓M12X1.25X60 Bolt 8 GB/T5785-2000
2 805300018 垫圈12 washer 12 8 GB/T93-1987
3 ▲800KV-030602 万向节总成 Gimbal 2 101269
4 ▲800KV-030603 联接叉 Fork 1 101269
5 801101734 油杯M8X1 Grease Cup 1 JB/T7940.1-1995
6 ▲800KV-030604 花键套 Sleeve 1 101269
7 ▲800KV-030605 密封圈80X92X14 Seal Ring 1 101269
8 ▲800KV-030606 防尘套 Sleeve 1 101269
9 ▲800KV-030607 花键轴 Shaft 1 101269
10 ▲800KV-030608 花键套叉 Fork 1 101269
