Description

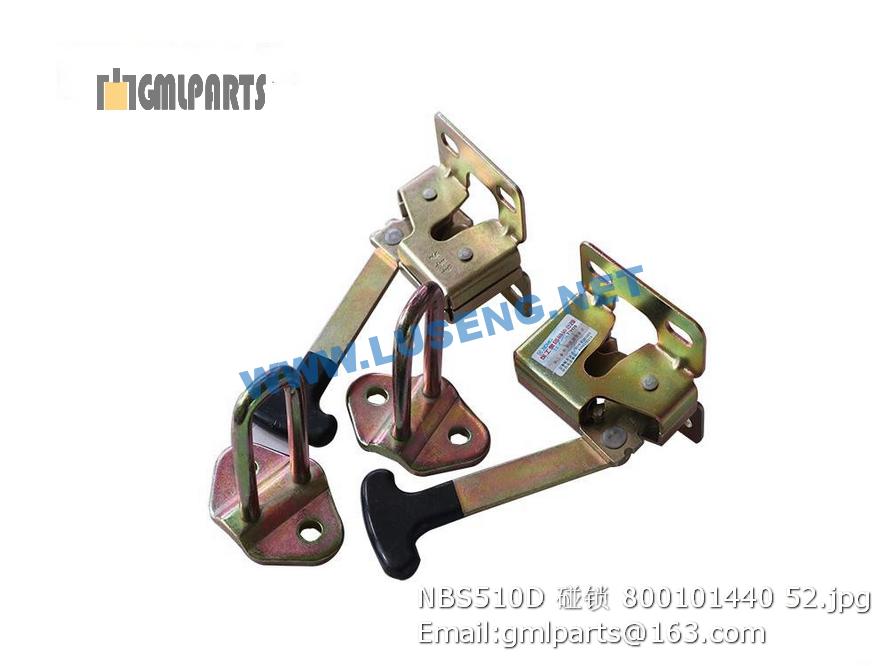

800101440 NBS510D LOCK XCMG

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 227001426 前梁 Front girder 1
1 227001563 前梁 Front girder 1 XS262JPD
2 228700366 调整垫 Shim 2
3 228700368 调整垫 Shim 2
4 805002127 螺栓M24×2×120 Bolt 8 GB/T5785-2000
5 805301380 垫圈 24 WASHER 8 DIN6796
6 227001565 压轮框架 Frame 1 XS262JPD
6 227001427 压轮框架 Frame 1
7 805000008 螺栓 M6×12 Bolt 8 GB/T5783-2000
8 805300030 垫圈 6 Washer 6 8 GB/T93-1987
9 228700369 板 Board 2
10 228700370 盖 Cover 2
11 228700371 垫 Washer 6
12 805000616 螺栓 M8×12 Bolt 1 GB/T5783-2000
13 800511347 轴承 GAC85S/K Bearing 4 GB/T304-2002
14 228700391 转向铰接 Steering hitch 1
15 801100336 黄油嘴M10X1 Grease Nipple 3 JB/T7940.1-1995
16 228700372 盖 Cover 1
17 805101805 螺钉M12×16 Bolt 3 GB/T77-2000
18 228700373 V型圈 V-ring 2
19 805000560 螺栓M24×70 Bolt 12 GB/T5782-2000
20 228700374 调整垫 Shim 2
21 228700375 V型圈 V-ring 1
22 805000048 螺栓M12X35 Bolt 12 GB/T5783-2000
23 805300018 垫圈12 washer 12 12 GB/T93-1987
24 228700367 防尘盖 Prevent dust cover 1
25 227001457 刮泥板 Scraper 2
26 227001458 刮泥板 Scraper 2
27 805301377 垫圈 16(达克罗) Wahser 16
28 805000051 螺栓 M16×40 Bolt 16 GB/T5783-2000
1 226802286 油位螺栓 Oil Lever Bolt 1
2 805300055 垫圈 30 WASHER 2 JB982-77
3 228700169 油塞 Oil Plug 2
4 803164073 油封B240X270X15D Oil Seal 1 GB9877.1-1988
5 805301374 垫圈 12(达克罗) Bolt 128
6 230500568 减振块 Shock absorber 16 YLJ-16C
7 227001383 压轮 Drum 1
8 227001384 轴承盖 Bearing Cover 1
9 805000040 螺栓M16×60 Bolt 32 GB/T5783-2000
10 805301377 垫圈 16(达克罗) Wahser 56
11 228900350 左偏心块总成 Eccentricity shaft 1
12 805000051 螺栓 M16×40 Bolt 16 GB/T5783-2000
13 228700160 轴承座 Bearing base 2
14 800511290 振动轴承 NJ324（NSK） Bearing 4
15 228900343 传动轴 Transmission shaft 1
16 228900353 右偏心块总成 Right eccentricity shaft 1
17 228702219 右轴承座 Bearing housing right 2
17 805200194 螺母 M24 Nut 24 GB/T 889.1-2000
18 228702220 框架轴承座 Frame bearing set 2
19 227001385 安装板 Mounting Plate 2
20 805000411 螺栓 M16×80 Bolt 16 GB/T5782-2000
21 805200210 螺母M16 Nut 16 GB/T6184-2000
22 228702222 马达连接盘 Motor bracket 1
23 805000032 螺栓M12X60 Bolt 144 GB/T5782-2000
24 805300018 垫圈12 washer 12 16 GB/T93-1987
25 805000404 螺栓M12X45 Bolt 1 GB/T5782-2000
26 228702218 锁片 Washer 8 GB/T93-1987
27 228702223 压板 Cover plate 1
29 803164135 O型圈300×5.3 O-ring 2
31 805200098 螺母 M12 Nut 128 GB/T889.1-2000
32 800306651 弹性联轴器 Stretch connect 1 ROTEX 48-521553-2
33 800511395 框架轴承 HS723 Frame bearing set 2
34 801101753 油封280×320×20 Seal 2 GB/T13871
35 803164136 O型圈412×7 O-ring 2 GB/T3452.1-2005
36 228700157 橡胶套 Rubber sleeve 2
37 803201494 透气塞 breath cap 1 C-M12
38 801100339 油杯 M10×1 801100339 2 JB/T7940.2-1995
39 227001879 压板 1
41 805000716 螺栓M12X30 Bolt 8 GB/T5783-2000
42 228702284 3/4″堵头 plug 1
43 805701064 键14×9×63 Ring 1 GB1096-79
45 227001378 减振器支座 Torque reducer support 4
46 228700155 调整垫 Shim 4
47 805001910 螺栓M24×160 Bolt 24 GB/T5782-2000
48 805300148 垫圈24 Washer 32 GB/T93-1987
49 805201509 螺母M24 Nut 24 GB/T6170-1987
