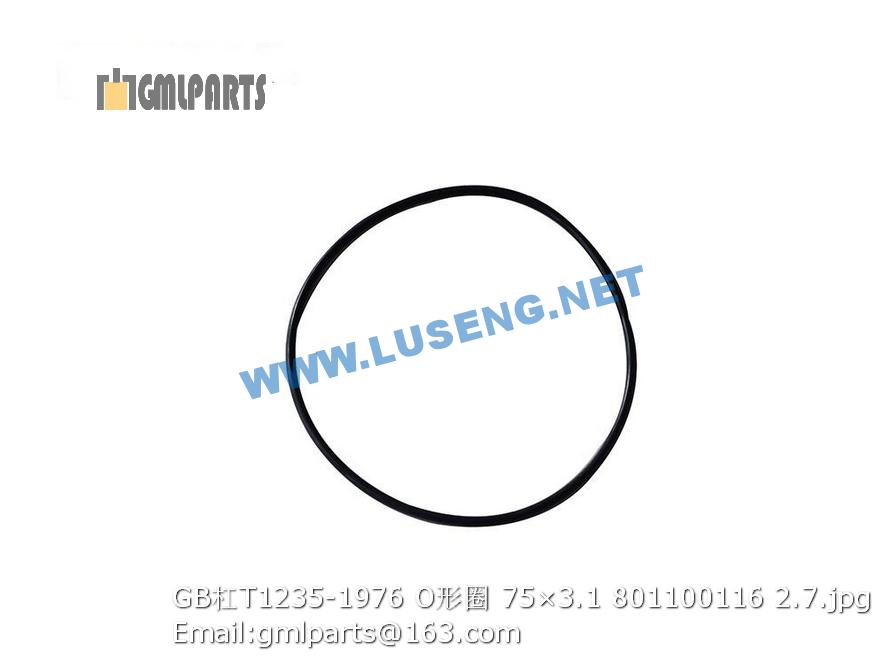

801100116 GB/T1235-1976 O-RING 75×3.1

Description

序号零件号版本中文名称英文名称数量备注装配备注
1 805600219 开口销3.2×40 Pin 1 GB/T91-1986
2 805201472 螺母M16 Num 1 GB/T6181-1986
3 800305102 离合器总成 Clutch 1
4 800305170 分离轴承 Bearing 1
5 805000525 螺栓M6×20 Bolt 3 GB/T5783-2000
6 805300030 垫圈 6 Washer 6 3 GB/T93-1987
7 231401658 垫 Paper cushion 1
8 800500194 轴承6207 Bearing 1 GB/T276-1994
9 231401657 I齿轮轴 I gear shaft 1
10 800511320 轴承6307 Bearing 1 GB/T276-1994
1 ▲231400523-0201 螺拴M6X12 Bolt 3 GB/T5781
2 ▲231400523-0202 垫圈6 Washer 3 GB/T93
3 ▲231400523-0203 防尘罩 Cap 1 SF101-21104
4 ▲231400523-0204 螺栓M8X15 Bolt 6 GB/T5781
5 ▲231400523-0205 垫圈8 Washer 6 GB/T93
6 ▲231400523-0206 轴承204 Bearing 1 GB276
7 ▲231400523-0207 离合器端盖 Cover 1 SF101-21102
8 ▲231400523-0208 从动盘部件 Driven disc assembly 2 SF180-21011
9 ▲231400523-0209 主动盘 Driven disc 1 SF101-21109
10 ▲231400523-0210 分离盘 Clutch disc 1 SF101-21110
11 ▲231400523-0211 离合器弹簧 Spring 6 SF101-21111
12 ▲231400523-0212 离合器皮带轮 V-belt whell 1 SF101-21108
13 ▲231400523-0213 销2X15 Pin 3 GB91
14 ▲231400523-0214 垫圈8 Washer 6 GB/T97.1
15 ▲231400523-0215 分离杠杆 Leave 3 SF101-21118
16 ▲231400523-0216 销B8X30 Pin 3 GB882
17 800305170 分离轴承 Bearing 1
18 ▲231400523-0217 油封 Seal 1
19 ▲231400523-0218 分离套筒 Cover 1 SF101-21114
20 ▲231400523-0219 分离爪座 Seat 1 SF101-21115
21 ▲231400523-0220 分离爪 Claw 1 SF101-21113
22 ▲231400523-0221 螺母M8 Nut 6 GB/T6170
23 ▲231400523-0222 轴承60206 Bearing 1 GB278
