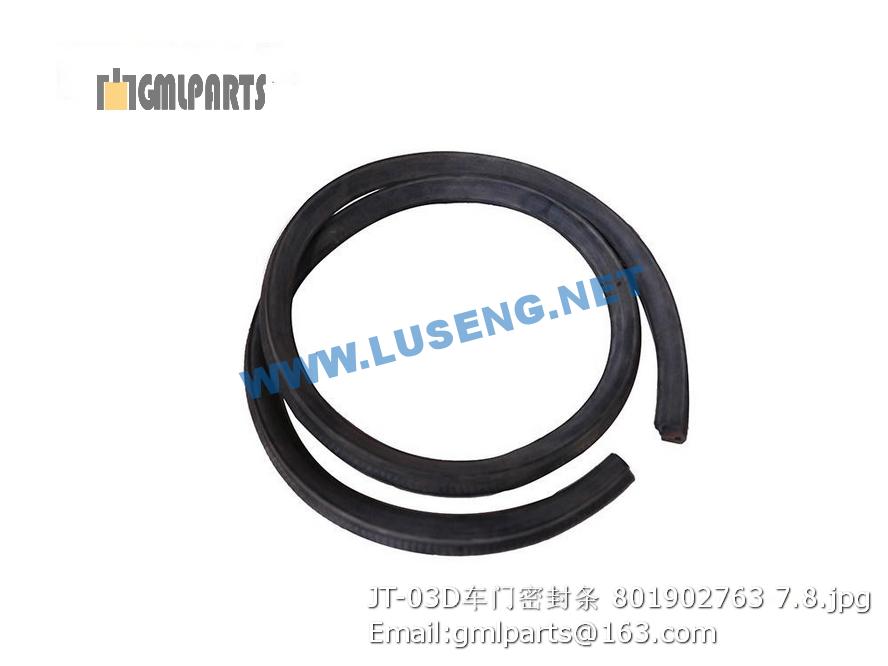

801902763 JT-03D weather strip

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 860119036 底座总成 Pedestal assembly 1
2 860119037 制动蹄总成 Braking hoof assembly 2
3 860104974 制动轮缸 Braking pump 1
4 860119038 凸轮固定螺栓 Cam bolt 2
5 ▲226500375-010105 垫圈 Washer 2
6 860119039 弹簧 Spring 2
7 860119040 凸轮 Cam 2
8 860119041 制动蹄回位弹簧 Braking hoof spring 2
9 ▲226500375-010109 六角螺栓M12X30 Bolt 2 GB/T5783-2000
10 ▲226500375-010110 弹簧垫圈8 Washer 2 GB/T93-87
11 ▲226500375-010111 垫圈12 Washer 2 GB848-85
12 860119042 限位板 Limit plank 1
13 ▲226500375-010113 开口销5X40 Pin 2 GB/T91-2000
1 ▲226500375-010201 制动蹄筋板 Braking hoof plank 2
2 ▲226500375-010202 摩擦片 Grating piece 2
3 ▲226500375-010203 焊块 Weld piece 1
4 ▲226500375-010204 铆钉 Rivet 16
5 ▲226500375-010205 制动蹄幅板 Braking hoof breadth 1
6 ▲226500375-010206 衬套 Bush 1
1 ▲226500375-010301 泵体 Pump body 1
2 ▲226500375-010302 液压活塞 Hydraulic piston 2
3 ▲226500375-010303 液压皮圈 Hydraulic ring 2
4 ▲226500375-010304 弹簧 Spring 1
5 ▲226500375-010305 O型圈 O ring 2
6 ▲226500375-010306 防尘罩 Dustproof cover 2
7 ▲226500375-010307 推杆 Handspike 2
8 ▲226500375-010308 钢球Φ8 Iron ball 1 GB308-77
9 ▲226500375-010309 放气螺钉 Deflation bolt 1
10 ▲226500375-010310 垫片 Washer 1
11 ▲226500375-010311 进油接头 Tie-in 1
12 ▲226500375-010312 垫片 Washer 1
13 ▲226500375-010313 进油螺栓 Bolt 1
1 800302309 轮胎 Tyre 3
2 225702328 轴承盖 2
3 800302754 螺母 M20 Nut 20
4 225702321 XP263.2A-1 轮辋螺栓 20
5 805000068 螺栓 M10×16 Bolt 12 GB/T5783-2000
6 805300014 垫圈 10 Washer 12 GB/T93-1987
7 800302423 轮辋 Rim 3
8 225702772 压板 2
9 805000051 螺栓 M16×40 Bolt 24 GB/T5783-2000
10 805300011 垫圈 16 Washer 24 GB/T 93-1987
11 225702771 后轮轮胎座 2
12 225701934 制动鼓 Braking drum 2
13 805600248 销 Pin 4
14 225702775 垫片 12
15 805002152 螺栓 M12×1.25×35 Bolt 20 GB/T5786-2000
16 800302448 制动器总成 Braking system assembly 2
17 805701094 键 28X165 key 2 GB/T 1096-1979
18 225702867 后轮轴（甲） 1
19 805701093 键 28X140 Key 1 GB/T1096-2003
20 805701097 键 32X130 Key 1 GB/T1096-2003
21 225702871 轴承座 2
22 801100336 黄油嘴M10X1 Grease Nipple 3 JB/T7940.1-1995
23 225702010 接头 Tie-in 3
24 805300037 垫圈10 Washer 3 JB/T982-1977
25 225702862 轴套 2
26 225702863 后轴轴套Ⅰ 2
27 803164092 油封B130X160X12 Oil Seal 4 GB/T9877.1-1988
28 800500150 轴承 Bearing 2
29 225702533 后轴轴套 Ⅱ 2
30 800511244 轴承 Bearing 2
31 225702542 纸垫 2
32 225702541 轴承盖 2
33 805002140 螺栓12×1.25×30 Bolt 16 GB/T5786-2000
34 805300018 垫圈12 washer 12 16 GB/T93-1987
35 805300034 垫圈24 Washer 4 GB/T93-1987
36 805000384 螺栓M24×60 Bolt 2 GB/T5783-2000
37 225701942 压板 Press plate 2
38 225701951 后轮联轴器 Rear wheel axle joint 1
39 805002160 螺栓M20X1.5X70 Bolt 10 GB/T 5786-2000
40 805300023 垫圈 20 Washer 20 10 GB/T93-1987
41 225702556 垫圈 10
42 225702868 后轮联轴器 10
43 805601586 销 A20×30 Pin 4 GB/T119.1-2000
44 225702912 大链轮 Large Chain Wheel 1
45 805000716 螺栓M12X30 Bolt 2 GB/T5783-2000
46 805300020 垫圈12 Washer 2 GB/T97.1-2002
47 225702543 链轮罩 1
48 805601587 销 A20×40 Pin 2 GB/T119.1-2000
49 805002144 螺栓 M20×1.5×55 Bolt 10 GB/T 5786-2000
50 225702545 垫片 5
