Description

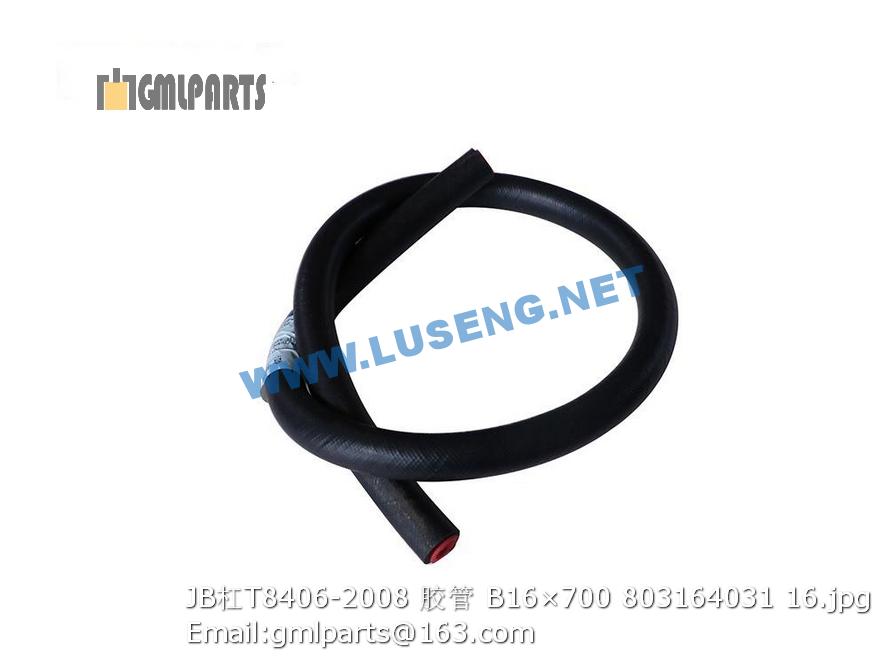

803164031 JB/T8406-2008 HOSE B16×700

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲226800286-060501 O形密封圈 o-ring 1
2 ▲226800286-060502 弹簧 Spring 1
3 ▲226800286-060503 下阀门总成 Valve assembly 1
4 ▲226800286-060504 回位弹簧 Spring 1
5 ▲226800286-060505 下阀门杆密封圈 O-ring 1
6 ▲226800286-060506 O形密封圈 O-ring 1
1 ▲226500375-030101 呼吸器总成 Haustellum 1
2 ▲226500375-030102 气缸总成 Bicycle pump 1
3 ▲226500375-030103 气活塞 Piston 1
4 ▲226500375-030104 回位弹簧 Spring 1
5 ▲226500375-030105 O形密封圈 O-Ring 1
6 ▲226500375-030106 中心密封圈 Seal ring 1
7 ▲226500375-030107 垫圈 Washer 1
8 ▲226500375-030108 挡圈32 Washer 1
9 ▲226500375-030109 O形密封圈 O-Ring 1
10 ▲226500375-030110 储油杯总成 Oil cup 1
11 ▲226500375-030111 骨架矩形圈 1
12 ▲226500375-030112 液压缸体 Hydraulic pressure 1
13 ▲226500375-030113 液压皮圈 Peel ring 1
14 ▲226500375-030114 放气螺钉 Bolt 1
15 ▲226500375-030115 螺塞总成 1
16 ▲226500375-030116 液压活塞 Piston 1
17 ▲226500375-030117 推杆座总成 Handspike 1
18 ▲226500375-030118 挡圈25 Washer 1
19 ▲226500375-030119 螺栓M10*35 Bolt 3
20 ▲226500375-030120 垫圈10 Washer 5
21 ▲226500375-030121 螺栓M10*20 Bolt 2
22 ▲226500375-030122 垫圈8 Washer 6
23 ▲226500375-030123 螺栓 M8*16 Bolt 6
24 ▲226500375-030124 连接盖总成 Connect lid 1
25 ▲226500375-030125 活塞皮圈 Piston”s ring 1
26 ▲226500375-030126 安装支架 Bracket 1
1 ▲226800286-060301 阀座 Valve seat 1
2 ▲226800286-060302 铜铆钉 Cuprum rivet 6
3 ▲226800286-060303 防尘帽 Dustproof cap 6
4 ▲226800286-060304 防尘片 Dustproof patch 1
5 ▲226800286-060305 O型密封圈 O-ring 1
6 ▲226800286-060306 孔用弹性挡圈 Hole using sping ring 1
7 ▲226800286-060307 密封闷头 Seal 1
8 ▲226800286-060308 O型密封圈 O-ring 1
9 ▲226800286-060309 Y形密封圈 Y-ring 1
10 ▲226800286-060310 Y形密封圈 Y-ring 1
11 ▲226800286-060311 控制阀杆 Control valve lever 1
12 ▲226800286-060312 O形密封圈 O-ring 1
13 ▲226800286-060313 回位弹簧 Spring 1
14 ▲226800286-060314 进气阀座 Valve seat 1
15 ▲226800286-060315 O形密封圈 O-ring 1
16 ▲226800286-060316 阀门 Valve 1
17 ▲226800286-060317 进气阀弹簧 Spring 1
18 ▲226800286-060318 导流环 Ring 1
19 ▲226800286-060319 O形密封圈 O-ring 1
20 ▲226800286-060320 油杯帽 Cap 1
21 ▲226800286-060321 气缸体 Cylinder 1
22 ▲226800286-060322 垫片 Washer 1
23 ▲226800286-060323 螺栓 bolt 1
24 ▲226800286-060324 防尘套座 Dustproof 1
25 ▲226800286-060325 盖板 Cover boart 1
26 ▲226800286-060326 滑环 ring 1
27 ▲226800286-060327 Y形密封圈 Y-Ring 1
28 ▲226800286-060328 推杆叉 Handspike fork 1
29 ▲226800286-060329 O形密封圈 O-ring 1
30 ▲226800286-060330 O形密封圈 O-ring 1
31 ▲226800286-060331 螺母 Nut 1
32 ▲226800286-060332 定位套 Orinating sleeve 1
33 ▲226800286-060333 活塞 Piston 1
34 ▲226800286-060334 O形密封圈 O-ring 1
35 ▲226800286-060335 活塞杆 Piston pole 1
36 ▲226800286-060336 O形密封圈 O-ring 1
37 ▲226800286-060337 滑环 Ring 1
38 ▲226800286-060338 推杆 Handspike 1
39 ▲226800286-060339 回位弹簧 spring 1
40 ▲226800286-060340 Y形轴用密封圈 Y-ring 1
41 ▲226800286-060341 防尘套 Dustproof 1
42 ▲226800286-060342 放气螺钉 Exhausting screw 1
43 860104970 离合器助缸修理包 Tools kit 1
