Description

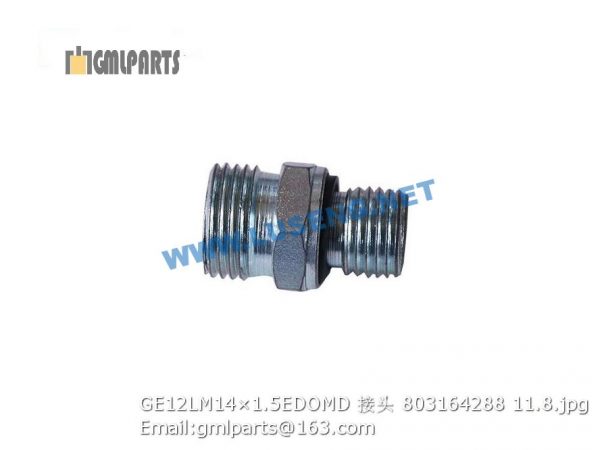

803164288 GE12LM14×1.5EDOMD JOINT
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲226800286-060301 阀座 Valve seat 1
2 ▲226800286-060302 铜铆钉 Cuprum rivet 6
3 ▲226800286-060303 防尘帽 Dustproof cap 6
4 ▲226800286-060304 防尘片 Dustproof patch 1
5 ▲226800286-060305 O型密封圈 O-ring 1
6 ▲226800286-060306 孔用弹性挡圈 Hole using sping ring 1
7 ▲226800286-060307 密封闷头 Seal 1
8 ▲226800286-060308 O型密封圈 O-ring 1
9 ▲226800286-060309 Y形密封圈 Y-ring 1
10 ▲226800286-060310 Y形密封圈 Y-ring 1
11 ▲226800286-060311 控制阀杆 Control valve lever 1
12 ▲226800286-060312 O形密封圈 O-ring 1
13 ▲226800286-060313 回位弹簧 Spring 1
14 ▲226800286-060314 进气阀座 Valve seat 1
15 ▲226800286-060315 O形密封圈 O-ring 1
16 ▲226800286-060316 阀门 Valve 1
17 ▲226800286-060317 进气阀弹簧 Spring 1
18 ▲226800286-060318 导流环 Ring 1
19 ▲226800286-060319 O形密封圈 O-ring 1
20 ▲226800286-060320 油杯帽 Cap 1
21 ▲226800286-060321 气缸体 Cylinder 1
22 ▲226800286-060322 垫片 Washer 1
23 ▲226800286-060323 螺栓 bolt 1
24 ▲226800286-060324 防尘套座 Dustproof 1
25 ▲226800286-060325 盖板 Cover boart 1
26 ▲226800286-060326 滑环 ring 1
27 ▲226800286-060327 Y形密封圈 Y-Ring 1
28 ▲226800286-060328 推杆叉 Handspike fork 1
29 ▲226800286-060329 O形密封圈 O-ring 1
30 ▲226800286-060330 O形密封圈 O-ring 1
31 ▲226800286-060331 螺母 Nut 1
32 ▲226800286-060332 定位套 Orinating sleeve 1
33 ▲226800286-060333 活塞 Piston 1
34 ▲226800286-060334 O形密封圈 O-ring 1
35 ▲226800286-060335 活塞杆 Piston pole 1
36 ▲226800286-060336 O形密封圈 O-ring 1
37 ▲226800286-060337 滑环 Ring 1
38 ▲226800286-060338 推杆 Handspike 1
39 ▲226800286-060339 回位弹簧 spring 1
40 ▲226800286-060340 Y形轴用密封圈 Y-ring 1
41 ▲226800286-060341 防尘套 Dustproof 1
42 ▲226800286-060342 放气螺钉 Exhausting screw 1
43 860104970 离合器助缸修理包 Tools kit 1
1 225600448 熄火支架 Braket 1
2 225600447 油门支架 Braket 1
3 805100064 螺钉 M8×20 Bolt 4 GB/T70.1-2008
4 805300010 垫圈 8 Washer 20
5 805200048 螺母 M10 Nut 4 GB/T6170-2000
6 805300017 垫圈10 Washer 13 GB/T97.1-2002
7 805000043 螺栓 M10×30 Bolt 9 GB/T 5783-2000
8 225600446 仪表箱总成 Instrument panel 1
9 805000714 螺栓 M10×20 Blot 4 GB/T5783-2000
10 800302351 操纵软轴 Soft shaft 1
11 805000018 螺栓 M8×20) Elbow 16
12 225600453 操纵箱体 Control box 1
13 800302337 手刹车软轴 Soft shaft 1
14 227000246 工具箱 Toolbox 1
15 801902823 座椅 Seat 1
16 805200045 螺母 8 Nut 4 GB/T 6170-2000
17 225600449 软轴支座 Braket 1
18 227000103 叉接头 Fork 1
19 805601659 销轴 10X25 Pin 1 GB/T882-1986
20 805600344 销 3X20 Pin 1 GB/T91-2000
21 805300102 垫圈 10 Washer 1 GB/T96.1-2002
