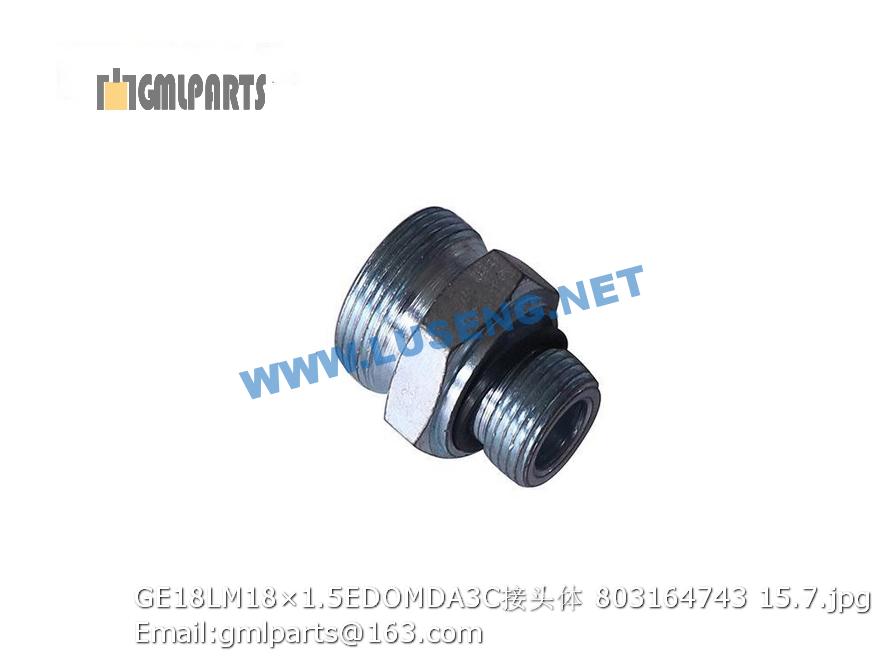

803164743 GE18LM18×1.5EDOMDA3C JOINT
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲226800286-130306 圆型组合风口 Place with a draught 6
2 ▲226800286-130307 控制面板 Control panel 1
3 ▲226800286-130308 盖板组件 Cover board 1
4 ▲226800286-130309 标牌 Scutcheon 1
5 ▲226800286-130310 箱体组件 Box 1
6 ▲226800286-130311 风机底板 Bottom board 1
7 ▲226800286-130312 蒸发风机 Vaporating wind machine 1
8 ▲226800286-130313 螺拴 Bolt 30
9 ▲226800286-130314 压板 Press board 1
10 ▲226800286-130315 垫板 Mat board 2
11 ▲226800286-130316 蒸发器芯体 Evaporator core 1
12 ▲226800286-130317 螺栓 Bolt 4
13 ▲226800286-130318 蒸发器芯体左安装板 Left fix board 1
14 ▲226800286-130319 暖风芯体 Core body 1
15 ▲226800286-130320 暖风芯体左安装板 Fix board 1
16 ▲226800286-130321 后板组件 Backboard 1
17 ▲226800286-130322 暖风芯体右安装板 Right mounting board 1
18 ▲226800286-130323 蒸发器芯体右安装板 Right mounting board 1
19 ▲226800286-130324 自攻螺钉 Screw 13
20 ▲226800286-130325 固定环1 Fixing ring 1
21 ▲226800286-130326 固定环2 Fixing ring 1
22 ▲226800286-130327 温度传感器 Temperature sensor 1
1 ▲226800286-130328 压缩机皮带 V-belt 1
2 ▲226800286-130329 压缩机 Compressor 1
3 ▲226800286-130330 压-冷胶管组件 Hose 1
4 ▲226800286-130331 冷凝器总成 Condensor 1
5 ▲226800286-130332 冷-贮胶管组件 Hose 1
6 ▲226800286-130333 贮液器支架 Bracket 1
7 ▲226800286-130334 贮液器总成 Liquid container 1
8 ▲226800286-130335 贮-蒸胶管组件 Hose 1
9 ▲226800286-130336 蒸发器总成(101465) Evaporator module 1
10 ▲226800286-130337 排水软管 Draining hose 2
11 ▲226800286-130338 蒸-压胶管组件 Hose 1
12 ▲226800286-130339 左安装支架 Left bracket 1
13 ▲226800286-130340 右安装支架 Right bracket 1
14 ▲226800286-130341 螺栓M6×16 Bolt 4
15 ▲226800286-130342 冷凝器芯体 Core body 1
1 ▲226800286-130343 底壳 Bottom shell 1
2 ▲226800286-130344 温控器 Temperature controller 1
3 ▲226800286-130345 圆风口 Wind hole 2
4 ▲226800286-130346 蒸发风机 Vaporating wind machine 1
5 ▲226800286-130347 蒸发风机安装板 Mounting board 1
6 ▲226800286-130348 方风口 Place with a draught 4
7 ▲226800286-130349 上盖 Cover 1
8 ▲226800286-130350 蒸发芯体 Vaporation core 1
9 ▲226800286-130351 膨胀阀 Expanding valve 1
10 ▲226800286-130352 暖风芯体 Core 1
11 ▲226800286-130353 暖风芯体安装板 Setting board 1
12 ▲226800286-130354 过渡管 Transition pipe 1
