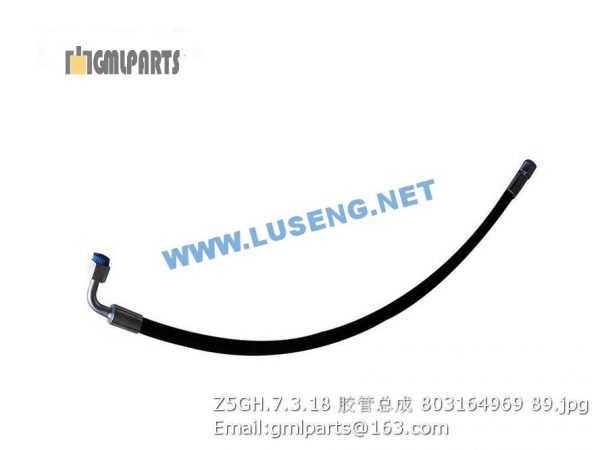

803164969 Z5GH.7.3.18 HOSE XCMG

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲230101290-0001001 机油滤清器滤芯 Engine oil filter element 1
2 ▲230101290-0001002 燃油滤清器滤芯 Fuel filter element 1
3 800104227 油水分离器A030N624 Oil-water Filter 1
4 803164538 滤芯 Filter 2 SF6720,滤芯每1000小时或半年更换，以先到为准 SF6720, filter every 1000 hours or half year replacement, whichever occurs first
5 803165591 通气过滤器 Ventilating filter 1 QUQ2-10×0.63（液压油箱盖通气）
6 ▲230101290-0003001 主滤清器滤芯 Main filter element 1
7 ▲230101290-0003002 安全滤清器滤芯 Safety filter element 1
8 ▲230101290-0003003 缸盖垫片 Gasket,valve cover 1
1 230101267- 车架装配 Frame mounting 1
2 230100975- 振动轮装配 DRUM ASSEMBLY 2
3 230101045- 发动机系统 ENGINE SYSTEM 1
4 230101266- 操纵系统 CONTROL SYSTEM 1
5 230101036- 驾驶室装配 Cab assembling 1 选配
6 230101108- 电气系统 ELECTRICAL SYSTEM 1
7 230100997- 液压系统 HYDRAULIC SYSTEM 1
8 230101066- 机罩装配 ENGINE HOOD ASSEMBLY 1
9 230101059- 洒水系统 Water sprinkler system 1
10 230101017- 刮泥板 SCRAPER ASSEMBLY 1
11 230101408- 油漆标记 Paints and decals 1
12 230101287- 空调系统 AIR-CONDITIONER SYSTEM 1 选配
13 230101331- 驾驶篷总成 CAB ASSEMBLY 1
1 230100976 轮子焊接 Drum 1
2 805000014 螺栓 Bolt 80
3 805301374 垫圈 12(达克罗) Bolt 80
4 805200098 螺母 M12 Nut 80 GB/T889.1-2000
5 230100977 左驱动板 Left drive plate 1
6 805000660 螺栓 M16×40 10.9 805000660 24 GB/T5783-2000
7 805300011 垫圈 16 Washer 17 GB/T 93-1987
8 805000281 螺栓M20×40 Bolt 34 GB/T5783-2000
9 805300023 垫圈 20 Washer 20 34 GB/T93-1987
10 230100987 连接圈 Connect circle 1
11 805000013 螺栓 M16×35 Bolt 17 GB/T5783-2000
12 805300014 垫圈 10 Washer 22 GB/T93-1987
13 805000727 螺栓M10X25 Bolt 6 GB/T5783-2000
14 800302368 减速机 Reducer 1 CW12A11HB4027
15 230100207 轴承盖 Bearing cover 1
16 801100036 O型圈128×5.3 O-Sealing 1
17 230503936 轴承座 Bearing bracket 1
18 800302482 球面螺母M22×1.5 Spherical Nut 10
19 230100979 左支撑板焊接 left supporting board 1
20 230501040 护罩 Right cover 2
21 803164135 O型圈300×5.3 O-ring 2
22 800514822 调心滚子轴承 Double-row bearing 2 22312-E1-T41A
23 230100980 偏心轴焊接 eccentric shaft welding 1
24 230503934 轴承座 Bearing bracket 1
25 228700169 油塞 Oil Plug 2
26 805300055 垫圈 30 WASHER 2 JB982-77
27 805200200 螺母 M16 Nut 8 GB/T889.1-2000
28 805301377 垫圈 16(达克罗) Wahser 8
29 805000054 螺栓M16X60 Bolt 8 GB/T5782-2000
30 230100981 右支撑板焊接 Right supporting board 1
31 230100982 调整垫 Shim 8
32 230100983 调整垫 Shim 8
33 230500847 框架轴承座 frame bearing-housing 1
34 228302283 马达连接圈 motor bracket 1
35 230502495 轴承压板 Bearing cover 1
36 805000029 螺栓 M10×40 Bolt M10×40 8 GB/T5783-2000
37 230100213 锁片 locked spacer 4
38 230501041 花键套 Splinted sleeve 1
39 800511397 框架轴承 bearing 1 JM822049-90N01
40 801100314 O形密封圈Φ165×3.55 O-ring 1
41 230100984 振动侧连接板 Connecting plate 1
42 801902797 减振块 shock absorber 5
43 230100985 减震器安装板 Shock connect plate 1
44 801101754 油封 1
45 803166351 油封 1
46 230100206 油位螺栓 Oil lever glass 1
47 805300025 垫圈 12 Washer 1
48 805300018 垫圈12 washer 12 5 GB/T93-1987
49 805000169 螺栓M12X70 Bolt 4 GB/T5783-2000
50 803201494 透气塞 breath cap 1 C-M12
51 228702444 加油管 1
52 805000017 螺栓 M8×25 bolt 1 GB/T5783-2000
53 805000068 螺栓 M10×16 Bolt 16 GB/T5783-2000
54 805000145 螺栓 M20×60 Bolt 20 GB/T5783-2000
55 805301379 垫圈 20(达克罗) WASHER 22 DIN6796
56 805002082 螺栓M20×20 Bolt 2
57 801902779 减振块 Shock absorber 5
58 805338246 垫圈16 washer 24 Nord-Lock
59 805200105 螺母M22 Nut 10 GB/T6173-2000
60 230504315 弹簧 spring 1
