Description

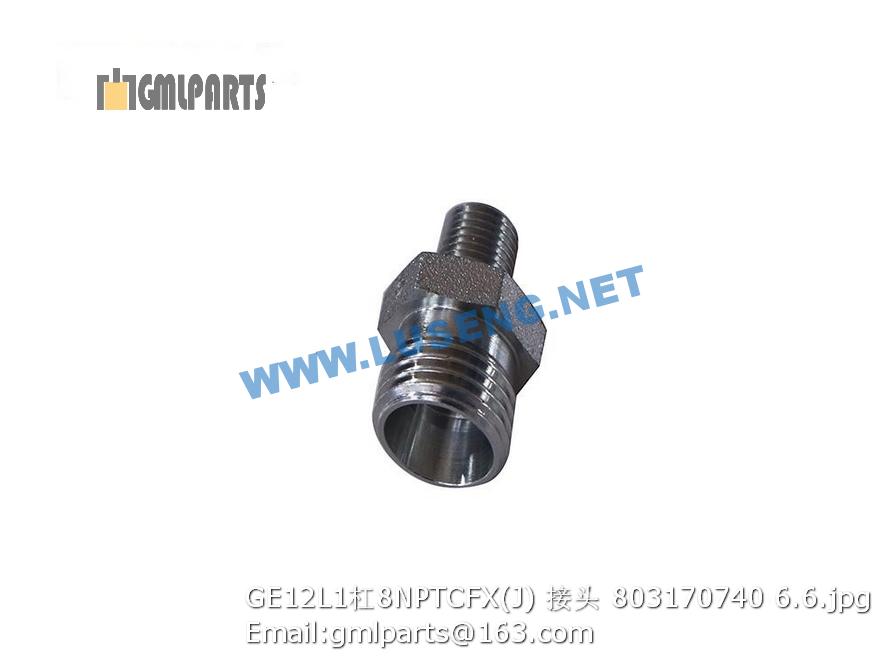

803170740 GE12L1/8NPTCFX(J) JOINT

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲225600256-0151 差速器壳 Differential Case 1 82030506A
2 ▲225600256-0152 半轴齿轮垫 Thrust Washer 2 82030504
3 ▲225600256-0153 半轴齿轮 Side Gear 2 75201275
4 ▲225600256-0154 十字轴 Joint spider 1 82030505
5 ▲225600256-0155 差速器壳 Differential Case 1 82030503A
6 ▲225600256-0156 螺母M16X1.5 Nut 8 75501993
7 ▲225600256-0157 行星轮垫 Thrust Washer 4 82030507
8 ▲225600256-0158 行星齿轮 Side pinion 4 75201274
9 ▲225600256-0159 凸缘螺栓 Bolt 8 75501981
1 ▲225600256-0301 制动盘 Brake Disc 1 72006561
2 ▲225600256-0302 放气嘴保护罩 Hood 4 55400001
3 ▲225600256-0303 销轴 Pin 8 75700437
4 ▲225600256-0304 放气嘴 Bleed nipple 4 75700442
5 ▲225600256-0305 O型圈75×3.1 O-Ring 4 53000010
6 ▲225600256-0306 夹钳体 Caliper 2 75700436
7 ▲225600256-0307 螺栓M20X60 Bolt 12 75502139
8 ▲225600256-0308 垫圈 Washer 12 52020008
9 ▲225600256-0309 螺母M10 Nut 8 51014003
10 ▲225600256-0310 螺栓M10X35 Bolt 8 75700462
11 ▲225600256-0311 螺栓M20X55 Bolt 6 50009039
12 ▲225600256-0312 垫圈18 Washer 16 52020007
13 ▲225600256-0313 钢球 Steel ball 4 54800005
14 ▲225600256-0314 垫圈10 Washer 16 52020003
15 ▲225600256-0315 螺栓M18X40 Bolt 16 75502009A
16 ▲225600256-0316 圆柱销 Column pin 8 79900278
17 ▲225600256-0317 螺栓M10X35 Bolt 16 50009015
18 ▲225600256-0318 孔塞 Plug 2 75700459
19 ▲225600256-0319 摩擦片 Friction pad 4 75700463
20 ▲225600256-0320 摩擦垫块底板 Backing plate 4 75700435
21 ▲225600256-0321 矩形密封圈 Seal 8 75700439
22 ▲225600256-0322 活塞 Piston 8 75700440
23 ▲225600256-0323 防尘圈 Dust-proof ring 8 75700438
24 ▲225600256-0324 进油分泵盖 Cover 2 75700458
25 ▲225600256-0325 封油分泵盖 Cover 2 75700443
