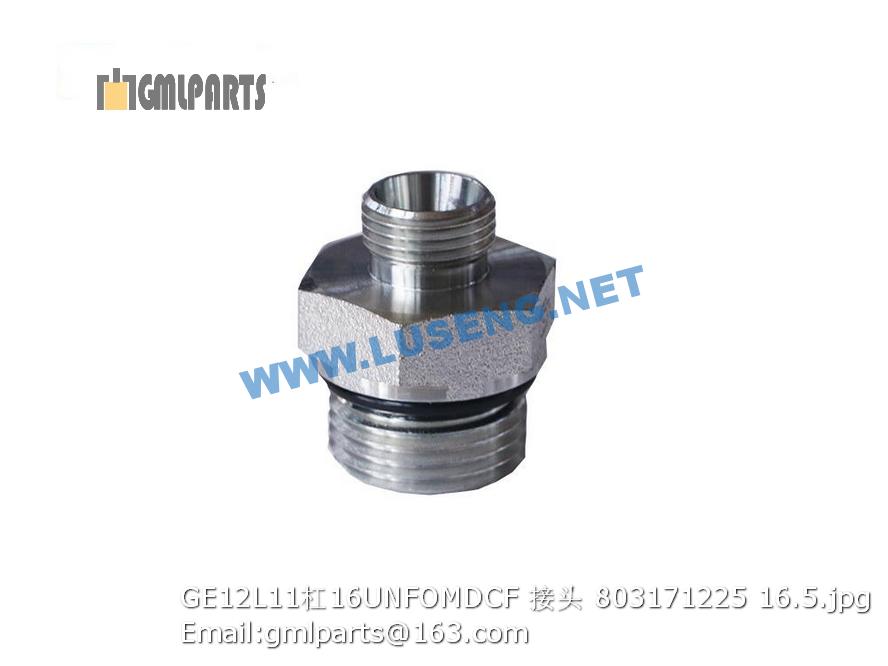

803171225 GE12L11/16UNFOMDCF JOINT XCMG

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 226800227 制动踏板 Brake pedal 1
2 226800226 橡胶踏板套 Rubber foot pedal 1
3 805000065 螺栓 M12×120 Bolt 1 GB/T5782-2000
4 805300020 垫圈12 Washer 1 GB/T97.1-2002
5 226800228 衬套 Bushing 2
6 805600006 销4×30 Pin 2
7 226800225 弹簧 Spring 1
8 805300017 垫圈10 Washer 2 GB/T97.1-2002
9 805200098 螺母 M12 Nut 1 GB/T889.1-2000
10 800901174 离合器主缸 Clutch cylinder 1
11 805600068 销 10×30 Pin 2 GB/T882-2008
12 800901190 接头 Connector 1
13 805200187 螺母 M12 Nut M12 1 GB/T6173-2000
14 805300025 垫圈 12 Washer 2
15 800901182 接头 Connector 2
16 805300024 垫圈14 Washer 1
17 800901169 接头体 Joint body 1
18 800901168 离合器助力缸 Clutch cylinder 1
19 805000680 螺栓 M10×25-10.9 Bolt 4 GB/T5783-2000
20 805300014 垫圈 10 Washer 4 GB/T93-1987
21 225600311 助力缸支架 Adaptor 1
22 800901173 软管总成 Soft pipe 1
23 800513323 含油轴承 Bearing 1
1 ▲226800286-060201 泵体 Pump body 1
2 ▲226800286-060202 回位弹簧 Spring 6
3 ▲226800286-060203 后密封圈 Back seal ring 6
4 ▲226800286-060204 进油阀回位弹簧座 Spring seat 1
5 ▲226800286-060205 进油阀回位弹簧 Spring 1
6 ▲226800286-060206 活塞进油阀 Valve 1
7 ▲226800286-060207 进油阀油封 Oil seal 1
8 ▲226800286-060208 后密封圈 Ring 1
9 ▲226800286-060209 活塞 Piston 1
10 ▲226800286-060210 垫片 Washer 1
11 ▲226800286-060211 挡圈 Collar 1
12 ▲226800286-060212 防尘套 Dustproof set 1
13 ▲226800286-060213 推杆 Lever 1
14 ▲226800286-060214 螺母 Nut 1
15 ▲226800286-060215 推杆叉 Hand spike 1
16 ▲226800286-060216 限向螺钉密封圈 Seal 1
17 ▲226800286-060217 限向螺钉 Limit screw 1
18 860104969 离合器总泵修理包 Tools kit 1
