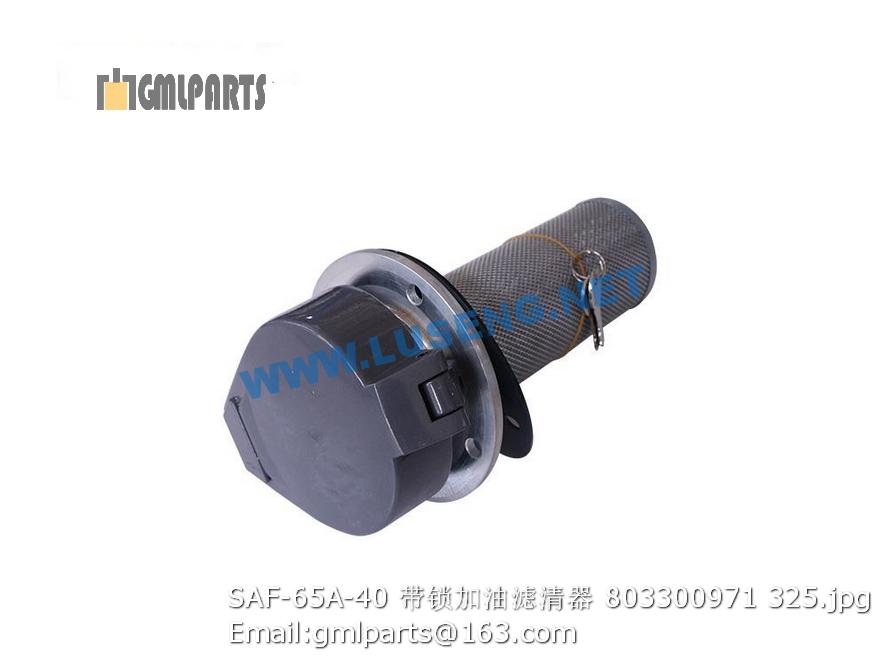

803300971 SAF-65A-40 filter

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 227100317 前梁 Front girder 1
1 227100306 前梁 Front girder 1
2 228700366 调整垫 Shim 2
3 228700368 调整垫 Shim 2
4 805002127 螺栓M24×2×120 Bolt 8 GB/T5785-2000
5 805300021 垫圈24 Washer 8 GB/T97.1-2002
6 227100310 压轮框架 Frame 1
6 227100319 压轮框架 Frame 1
7 805000008 螺栓 M6×12 Bolt 8 GB/T5783-2000
8 805300030 垫圈 6 Washer 6 8 GB/T93-1987
9 228700369 板 Board 2
10 228700370 盖 Cover 2
11 228700371 垫 Washer 6
12 805000616 螺栓 M8×12 Bolt 1 GB/T5783-2000
13 800511347 轴承 GAC85S/K Bearing 4 GB/T304-2002
14 228700391 转向铰接 Steering hitch 1
15 801100336 黄油嘴M10X1 Grease Nipple 3 JB/T7940.1-1995
16 228700372 盖 Cover 1
17 805101805 螺钉M12×16 Bolt 3 GB/T77-2000
18 228700373 V型圈 V-ring 2
19 805000560 螺栓M24×70 Bolt 12 GB/T5782-2000
20 228700374 调整垫 Shim 2
21 228700375 V型圈 V-ring 1
22 805000048 螺栓M12X35 Bolt 12 GB/T5783-2000
23 805300018 垫圈12 washer 12 12 GB/T93-1987
24 228700367 防尘盖 Prevent dust cover 1
25 228700703 刮泥板Ⅰ Scraper 2
26 228700704 刮泥板Ⅱ Scraper 2
27 805301377 垫圈 16(达克罗) Wahser 16
28 805000051 螺栓 M16×40 Bolt 16 GB/T5783-2000
29 228600280 可调刮齿 Scraper 18
30 228600281 固定板 Board 18
1 228700169 油塞 Oil Plug 2
2 805300055 垫圈 30 WASHER 2 JB982-77
3 239900236 透气螺栓 Breath cap 1
4 227001607 加油管 oil pipe 2
5 805000017 螺栓 M8×25 bolt 2 GB/T5783-2000
6 226802286 油位螺栓 Oil Lever Bolt 1
7 801902797 减振块 shock absorber 12
8 227100182 压轮 Drum 1
9 226801837 轴承盖 Bearing plate 1
10 227001357 安装板 mounting plate 2
11 805001925 螺栓M16×45 Bolt 40 GB/T5782-2000
12 805301377 垫圈 16(达克罗) Wahser 16
13 227100242 左偏心轴 Eccentricity shaft 1
14 228302818 轴承座 bearing house 2
15 800511396 振动轴承 Drum bearing 4 NJ322
16 228700161 传动轴 Transmission shaft 1
17 228700157 橡胶套 Rubber sleeve 2
18 227100243 右偏心轴 Eccentricity shaft 1
19 227001358 外轴承座 bearing housing 2
20 226801655 框架轴承座 Frame bearing set 2
21 805000082 螺栓M16×70 Bolt M16×70 16 GB/T5782-2000
22 805200200 螺母 M16 Nut 16 GB/T889.1-2000
23 226802305 马达连接盘 Motor plate 1
24 805000264 螺栓 M12×90 Bolt 15 GB/T5782-2000
25 805300018 垫圈12 washer 12 16 GB/T93-1987
26 805000014 螺栓 Bolt 8
27 226800504 锁片 Lock 8
28 226801658 压板 Cover 1
29 226801647 花键套 Spline sleeve 1
30 803164181 O型圈200×7 O-ring 2 GB/T3452.1-2005
31 800511355 轴承 352124 Bear 2 GB/T299-1995
32 803164194 油封 2
33 803164151 O型圈387×7 O-ring 2 GB/T3452.1-2005
34 805000404 螺栓M12X45 Bolt 48 GB/T5782-2000
35 805200098 螺母 M12 Nut 96 GB/T889.1-2000
36 805301374 垫圈 12(达克罗) Bolt 96
37 805000716 螺栓M12X30 Bolt 8 GB/T5783-2000
38 226801836 压板 Cover palte 1
39 859915662 油封 1
40 805400068 挡圈32 Washer 1 GB/T893-1986
41 805000023 垫圈20 Washer 805000023 48
43 805338246 垫圈16 washer 40 Nord-Lock
44 228300479 调整垫 Shim 4
45 805000078 螺栓M24×120 Bolt 8
46 805300021 垫圈24 Washer 12 GB/T97.1-2002
47 805200194 螺母 M24 Nut 8 GB/T 889.1-2000
48 227000133 减振器支座 torque reducer support 2
49 805002089 螺栓M24X30 Bolt 4
50 805300026 垫圈16 Washer 1
51 226801835 弹簧 Spring 1 SAUER马达
