Description

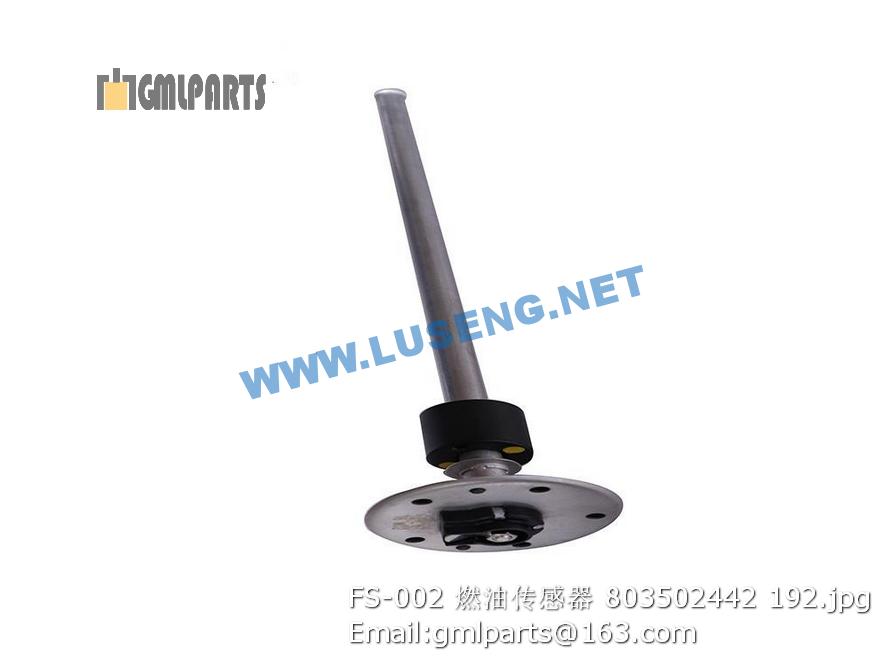

803502442 FS-002 Fuel Sensor XCMG ZL50G
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 231400355 压板 Cover 2
2 805300014 垫圈 10 Washer 4 GB/T93-1987
3 805000727 螺栓M10X25 Bolt 4 GB/T5783-2000
4 800511373 关节轴承 Joint bearing 4
5 805201493 螺母M39×1.5 Nut 2 GB/T812-1988
6 805300050 垫圈39 Washer 2 GB/T858-1988
7 231400368 轴套 Sleeve 2
8 231400356 联结板 Board 1
9 231400367 轴 Shaft 2
10 805300011 垫圈 16 Washer 4 GB/T 93-1987
11 805000051 螺栓 M16×40 Bolt 4 GB/T5783-2000
12 805600352 销12×40 Pin 2 GB/T119-1986
13 229700071 铰接架 1
1 230100206 油位螺栓 Oil lever glass 1
2 805300025 垫圈 12 Washer 1
3 805000014 螺栓 Bolt 40
4 805200098 螺母 M12 Nut 48 GB/T889.1-2000
5 805301374 垫圈 12(达克罗) Bolt 76
6 801902919 减振块 Shock absorber 7
7 229602041 板 Plate 1 XD31.02-1A
8 805000489 螺栓M12X75 Bolt 4 GB/T5782-2000
10 229602042 连接盘 Bracket plate 1 XD31.02-2A
11 229602043 花键套 Splinded sleeve 1 XD31.02-3A
12 230502495 轴承压板 Bearing cover 1
13 805000029 螺栓 M10×40 Bolt M10×40 8 GB/T5783-2000
14 230100213 锁片 locked spacer 4
15 229700221 振动侧支撑板 supporting board 1 XMR301.2.4
16 803201494 透气塞 breath cap 1 C-M12
17 801100314 O形密封圈Φ165×3.55 O-ring 1
18 805000023 垫圈20 Washer 805000023 8
19 229602044 驱动轴外轴承座 Frame bearing 1 XD31.02-4A
20 800511397 框架轴承 bearing 1 JM822049-90N01
21 229700256 轮子焊接 1
22 228700169 油塞 Oil Plug 1
23 805300055 垫圈 30 WASHER 1 JB982-77
24 803164087 密封圈B160X190X15 sealing 1 GB9877.1-88
25 801100250 O形密封圈Φ218×5.30 O-ring 1
26 229602045 轴承座 bearing set 1 XD31.02-5A
27 229700262 偏心轴 eccentric shaft 1
28 229600535 轴承座 Bearing housing 1
29 800514822 调心滚子轴承 Double-row bearing 2 22312-E1-T41A
30 801100251 O形密封圈Φ236×5.30 O-ring 1
31 805000727 螺栓M10X25 Bolt 6 GB/T5783-2000
32 805301373 垫圈10(达克罗) Washer 6
33 229700447 调整垫 Shim 1 XMR301.2-2
34 229700213 驱动侧支撑板 supporting board 1 XMR301.2.1
35 805002029 螺栓M12×50 10.9级 Bolt 7 GB/T5783-2000
36 805000612 螺栓 M16×45 Bolt 5
37 805301377 垫圈 16(达克罗) Wahser 37
38 803009974 驱动马达 Motor bracket 1
39 229602175 联接圈 Joining ring 1
40 229700209 驱动板 drive plate 1 XMR301.2-1
41 805000715 螺栓 M12×25 Bolt 16 GB/T 5783-2000
42 803166321 O形密封圈Φ132X3.55 O-ring 1
43 230100207 轴承盖 Bearing cover 1
44 805000092 螺栓M16×80 Bolt 16 GB/T5783-2000
45 803166351 油封 1
46 805300018 垫圈12 washer 12 1 GB/T93-1987
47 230502674 加油管 Oil hose 1
48 805000017 螺栓 M8×25 bolt 1 GB/T5783-2000
49 805000026 螺栓 M16×45 Bolt 16 GB/T 5783-2000
