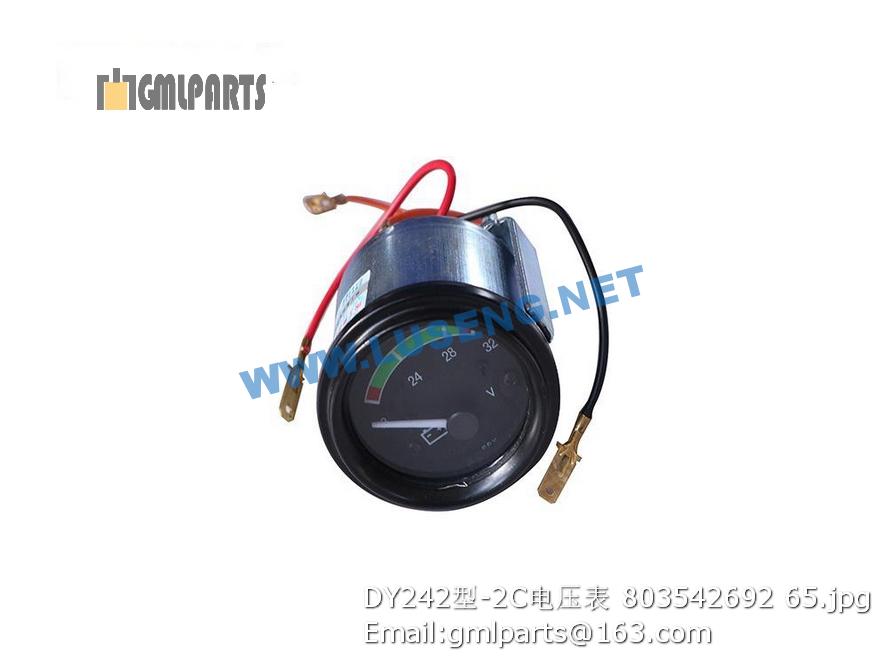

803542692 DY242-2C Voltage gauge

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲800302345-011401 轴(152) Axis(152) 1
2 ▲800302345-011402 O型圈 49×3 ZFN744 O-ring 49×3 ZFN744 1
3 ▲800302345-011403 搭扣密封环 38/35,2×2,0 Hasp sealing ring 38/35,2×2,0 3
4 ▲800302345-011404 螺柱 M8×18 DIN939 8,8 Stud M8×18 DIN939 8,8 3
5 ▲800302345-011405 厌氧胶 NR,241/50ML 按A/R3 ZFN 164 Anaerobic NR,241/50ML According A/R3 ZFN 164 3
6 ▲800302345-011406 螺母 M8 DIN934 8 Screw nut M8 DIN934 8 3
7 ▲800302345-011407 调整垫片 Adjusting washer 1
8 ▲800302345-011408 承磨垫DUP Order of the sanding pad DUP 1
9 ▲800302345-011409 止动垫片 Washer 1
10 ▲800302345-011410 齿轮(KR) Z/mn/α=44/4,0/20°/35 Gear(KR) Z/mn/α=44/4,0/20°/35 1
11 ▲800302345-011411 承磨垫DUP Order of the sanding pad DUP 1
12 ▲800302345-011412 滚柱轴承 K35×45×20 Roller bearing K35×45×20 2
13 ▲800302345-011413 承压板 Bearing plate 2
14 ▲800302345-011414 活塞 Piston 2
15 ▲800302345-011415 异形密封环 φ150×5,72×2,5 Profiled sealing ring φ150×5,72×2,5 2
16 ▲800302345-011416 止动片 Stopper piece 1
17 ▲800302345-011417 止动片 Stopper piece 1
18 ▲800302345-011418 异形密封环 φ60×5,72×2,5 Profiled sealing ring φ60×5,72×2,5 2
19 ▲800302345-011419 压力弹簧 6,5×66,07×48,6 Pressure spring 6,5×66,07×48,6 2
20 ▲800302345-011420 导向环 Guide ring 4
21 ▲800302345-011421 挡圈 AV55 FA.ORBIS Collar AV55 FA.ORBIS 2
22 ▲800302345-011422 导向环 Guide ring 2
23 ▲800302345-011423 滚针轴承 F3526 35×42×26 FA.Torrington Needle roller bearing F3526 35×42×26 FA.Torrington 1
24 ▲800302345-011424 弹性挡圈 NT-01364 Circlip NT-01364 1
25 ▲800302345-011425 滚针轴承 F4026 40×47×26 FA.Torrington Needle roller bearing F4026 40×47×26 FA.Torrington 1
26 ▲800302345-011426 弹性挡圈 NT-01363 Circlip NT-01363 1
27 ▲800302345-011427 弹性挡圈 Circlip 2
28 ▲800302345-011428 承磨垫DUP Order of the sanding pad DUP 1
29 ▲800302345-011429 齿轮(K2)Z/mn/α=26/60(4,5/24):19/39(6,0/24°) Gear(K2)Z/mn/α=26/60(4,5/24):19/39(6,0/24°) 1
30 ▲800302345-011430 滚柱轴承 K45×75×32,2/24,4 Roller bearing K45×75×32,2/24,4 1
31 ▲800302345-011431 挡圈 WA-1923 Collar WA-1923 3
32 ▲800302345-011432 离合器外壳 Clutch housing 1
33 ▲800302345-011433 Kr离合器 间隙 2,2-2,4mm Kr Clutch Clearance2,2-2,4mm 1
34 ▲800302345-011434 外摩擦片 D=177,5 S=2,0 Outer friction plate D=177,5 S=2,0 9
35 ▲800302345-011435 内摩擦片S=2,0 Inner friction plate S=2,0 4
36 ▲800302345-011436 内摩擦片S=2,5 Inner friction plate S=2,5 3
37 ▲800302345-011437 内摩擦片S=2,0/2,5 Inner friction plate S=2,0/2,5 1
38 ▲800302345-011438 K2离合器 间隙 2,2-2,4mm K2 Clutch Clearance2,2-2,4mm 1
39 ▲800302345-011439 外摩擦片 D=177,5 S=2,0 Outer friction plate D=177,5 S=2,0 8
1 ▲800302345-011501 轴(153) Axis(153) 1
2 ▲800302345-011502 O型圈 49×3 ZFN744 O-ring 49×3 ZFN744 1
3 ▲800302345-011503 搭扣密封环 38/35,2×2,0 Hasp sealing ring 38/35,2×2,0 3
4 ▲800302345-011504 螺柱 M8×18 DIN939 8,8 Stud M8×18 DIN939 8,8 2
5 ▲800302345-011505 厌氧胶NR,241/50ML 按A/R3 ZFN 164 Anaerobic NR,241/50ML According A/R3 ZFN 164 2
6 ▲800302345-011506 螺母 M8 DIN934 8 Screw nut M8 DIN934 8 2
7 ▲800302345-011507 调整垫片 Adjusting washer 1
8 ▲800302345-011508 承磨垫DUP Order of the sanding pad DUP 1
9 ▲800302345-011509 止动垫片 Washer 1
10 ▲800302345-011510 套 Set 1
11 ▲800302345-011511 承磨垫DUP Order of the sanding pad DUP 1
12 ▲800302345-011512 承压板 Bearing plate 1
13 ▲800302345-011513 活塞 Piston 1
14 ▲800302345-011514 异形密封环 φ109×5,72×2,5 Profiled sealing ring φ109×5,72×2,5 1
15 ▲800302345-011515 止动片 Stopper piece 1
16 ▲800302345-011516 止动片 Stopper piece 1
17 ▲800302345-011517 异形密封环 φ60×5,72×2,5 Profiled sealing ring φ60×5,72×2,5 1
18 ▲800302345-011518 压力弹簧 6,5×66,07×48,6 Pressure spring 6,5×66,07×48,6 1
19 ▲800302345-011519 导向环 Guide ring 2
20 ▲800302345-011520 挡圈 AV55 FA.ORBIS Collar AV55 FA.ORBIS 1
21 ▲800302345-011521 导向环 Guide ring 1
22 ▲800302345-011522 滚针轴承 35×42×20 Needle Roller Bearings 35×42×20 1
23 ▲800302345-011523 弹性挡圈 NT-01364 Circlip NT-01364 1
24 ▲800302345-011524 滚针轴承 F4042 40×47×20 FA.Torrington Needle Roller Bearings F4042 40×47×20 FA.Torrington 1
25 ▲800302345-011525 弹性挡圈 NT-01363 Circlip NT-01363 1
26 ▲800302345-011526 弹性挡圈 Circlip 1
27 ▲800302345-011527 承磨垫DUP Order of the sanding pad DUP 1
28 ▲800302345-011528 垫片 S=3,0/φ48×φ63 Gasket S=3,0/φ48×φ63 1
29 ▲800302345-011529 齿轮(K3) Z/mn/α=39/6.0/24° Gear (K3) Z/mn/α=39/6.0/24° 1
30 ▲800302345-011530 滚针组 45×53×27,8 Needle Group 45×53×27,8 1
31 ▲800302345-011531 滚柱LRB15,6×31 SORT,0BIS-6 Roller LRB15,6×31 SORT,0BIS-6 12
32 ▲800302345-011532 离合器外壳 Clutch housing 1
