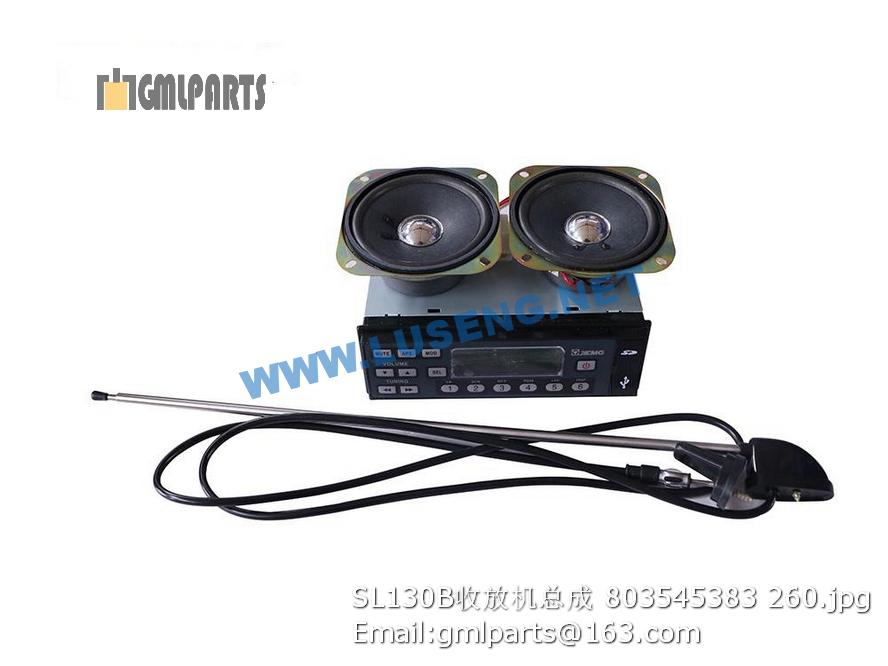

803545383 SL130B radio

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 227100435 前梁 Front girder 1
1 227100438 前梁 Front girder 1 凸块轮
1 227100661 前梁 Front girder 1
2 226802714 调整垫 Shim 2
3 226802715 调整垫 Shim 2
4 805002127 螺栓M24×2×120 Bolt 8 GB/T5785-2000
5 805300021 垫圈24 Washer 8 GB/T97.1-2002
6 226803475 压轮框架 Drum frame 1
6 227100439 压轮框架 Frame 1 凸块轮
6 226802712 压轮框架 Drum frame 1
7 805000008 螺栓 M6×12 Bolt 8 GB/T5783-2000
8 805300030 垫圈 6 Washer 6 8 GB/T93-1987
9 228700369 板 Board 2
10 228700370 盖 Cover 2
11 228700371 垫 Washer 6
12 805000616 螺栓 M8×12 Bolt 1 GB/T5783-2000
13 800511347 轴承 GAC85S/K Bearing 4 GB/T304-2002
14 228700391 转向铰接 Steering hitch 1
15 801100336 黄油嘴M10X1 Grease Nipple 3 JB/T7940.1-1995
16 228700372 盖 Cover 1
17 805101805 螺钉M12×16 Bolt 3 GB/T77-2000
18 228700373 V型圈 V-ring 2
19 805000560 螺栓M24×70 Bolt 12 GB/T5782-2000
20 228700374 调整垫 Shim 2
21 228700375 V型圈 V-ring 1
22 805000048 螺栓M12X35 Bolt 12 GB/T5783-2000
23 805300018 垫圈12 washer 12 12 GB/T93-1987
24 228700367 防尘盖 Prevent dust cover 1
25 228700703 刮泥板Ⅰ Scraper 2
26 228700704 刮泥板Ⅱ Scraper 2
27 805301377 垫圈 16(达克罗) Wahser 16
28 805000051 螺栓 M16×40 Bolt 16 GB/T5783-2000
29 228600280 可调刮齿 Scraper 18
30 228600281 固定板 Board 18
1 226802286 油位螺栓 Oil Lever Bolt 1
2 805300055 垫圈 30 WASHER 4 JB982-77
3 228700169 油塞 Oil Plug 4
4 859915662 油封 1
5 805301374 垫圈 12(达克罗) Bolt 96
6 801902779 减振块 Shock absorber 12
7 227100467 压轮 DRUM 1
8 226801837 轴承盖 Bearing plate 1
9 805000054 螺栓M16X60 Bolt 24 GB/T5782-2000
10 805301377 垫圈 16(达克罗) Wahser 64
11 228600243 左偏心轴 Left eccentricity shaft 1
12 805000528 螺栓M16×40 Bolt 24 GB/T5783-2000
13 228702923 轴承座 bearing housing 2
14 800511294 轴承NJ324 Vibration bearing 4
15 228700161 传动轴 Transmission shaft 1
16 228600244 右偏心轴 Right eccentricity shaft 1
17 226801654 外轴承座 Bearing housing right 2
18 226801655 框架轴承座 Frame bearing set 2
19 226801656 安装板 Mounting Plate 2
20 805000637 螺栓M16X85 Bolt 16 GB/T5782-2000
21 805200200 螺母 M16 Nut 16 GB/T889.1-2000
22 226802305 马达连接盘 Motor plate 1
23 805000264 螺栓 M12×90 Bolt 15 GB/T5782-2000
24 805300018 垫圈12 washer 12 16 GB/T93-1987
25 805000404 螺栓M12X45 Bolt 8 GB/T5782-2000
26 226800504 锁片 Lock 8
27 226801658 压板 Cover 1
28 803164181 O型圈200×7 O-ring 2 GB/T3452.1-2005
29 227001507 弹簧 Spring 1 开式
30 805000032 螺栓M12X60 Bolt 48 GB/T5782-2000
31 805200098 螺母 M12 Nut 96 GB/T889.1-2000
32 227001359 花键套 Spline sleeve 1
33 800511355 轴承 352124 Bear 2 GB/T299-1995
34 803164194 油封 2
35 803164136 O型圈412×7 O-ring 2 GB/T3452.1-2005
36 228700157 橡胶套 Rubber sleeve 2
37 239900236 透气螺栓 Breath cap 1
38 801100339 油杯 M10×1 801100339 2 JB/T7940.2-1995
39 226801836 压板 Cover palte 1
40 805000716 螺栓M12X30 Bolt 8 GB/T5783-2000
41 805000023 垫圈20 Washer 805000023 48
44 228700155 调整垫 Shim 4
45 805000060 螺栓M24×130 Bolt 24
46 805300021 垫圈24 Washer 28 GB/T97.1-2002
47 805200194 螺母 M24 Nut 24 GB/T 889.1-2000
48 227100169 减振器支座 Torque reducer supporter 4 A
48 227100657 减震器支座 Torque reducer supporter 4
49 805000282 螺栓M24×55 Bolt 4 GB/T5783-2000
50 805300026 垫圈16 Washer 1
51 805400068 挡圈32 Washer 1 GB/T893-1986
