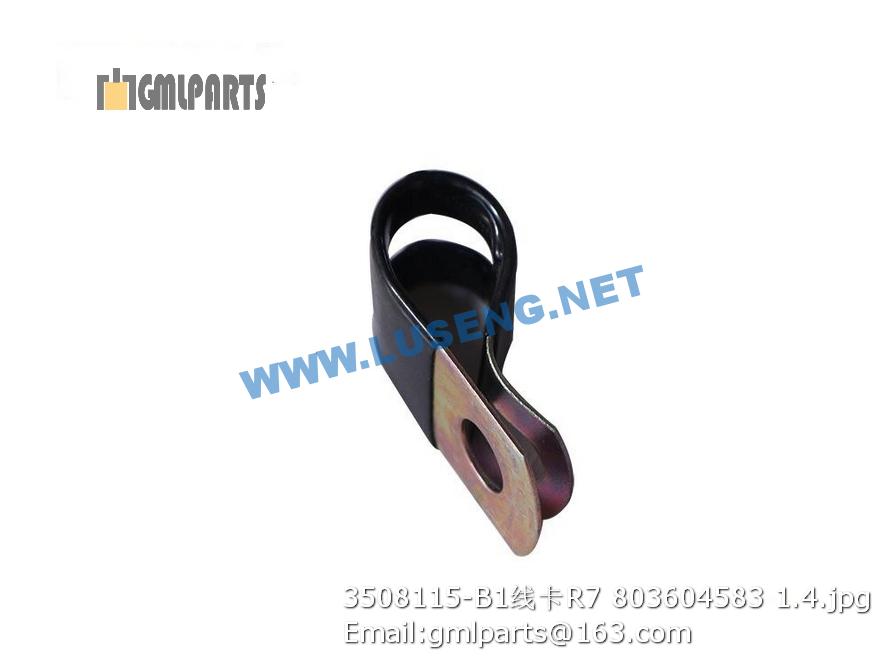

803604583 3508115-B1 CLAMP R7

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 800305183 变速操纵系 Shift Control 1
2 805000029 螺栓 M10×40 Bolt M10×40 2 GB/T5783-2000
3 805301284 垫圈10 Lock washer 2 GB/T93-1987
4 805002246 双头螺柱M10X180 1 GB/T901-1988
5 805200048 螺母 M10 Nut 2 GB/T6170-2000
6 250200175 叉接头M10-Φ8 Joint 2
7 805601613 销轴 B8×32 Pin 2 GB/T882-1986
8 805600001 销 Pin 2 GB/T91-2000
9 805201502 螺母 M8 2
10 805300069 垫圈 8 Washer 8 2
11 252903816 轴 Shaft 1
12 252903825 支架 Support 1
13 800511271 轴承6001-2RS Bearing 2 GB/T276-1994
14 250200554 毛毡座 Felt Seat 2
15 805400011 挡圈28 Ring 2 GB/T893.1-1986
16 252903817 板 Board 2
18 805200290 螺母M6 Nut 2 GB/T 889.1-2000
1 251801141 车门玻璃锁止器 Glass door lock 4
2 252901404 左车门玻璃 Windscreen 1
3 252901405 右车门玻璃 Windscreen 1
4 252900682 左后挡玻璃 Windscreen 1
5 252900683 右后挡玻璃 Windscreen 1
6.1 252900684 后玻璃 Windscreen 1
6.2 252900764 后玻璃 Windscreen 1 不带喷头
7 800101440 碰锁 Spring Lock 1 NBS510D
8 800302273 锁盖 Lock Hoop 1
9 253000128 缓冲头 SHOCK ABSORBER 1
10 801503840 502A门锁（合金把手） Handle 1
11 252900681 前玻璃 Windscreen 1
12 801902760 后视镜 Rear view mirror 2 XGHJ410X190-W
13 252900680 右前挡玻璃 Windscreen 1
14 252900678 前围右侧玻璃 Windscreen 1
15 252900677 前围左侧玻璃 Windscreen 1
16 252900679 左前挡玻璃 Windscreen 1
1 ▲500K-100301 前下包 Shell 1 RC1400-01
2 ▲500K-100302 仪表上盖 Cover 1 RC1400-02
3 ▲500K-100303 左大包 Shell 1 RC1400-03
4 ▲500K-100304 软轴 Flex Shaft 1 LJ134G×1550
5 860114362 方向盘 Steering Wheel 1 RC1400-04
6 860110871 龙马开关 Switch 1 NY-LJ
7 ▲500K-100305 右大包 Shell 1 RC1400-05
8 ▲500K-100306 调节手柄 Handle 1 RC1400-06
9 ▲500K-100307 翘板开关盒 Switch Control Box 1 RC1400-07
10 ▲500K-100308 开关盒下盖 Cover 1 RC1400-08
11 ▲500K-100309 后下包 Shell 1 RC1400-09
12 ▲500K-100310 方向机支架 Bracket 1 RC3400-1010
1 ▲500K-100401 转轴组件 Shaft 1 RC3400-1010-01
2 ▲500K-100402 上轴承座 Bearing Block 1 RC3400-1010-02
3 ▲500K-100403 轴承16006 Bearing 2 GB/T276-1994
4 ▲500K-100404 轴承盖板 Cover 1 RC3400-1010-03
5 ▲500K-100405 上支架 Bracket 1 RC3400-1010-04
6 ▲500K-100406 小支架组件 Bracket 1 RC3400-1010-05
7 ▲500K-100407 27固定套 Fixed Tube 2 RC3400-1010-06
8 ▲500K-100408 18固定套 Fixed Tube 2 RC3400-1010-07
9 ▲500K-100409 把手组件 Handle 1 RC3400-1010-08
10 ▲500K-100410 拉簧 Tension Spring 3 RC3400-1010-09
11 ▲500K-100411 转板螺栓 Bolt 1 RC3400-1010-10
12 ▲500K-100412 旋转轴压板 Plate 2 RC3400-1010-11
13 ▲500K-100413 下支架 Bracket 1 RC3400-1010-12
14 ▲500K-100414 35固定套 Fixed Tube 1 RC3400-1010-13
15 ▲500K-100415 26固定套 Fixed Tube 1 RC3400-1010-14
16 ▲500K-100416 底板 Bottom-Board 1 RC3400-1010-15
17 ▲500K-100417 底座组合 Bearer 1 RC3400-1010-16
18 ▲500K-100418 大包壳固定板 Plate 1 RC3400-1010-17
19 ▲500K-100419 滑杆组件 Sliding Rod 1 RC3400-1010-18
20 ▲500K-100420 滑槽 Slideway 1 RC3400-1010-19
21 ▲500K-100421 上齿板 Plate 2 RC3400-1010-20
22 ▲500K-100422 加强板 Plate 2 RC3400-1010-21
23 ▲500K-100423 转轴 Shaft 1 RC3400-1010-22
24 ▲500K-100424 转板螺栓II Bolt 1 RC3400-1010-23
25 ▲500K-100425 旋转轴小螺栓 Bolt 2 RC3400-1010-24
26 ▲500K-100426 15固定套 Fixed Tube 2 RC3400-1010-25
27 ▲500K-100427 15固定套支撑板 Plate 2 RC3400-1010-26
28 ▲500K-100428 侧支架 Bracket 1 RC3400-1010-27
29 ▲500K-100429 下轴承座 Bearing Block 1 RC3400-1010-28
30 ▲500K-100430 M6螺母 Nut 1 GB/T6170-2000
31 ▲500K-100431 M6×16螺钉 Screw 1 GB/T823
32 ▲500K-100432 下齿板 Plate 2 RC3400-1010-29
33 ▲500K-100433 M6×12螺栓 Bolt 4 GB/T70.1-2000
34 ▲500K-100434 拉簧 Tension Spring 2 RC3400-1010-30
35 ▲500K-100435 20固定套 Fixed Tube 2 RC3400-1010-31
36 ▲500K-100436 档圈 Check Ring 2 GB/T894.1-1986
37 ▲500K-100437 弹簧挂勾柱 Spring Hook Column 1 RC3400-1010-32
38 ▲500K-100438 下轴承座盖板 Cover 1 RC3400-1010-33
39 ▲500K-100439 上齿板支撑座 Bearer 2 RC3400-1010-34
40 ▲500K-100440 旋转轴螺栓 Bolt 2 RC3400-1010-35
41 ▲500K-100441 拉簧 Tension Spring 1 RC3400-1010-36
42 ▲500K-100442 垫圈 Washer 2 RC3400-1010-37
