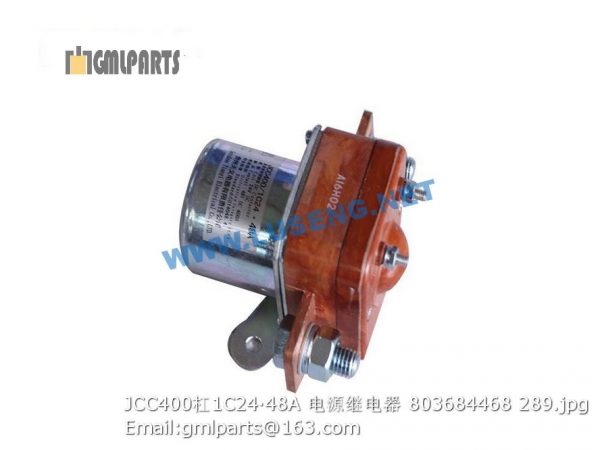

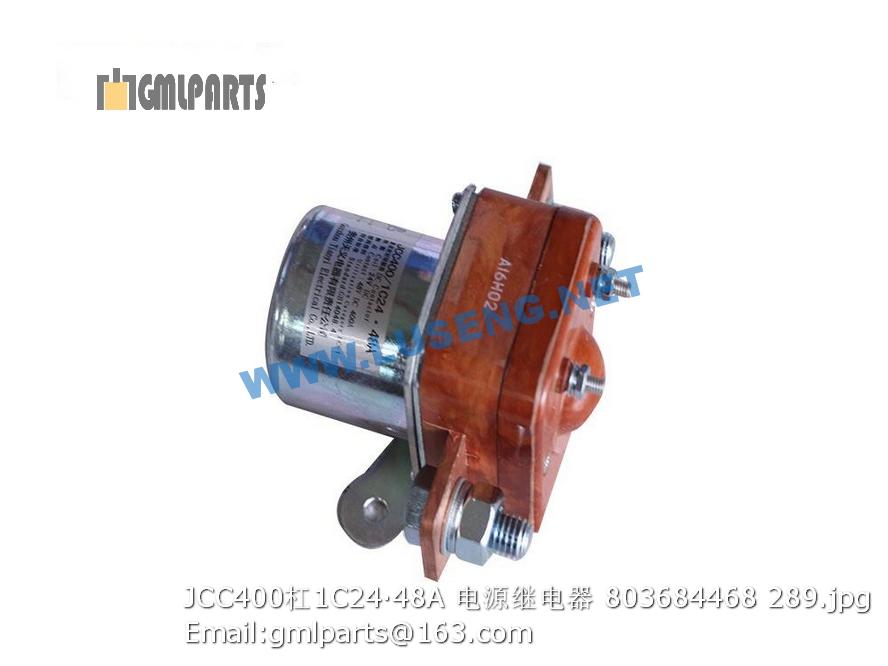

803684468 JCC400/1C24·48A relay XCMG

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲226500375-041201 主传动齿轮 Pinion 1
2 ▲226500375-041202 被动齿轮 Gear 1
3 ▲226500375-041203 螺母M14×1.5 Nut 12
4 ▲226500375-041204 螺栓M14×1.5×50 Bolt 12
5 ▲226500375-041205 小螺伞轴承142807K Bearing 1
6 ▲226500375-041206 半壳轴承47686 Bearing 2
7 ▲226500375-041207 铁丝￠1.8*600 Thread of Iron 2
8 ▲226500375-041208 调整螺母 Adjusting Nut 2
9 ▲226500375-041209 铜套 Copper Copy 1
10 ▲226500375-041210 止退螺栓M27×2×95 Bolt 1
11 ▲226500375-041211 花垫 Lock Plate 1
12 ▲226500375-041212 螺母M27×2 Nut 1
13 ▲226500375-041213 油封FB80*100*10 Oil Seal 1
14 ▲226500375-041214 油封FB80*100*10 Oil Seal 1
15 ▲226500375-041215 垫圈12 Washer 1
16 ▲226500375-041216 密封盖螺栓M12×1.5×55 Bolt 1
17 ▲226500375-041217 密封盖螺栓M14×1.5×55 Bolt 7
18 ▲226500375-041218 垫圈14 Washer 7
19 ▲226500375-041219 角齿螺母M52*1.5 Lock Nut 1
20 ▲226500375-041220 角齿垫片 Washer 1
21 ▲226500375-041221 联接法兰 Flange 1
22 ▲226500375-041222 防尘罩 Deflector 1
23 ▲226500375-041223 密封盖 Cover 1
24 ▲226500375-041224 轴承座-S Bearing Cage 1
25 ▲226500375-041225 托架 Carrier Case 1
26 ▲226500375-041226 小螺伞轴承31313LB Bearing 1
27 ▲226500375-041227 调整垫片组 Adjusting Washers 0
28 ▲226500375-041228 锁紧片螺栓M10×1×20 Bolt 2
29 ▲226500375-041229 锁紧片 Lock Plate 2
30 ▲226500375-041230 小螺伞轴承31314HI Bearing 1
31 ▲226500375-041231 轴承隔套 Adjusting Sleeves 0
32 ▲226500375-041232 轴挡φ90 Circlip 1
33 ▲226500375-041233 轴承盖 Cover 2
34 ▲226500375-041234 轴承盖螺栓M22×2.5×99 Bolt 4
35 ▲226500375-041235 差速器总成 Diff. Assembly 1
36 ▲226500375-041236 调整隔套垫片 Washer 0
37 ▲226500375-041237 垫片10 Washer 2
1 ▲226500375-04123501 差速器壳 Diff.Case 1
2 ▲226500375-04123502 半轴齿轮垫 Thrust Washer 2
3 ▲226500375-04123503 半轴齿轮 Side Gear 2
4 ▲226500375-04123504 十字轴 Spider 1
5 ▲226500375-04123505 差速器壳 Diff.Case 1
6 ▲226500375-04123506 螺母M16*1.5 Nut 8
7 ▲226500375-04123507 行星轮垫 Thrust Washer 4
8 ▲226500375-04123508 行星齿轮 Side pinion 4
9 ▲226500375-04123509 凸缘螺栓 Bolt 8
